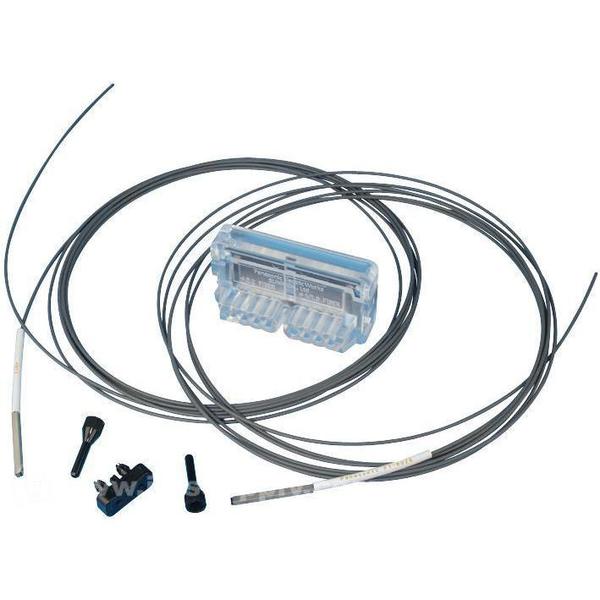

PANASONIC FT-KV26 FIBER OPTIC CABLE
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-KV26
IMS Product Code: 1761885
Packaging: Sold Individually
Description:
Panasonic FT-KV26 Fiber Optic Cable
Thru-beam type fiber optic cable with narrow beam and side-view sensing direction
Specifications
- Sensing mode: Thru-beam type
- Fiber type: Narrow beam
- Fiber head diameter: 1.5x2 mm
- Fiber head length: 20 mm
- Beam direction: Side-view
- Beam axis diameter/Spot diameter: dia. 1 mm
- Fiber cable length: 2 m
- Allowable bending radius: R2 mm
- Free-cut: Available
- Environmental resistance: IP30
- Ambient temperature range: -40 to 80 degrees
- Sensing range (STD): 710 mm (FX-500 series)
- Sensing range (HYPR): 2,500 mm (FX-500 series)
- Series: FT
- Type: Thru-Beam
- Dimensions: 1.5 (Dia.) x 20 mm
- Operating temperature range: -40 to 60 degrees C
- Terminal type: Cable
