More Views

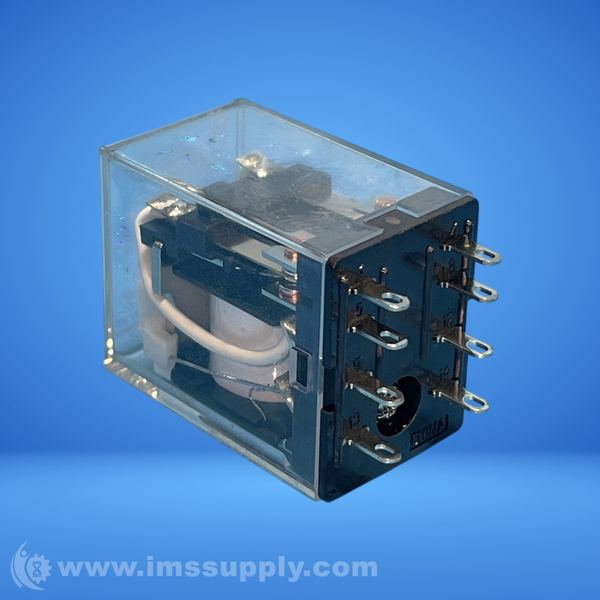

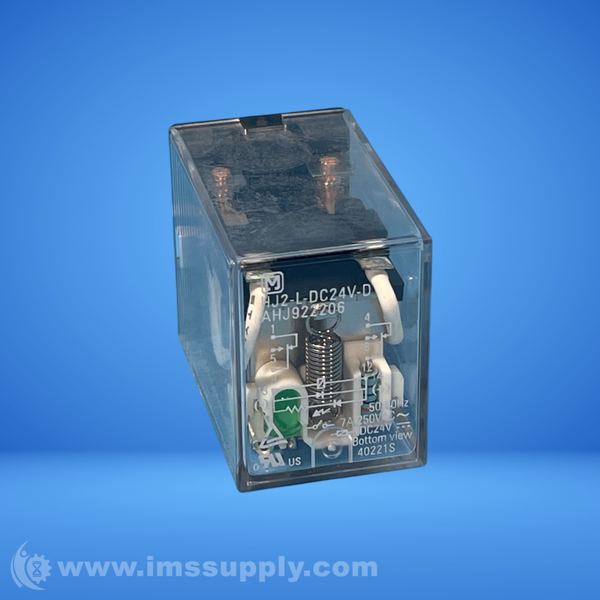

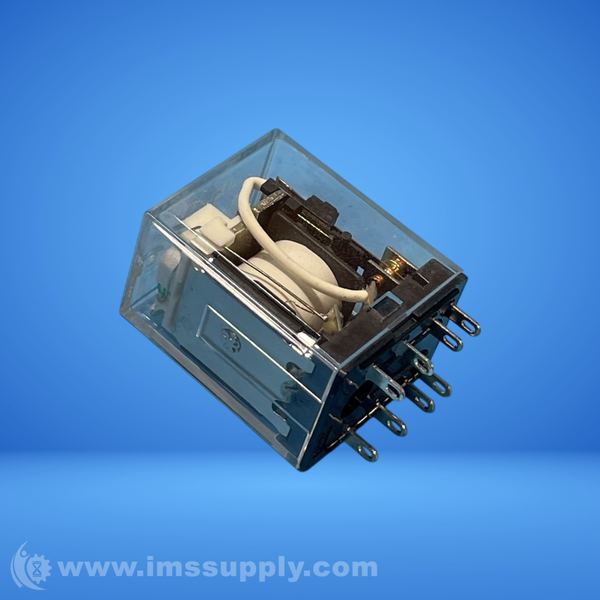

PANASONIC HJ2-L-DC24V-D 2 FORM C RELAY
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: HJ2-L-DC24V-D
IMS Product Code: 2075869
Packaging: Sold Individually
Description:
Panasonic HJ2-L-DC24V-D 2 Form C Relay
2 Form C relay with 7A 250V AC switching capacity, 24V DC coil voltage, and LED indication.
Specifications
- Coil Voltage: 24V DC
- Contact Arrangement: 2 Form C
- Nominal Switching Capacity: 7A 250V AC, 7A 30V DC
- Min. Switching Capacity: 1mA 5V DC
- With Diode: Yes
- Without Au Plating: Yes
- With LED Indication: Yes
- Protective Construction: Dust Cover Type
- Terminal Arrangement: Plug-in Terminal
- Type of Operation: BBM
- Contact Material: Ag
- Expected Life (Mechanical): 2x10^7
- Expected Life (Electrical): 1x10^5
- Breakdown Voltage (Contact-Contact): 1000Vrms
- Breakdown Voltage (Contact-Coil): 2000Vrms
- Ambient Temperature: -40 to +70 degrees
- Operating Function: Single Side Stable Type
