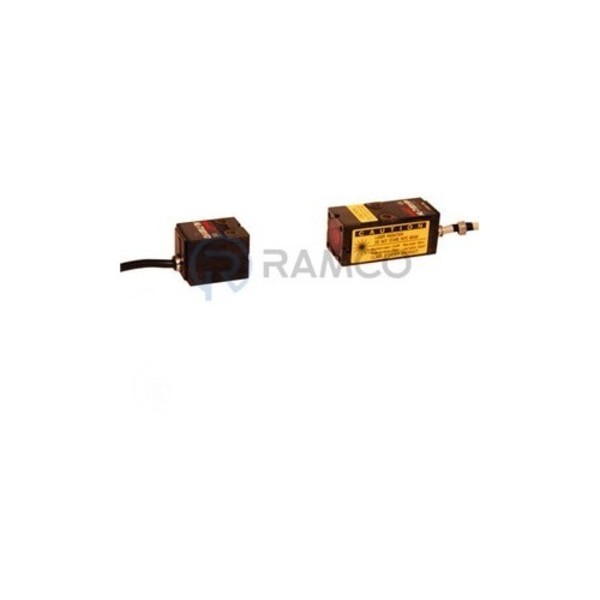

PANASONIC HL-T1001F LASER SENSOR 1MM WIDE BEAM
Starting At: $852.15
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: HL-T1001F
IMS Product Code: 1973235
Packaging: Sold Individually
Description:
Panasonic HL-T1001F Laser Sensor 1mm Wide Beam, Ultra-compact Laser Collimated Beam Sensor, 1mm Diameter X 2m Laser Beam Provides High Resolution Of 4 Micro Meter, Min Sensing Object 8 Micron Diameter, Requires Separate Amplifier (not Included), 500 Mm Cable For Connection To HL-AC1 Amplifier (order Separately)
Specifications:
- Series: HL-T1
- Sensing Mode: Laser Thrubeam Small Spot
- Self-Contained or Amp-Separate: Sensor Less Controller
- Sensing Beam: Visible Red Laser Beam
- Beam Details: Red Semiconductor Laser, Wavelength 650nm, 0.2mW Max Output, Class II FDA, Class I IEC/JIS
- Optical Method: Thrubeam Spot
- Optical Beam Type: Collimated beam Spot Thrubeam
- Beam Size: Ø 1mm Line Spot
- Measurement Range: 2 meter
- Repeat Accuracy: 4.0µm
- Measurement Range: 0 to 2 meter
- Supply Voltage Details: 12 to 24 VDC
- Fastest Sample Rate: 150µs
- Best Response Time: See Sample Rate
- Controller Features: Large dual digit display of measurement and judgement value. 13 sample rates from 1 to 4,096. Digital outputs for HI-GO-LO control. Linear analog in both current and voltage. Option calculation module available for add/subtract of two controllers/sensors.
- Sensor Features: Narrow laser beam of Ø1mm provides minimum sensing object Ø8µm with 4µm repeatability. Measuring cycle of 150µs
- Control Output & Communication: Digital, Analog
- Digital Output Details: 3 each NPN or 3 each PNP with HL-AC1(P) Controller
- Analog Output Details: 4 to 20mA & ±4V with HL-AC1(P) Controller
- Operating Temperature: 0 to +50° C
- Material: Enclosure: Polyetherimide enclosure, glass front cover
- IP Rating: IP40
- Connection Type: Quick disconnect
- Connection Method: Pigtail 500mm with Molex type connector
- Item Weight: 0.10 lbs per EA
