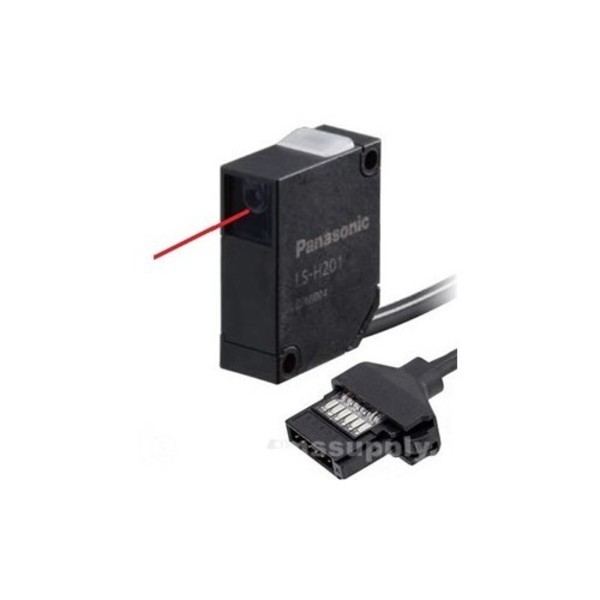

PANASONIC LS-H201 COAXIAL REFLECTIVE SENSOR HEAD

MSRP: $260.00
Starting At: $253.50

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: LS-H201
IMS Product Code: 1975103
Packaging: Sold Individually

Description:

Panasonic LS-H201 Coaxial Reflective Sensor Head, for LS-500 Series, 2M Cable, Sensing Distance up to 750mm (29.528 in)

Specifications:

  • Series: LS-500
  • Sensing Mode: Diffuse
  • Sensing Mode Features: Opaque & Translucent Target Detection
  • Sensor Body Type: Compact
  • Sensor Body Feature: Side Screw Mounting
  • Sensor Type: Amplifier Separate Type
  • Sensitivity Setting Type: Push Button Teach
  • Display Type: Digital Display Remote Amp
  • Sensor Features: Amp separate diffuse laser sensing head with coaxial beam. Up to 700mm distance with super compact Ø2mm laser beam spot. Use with LS-500 style digital amplifer. Digital Amplifier features red LED display and include external input, 4-20ma output, 2-digital ouputs and timing modes.
  • Laser Beam Spot Size: ø 2mm
  • Laser Light Source Details: Red Semiconductor laser - Class 1 FDA, 660nm
  • Laser Output: 2 mW
  • Supply Voltage Details: 12 to 24 VDC Separate Amp
  • Setting Distance: 750mm
  • Control Output: Analog, NPN or PNP
  • Output Details: 4-20mA and 2 each NPN or PNP per Amplifier selected
  • Output Operation Mode: Light-On/Dark-On selectable
  • Construction: PBT enclosure, glass lens
  • Temperature Rating: -10º to +55º C
  • Protection Rating: IP40
  • Connection Type: Quick Disconnect
  • Connection Detail: Cable 2m with Fixed Connector
  • Item Weight: 0.20 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Panasonic. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
