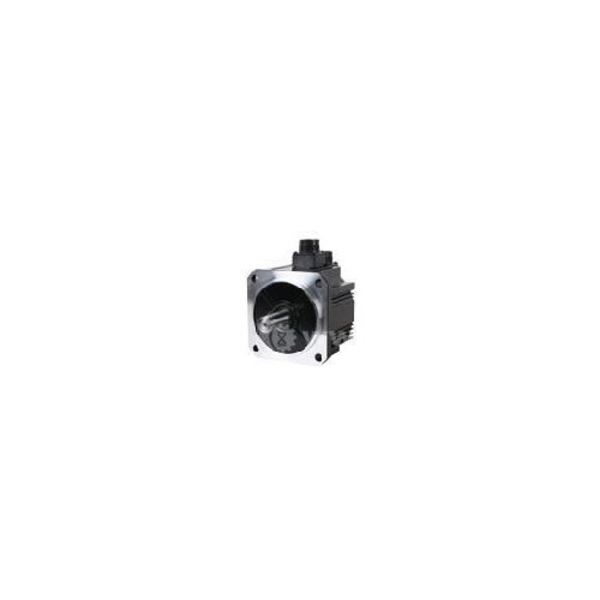

PANASONIC MDMF152L1G8 AC SERVO MOTOR- (A6 SERIES - MDM)
Starting At: $1,322.10
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MDMF152L1G8
IMS Product Code: 1974891
Packaging: Sold Individually
Description:
Panasonic AC Servo Motor- (A6 series - MDM) - Supply voltage 200Vac - Rated power 1.5kW - Rotational speed (Rated) 2000rpm - with 23bit Absolute rotary encoder - with Keyway shaft; center tap - with Oil seals with protective lip - with (Encoder terminal) JN2 connector
Functions:
- Keyway shaft; center tap
- Oil seals with protective lip
- Net Width (mm): (Flange) 130mm
- Connection type: (Encoder terminal) JN2 connector
- Mechanical withstand:
- (During assembly; Radial load; P-direction) 980N
- (During assembly; Thrust load; A-direction) 588N
- (During assembly; Thrust load; B-direction) 686N
- (During operation; Radial load; P-direction) 490N
- (During operation;Thrust load; A; B-direction) 196N
- Operating torque:
- (Rated torque) 7.16N.m
- (Continuous stall torque) 7.52N.m
- (Momentary max Peak torque) 21.5N.m
- Moment of inertia: 0.00916kg.m²
- Net weight: 5.7kg
- Rotational speed:
- (Rated) 2000rpm
- (Max) 3000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
