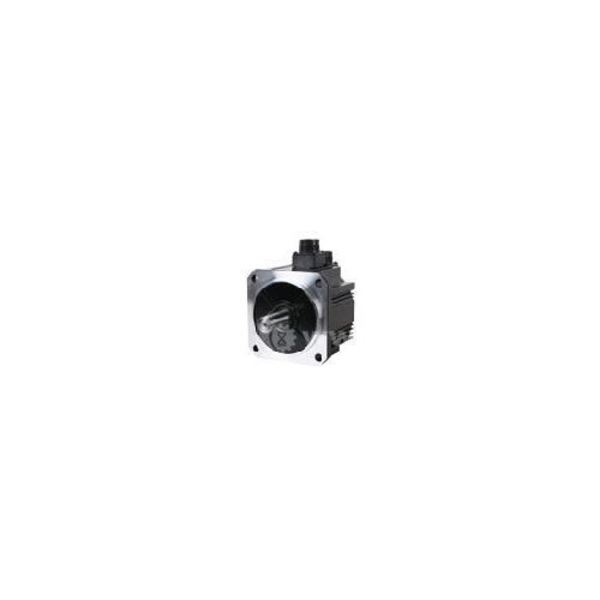

PANASONIC MDMF402L1H8 AC SERVO MOTOR- (A6 SERIES - MDM)
Starting At: $2,236.65
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MDMF402L1H8
IMS Product Code: 1975154
Packaging: Sold Individually
Description:
Panasonic AC Servo Motor- (A6 series - MDM) - Supply voltage 200Vac - Rated power 4kW - Rotational speed (Rated) 2000rpm - with 23bit Absolute rotary encoder - with Keyway shaft; center tap - with Oil seals with protective lip - with (Encoder terminal) JN10 connector
- Functions:
Keyway shaft; center tap
Brake
Oil seals with protective lip - Net Width (mm): (Flange) 176mm
- Current consumption: (Brake excitation) 1.161-1.419A
- Connection type: (Encoder terminal) JN10 connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 1666N
(During assembly; Thrust load; A-direction) 784N
(During assembly; Thrust load; B-direction) 980N
(During operation; Radial load; P-direction) 784N
(During operation;Thrust load; A; B-direction) 343N - Operating torque:
(Rated torque) 19.1N.m
(Continuous stall torque) 22N.m
(Momentary max Peak torque) 57.3N.m
(Brake static friction) 25N.m - Moment of inertia: 0.0523kg.m²
- Net weight: 16.8kg
- Rotational speed:
(Rated) 2000rpm
(Max) 3000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
