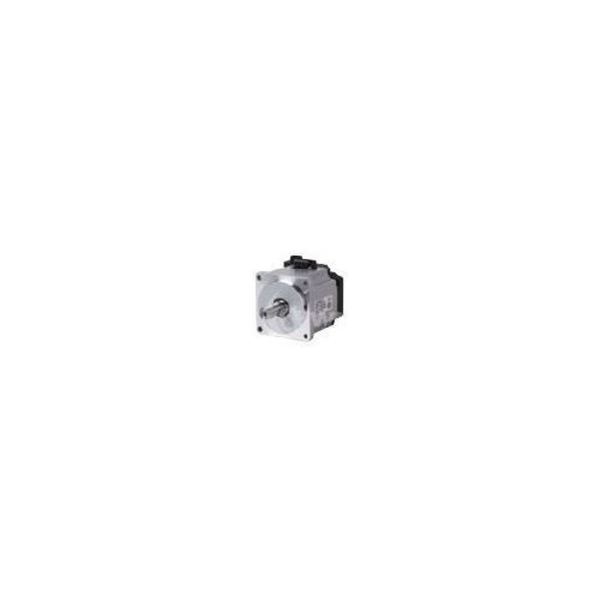

PANASONIC MHMF011L1D1 AC SERVO MOTOR
Starting At: $801.45
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MHMF011L1D1
IMS Product Code: 1970501
Packaging: Sold Individually
Description:
Panasonic MHMF011L1D1 AC Servo Motor, (A6 Series - MHM) - Supply Voltage 100VAC
Specifications:
- Functions:
Round shaft
Brake
Oil seals - Net Width (mm): (Flange) 40mm
- Current consumption: (Brake excitation) 0.3A
- Connection type: (Encoder terminal) JN connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 147N
(During assembly; Thrust load; A-direction) 88N
(During assembly; Thrust load; B-direction) 117.6N
(During operation; Radial load; P-direction) 68.6N
(During operation;Thrust load; A; B-direction) 58.8N - Operating torque:
(Rated torque) 0.32N.m
(Continuous stall torque) 0.33N.m
(Momentary max Peak torque) 1.11N.m
(Brake static friction) 0.38N.m - Moment of inertia: 0.000074kg.m²
- Net weight: 0.64kg
- Rotational speed:
(Rated) 3000rpm
(Max) 6500rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
