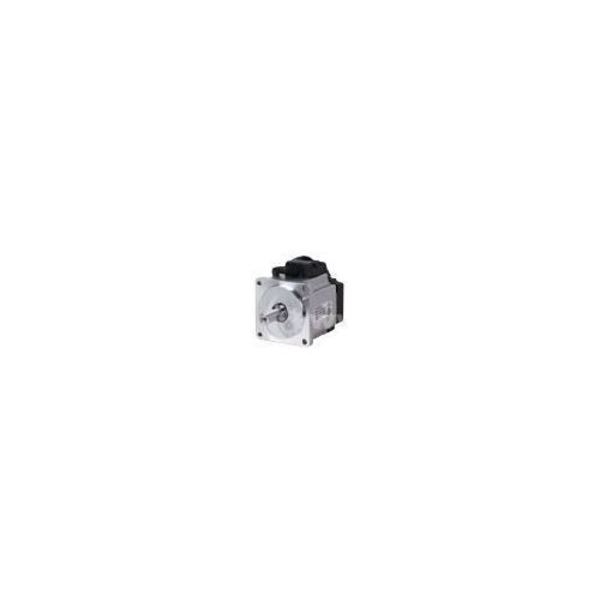

PANASONIC MHMF021L1D2 A6 SERIES MHM AC SERVO MOTOR
Starting At: $745.88
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MHMF021L1D2
IMS Product Code: 1970677
Packaging: Sold Individually
Description:
Panasonic MHMF021L1D2 A6 Series MHM AC Servo Motor, Supply Voltage 100VAC
Specifications:
- Functions:
Round shaft
Brake
Oil seals - Net Width (mm): (Flange) 80mm
- Current consumption: (Brake excitation) 0.36A
- Connection type: (Encoder terminal) Leadwire
- Mechanical withstand:
(During assembly; Radial load; P-direction) 392N
(During assembly; Thrust load; A-direction) 147N
(During assembly; Thrust load; B-direction) 196N
(During operation; Radial load; P-direction) 245N
(During operation;Thrust load; A; B-direction) 98N - Operating torque:
(Rated torque) 0.64N.m
(Continuous stall torque) 0.76N.m
(Momentary max Peak torque) 2.23N.m
(Brake static friction) 1.6N.m - Moment of inertia: 0.00031kg.m²
- Net weight: 1.2kg
- Rotational speed:
(Rated) 3000rpm
(Max) 6500rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
