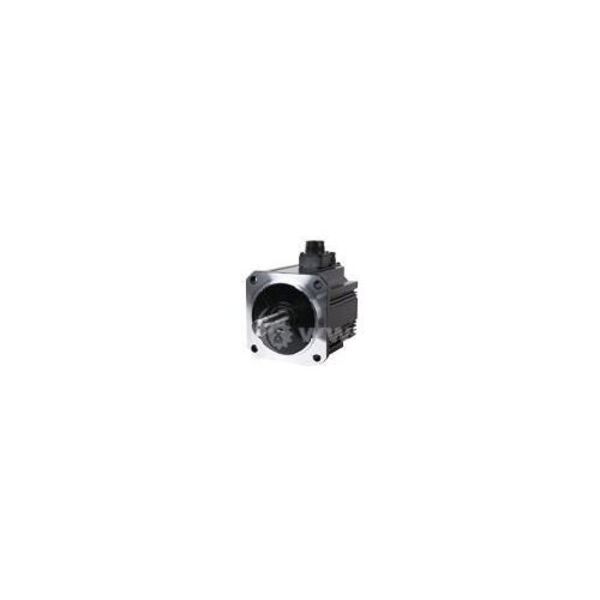

PANASONIC MHMF502L1H7 A6 SERIES MHM AC SERVO MOTOR
Starting At: $2,770.95
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MHMF502L1H7
IMS Product Code: 1970960
Packaging: Sold Individually
Description:
Panasonic MHMF502L1H7 A6 Series MHM AC Servo Motor, Supply Voltage 200VAC, Rated Power 5kW
Specifications:
- Functions:
Keyway shaft; center tap
Brake
Oil seals with protective lip - Net Width (mm): (Flange) 176mm
- Current consumption: (Brake excitation) 1.161-1.419A
- Connection type: (Encoder terminal) JN2 connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 1666N
(During assembly; Thrust load; A-direction) 784N
(During assembly; Thrust load; B-direction) 980N
(During operation; Radial load; P-direction) 784N
(During operation;Thrust load; A; B-direction) 343N - Operating torque:
(Rated torque) 23.9N.m
(Continuous stall torque) 26.3N.m
(Momentary max Peak torque) 71.6N.m
(Brake static friction) 44.1N.m - Moment of inertia: 0.151kg.m²
- Net weight: 22.8kg
- Rotational speed:
(Rated) 2000rpm
(Max) 3000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
