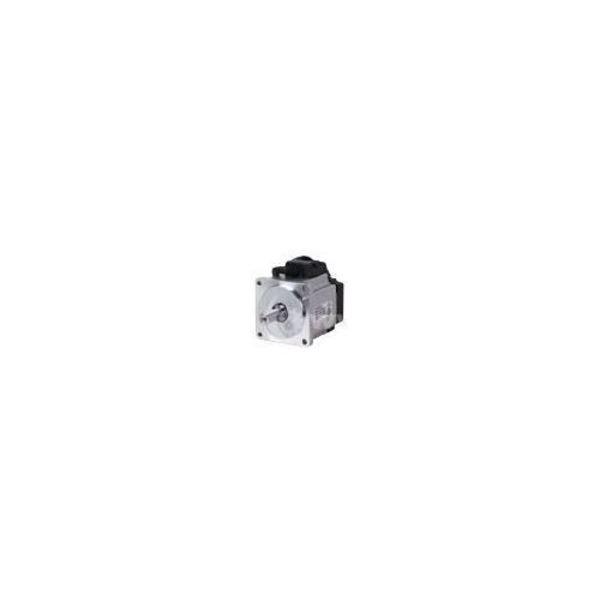

PANASONIC MHMF5AZL1B2 A6 SERIES MHM AC SERVO MOTOR
Starting At: $773.18
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MHMF5AZL1B2
IMS Product Code: 1970973
Packaging: Sold Individually
Description:
Panasonic MHMF5AZL1B2 A6 Series MHM AC Servo Motor, Supply Voltage (Selectable) 100/200VAC, Rated Power 50W/0.05kW
Specifications:
- Functions:
Round shaft
Brake - Net Width (mm): (Flange) 40mm
- Current consumption: (Brake excitation) 0.3A
- Connection type: (Encoder terminal) Leadwire
- Mechanical withstand:
(During assembly; Radial load; P-direction) 147N
(During assembly; Thrust load; A-direction) 88N
(During assembly; Thrust load; B-direction) 117.6N
(During operation; Radial load; P-direction) 68.6N
(During operation;Thrust load; A; B-direction) 49N - Operating torque:
(Rated torque) 0.16N.m
(Continuous stall torque) 0.18N.m
(Momentary max Peak torque) 0.56N.m
(Brake static friction) 0.38N.m - Moment of inertia: 0.000042kg.m²
- Net weight: 0.51kg
- Rotational speed:
(Rated) 3000rpm
(Max) 6500rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
