PANASONIC MQ-W20A-DC12-24V, PHOTOELECTRIC SENSOR, MQ-W SERIES

Call For Quote

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: MQ-W20A-DC12-24V
IMS Product Code: 1762019
Packaging: Sold Individually

Description:

DISCONTINUED

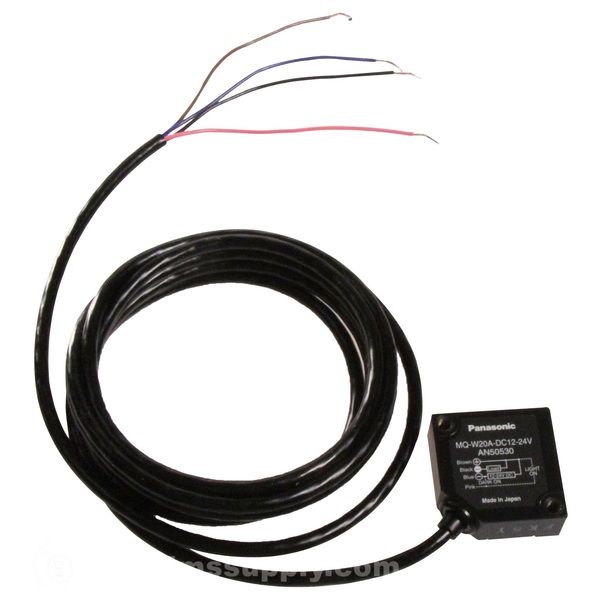

Panasonic MQ-W20A-DC12-24V, Photoelectric Sensor, MQ-W Series, Triple Beam Trigonometric, 200 mm, NPN, 12 Vdc to 24Vdc

The MQ-W20A-DC12-24V is a Reflective Photoelectric Sensor with NPN control output. Accurate detection regardless of color, material or shape of objects. Triple beam area reflective type sensor can detect white or black object at the same distance. In case of diffuse reflective type, it is difficult to detect objects of various color with the same sensitivity setting. MQ-W area reflective type sensor is useful for such a case. It detects the distance by the angle, not the intensity of received light. Even if the lens surface is soiled by dust or any powdery material, there is a little variation of sensing range.

  • 0.2m Sensing distance
  • Infrared LED light source
  • Die-cast case immersion protected
  • -25 to 55°C Operating temperature
  • Sensor Output: NPN
  • Sensing Range Max: 200mm
  • Supply Voltage DC Min: 12V
  • Supply Voltage DC Max: 24V
  • Output Current: 100mA
  • Product Range: MQ-W Series
