PANASONIC MQ-W70C-DC12-24V, PHOTOELECTRIC SENSOR

Call For Quote

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: MQ-W70C-DC12-24V
IMS Product Code: 1762032
Packaging: Sold Individually

Description:

DISCONTINUED

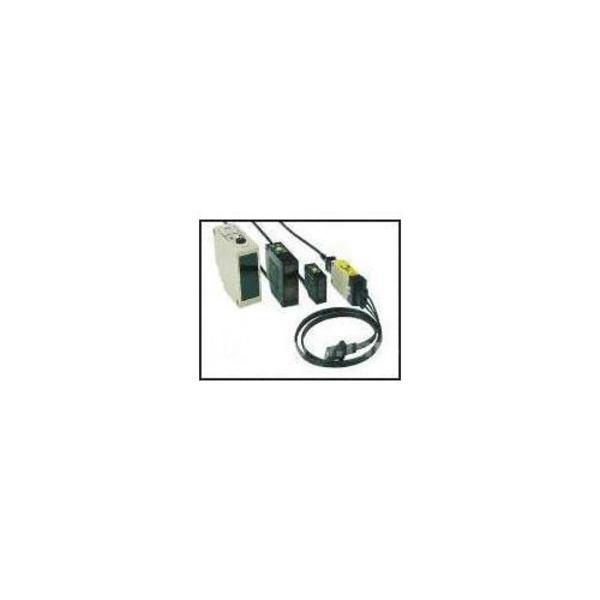

Panasonic MQ-W70C-DC12-24V, Photoelectric Sensor, MQ-W Series, Triple Beam Trigonometric, 700 mm, PNP, 12 Vdc to 24 Vdc

The MQ-W series Reflective Photoelectric Sensor with amplifier built-in. Sensing objects can be detected at a constant distance using the triple beam sensing method. Adjustable range reflective type sensor can detect white or black object at the same distance. Adjustable range reflective type sensor dose not detect objects beyond the set range. Adjustable range reflective type sensor detects the distance by the angle, not by the light receiving intensity. Even if the lens surface is soiled by dust or any powdery material, there is little variation of sensing range. In addition, the sensor stably detects approaching objects at a fixed distance because the distance is sensed by the angle of received light.

  • Visible light type and low hysteresis type are available
  • Compact and slim size
  • Insusceptible to contamination on lens
  • Sensor Output: PNP
  • Sensing Range Max:  -
  • Supply Voltage DC Min: 12V
  • Supply Voltage DC Max: 24V
  • Output Current: 100mA
  • Product Range: MQ-W Series

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Panasonic. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
