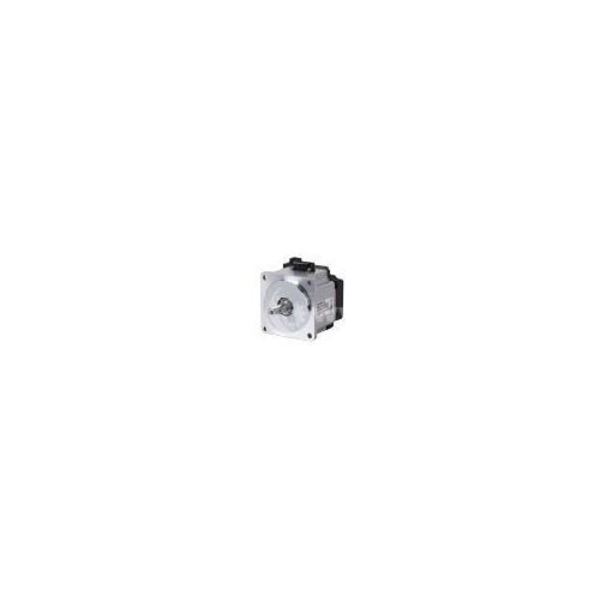

PANASONIC MQMF041L1U1 A6 SERIES MQM AC SERVO MOTOR
Starting At: $675.68
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MQMF041L1U1
IMS Product Code: 1971288
Packaging: Sold Individually
Description:
Panasonic MQMF041L1U1 A6 Series MQM AC Servo Motor, Supply Voltage 100VAC, Rated Power 400W/0.4kW
Specifications:
- Functions:
Keyway shaft; center tap
Oil seals - Net Width (mm): (Flange) 80mm
- Connection type: (Encoder terminal) JN connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 392N
(During assembly; Thrust load; A-direction) 147N
(During assembly; Thrust load; B-direction) 196N
(During operation; Radial load; P-direction) 245N
(During operation;Thrust load; A; B-direction) 98N - Operating torque:
(Rated torque) 1.27N.m
(Continuous stall torque) 1.4N.m
(Momentary max Peak torque) 4.46N.m - Moment of inertia: 0.00098kg.m²
- Net weight: 1.6kg
- Rotational speed:
(Rated) 3000rpm
(Max) 6500rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 98 to 112 Days
