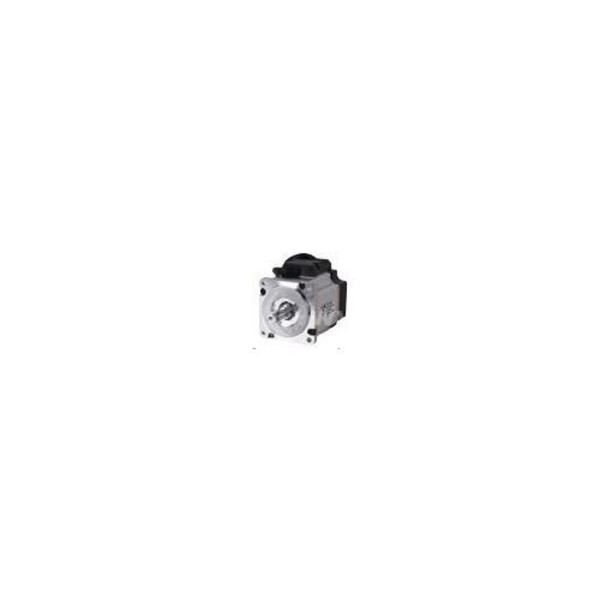

PANASONIC MSMF041L1V2 A6 SERIES MSM AC SERVO MOTOR
Starting At: $871.65
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MSMF041L1V2
IMS Product Code: 1972522
Packaging: Sold Individually
Description:
Panasonic MSMF041L1V2 A6 Series MSM AC Servo Motor, Supply Voltage 100VAC, Rated Power 400W / 0.4kW, Rotational Speed (Rated) 3000rpm, with 23bit Absolute Rotary Encoder, with Keyway Shaft; Center Tap, with Oil Seals, with (Encoder Terminal) Leadwire
Specifications:
- Functions:
Keyway shaft; center tap
Brake
Oil seals - Net Width (mm): (Flange) 60mm
- Current consumption: (Brake excitation) 0.36A
- Connection type: (Encoder terminal) Leadwire
- Mechanical withstand:
(During assembly; Radial load; P-direction) 392N
(During assembly; Thrust load; A-direction) 147N
(During assembly; Thrust load; B-direction) 196N
(During operation; Radial load; P-direction) 245N
(During operation;Thrust load; A; B-direction) 98N - Operating torque:
(Rated torque) 1.27N.m
(Continuous stall torque) 1.27N.m
(Momentary max Peak torque) 3.82N.m
(Brake static friction) 1.27N.m - Moment of inertia: 0.0003kg.m²
- Net weight: 1.7kg
- Rotational speed:
(Rated) 3000rpm
(Max) 6000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
