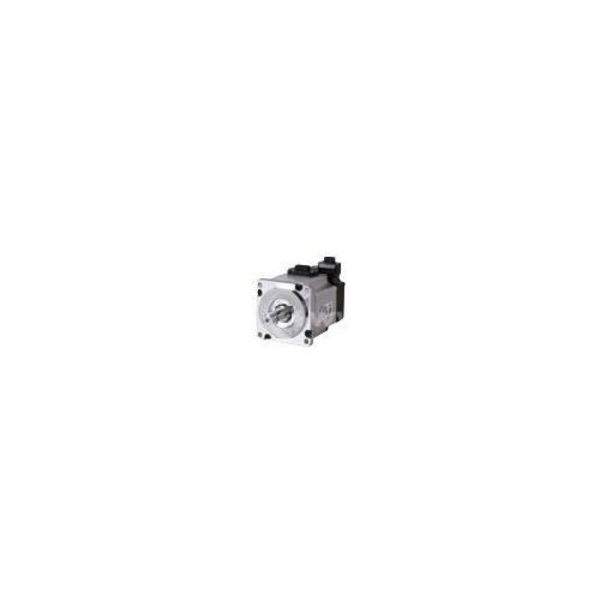

PANASONIC MSMF042L1A1 A6 SERIES MSM AC SERVO MOTOR
Starting At: $675.68
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MSMF042L1A1
IMS Product Code: 1972525
Packaging: Sold Individually
Description:
Panasonic MSMF042L1A1 A6 Series MSM AC Servo Motor, Supply Voltage 200VAC, Rated Power 400W / 0.4kW, Rotational Speed (Rated) 3000rpm, with 23bit Absolute Rotary Encoder, with Round Shaft, with (Encoder Terminal) JN Connector
Specifications:
- Functions: Round shaft
- Net Width (mm): (Flange) 60mm
- Connection type: (Encoder terminal) JN connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 392N
(During assembly; Thrust load; A-direction) 147N
(During assembly; Thrust load; B-direction) 196N
(During operation; Radial load; P-direction) 245N
(During operation;Thrust load; A; B-direction) 98N - Operating torque:
(Rated torque) 1.27N.m
(Continuous stall torque) 1.27N.m
(Momentary max Peak torque) 3.82N.m - Moment of inertia: 0.00027kg.m²
- Net weight: 1.2kg
- Rotational speed:
(Rated) 3000rpm
(Max) 6000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
