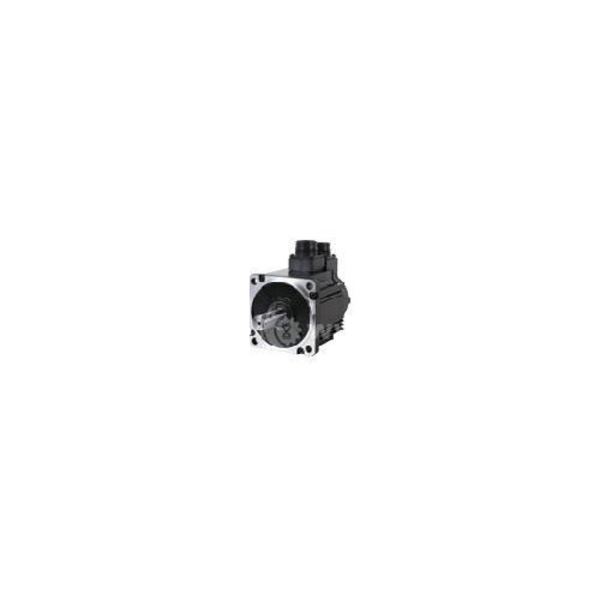

PANASONIC MSMF102L1C7 A6 SERIES MSM AC SERVO MOTOR
Starting At: $1,196.33
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MSMF102L1C7
IMS Product Code: 1972622
Packaging: Sold Individually
Description:
Panasonic MSMF102L1C7 A6 Series MSM AC Servo Motor, Supply Voltage 200VAC, Rated Power 1kW, Rotational Speed (Rated) 3000rpm, with 23bit Absolute Rotary Encoder, with Round Shaft, with Oil Seals with Protective Lip, with (Encoder Terminal) JN2 Connector
Specifications:
- Functions:
Round shaft
Oil seals with protective lip - Net Width (mm): (Flange) 100mm
- Connection type: (Encoder terminal) JN2 connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 980N
(During assembly; Thrust load; A-direction) 588N
(During assembly; Thrust load; B-direction) 686N
(During operation; Radial load; P-direction) 490N
(During operation;Thrust load; A; B-direction) 196N - Operating torque:
(Rated torque) 3.18N.m
(Continuous stall torque) 3.82N.m
(Momentary max Peak torque) 9.55N.m - Moment of inertia: 0.00215kg.m²
- Net weight: 3.6kg
- Rotational speed:
(Rated) 3000rpm
(Max) 5000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
