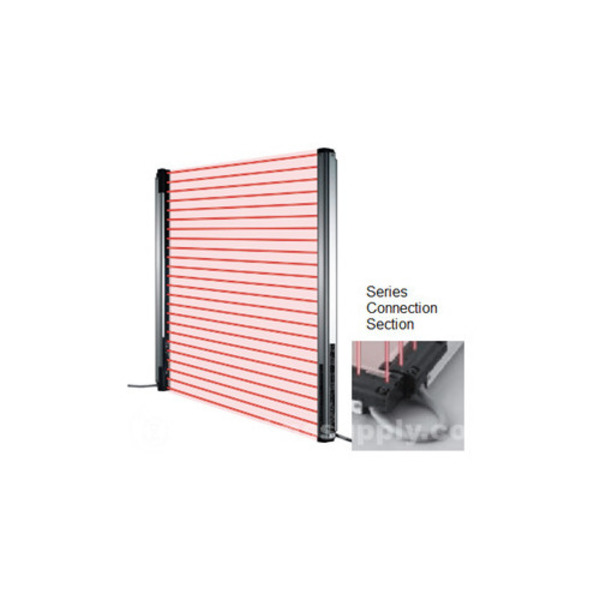

PANASONIC SF2B-H36SL TYPE 2 LIGHT CURTAIN/SERIES CONNECTION

MSRP: $1,474.00
Starting At: $1,437.15

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: SF2B-H36SL
IMS Product Code: 1972179
Packaging: Sold Individually

Description:

Panasonic SF2B-H36SL Type 2 Light Curtain/Series Connection, Hand Protect, 20mm Pitch, 712mm Height, 0.2-13 M Range

Specifications:

  • Series: SF2B Ver.2
  • Light Curtain Type & Style: Type 2-Slim
  • Protection Type: Hand
  • Number of Beams: 36 beam channels
  • Beam Pitch: 20mm
  • Minimum Detectable Object: Ø 27mm
  • Protection Height: 712mm
  • Operation Range: 2 to 13 meters
  • Features: Slim body 28W x 24D, 2 sub-units can be connected in series
  • Light Source: Infrared LED
  • Effective Aperture: ±5° or less
  • Temperature: –10 to +55 °C
  • Protection: IP67
  • Construction: Aluminum enclosure, zinc die-cast edges, Polycarbonate-polyester resin inner case, PBT cap
  • Connection Type: Bottom Cap for Serial
  • Connection Type Detail: Select SF2B Bottom Cap Style
  • Item Weight: 0.93 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
