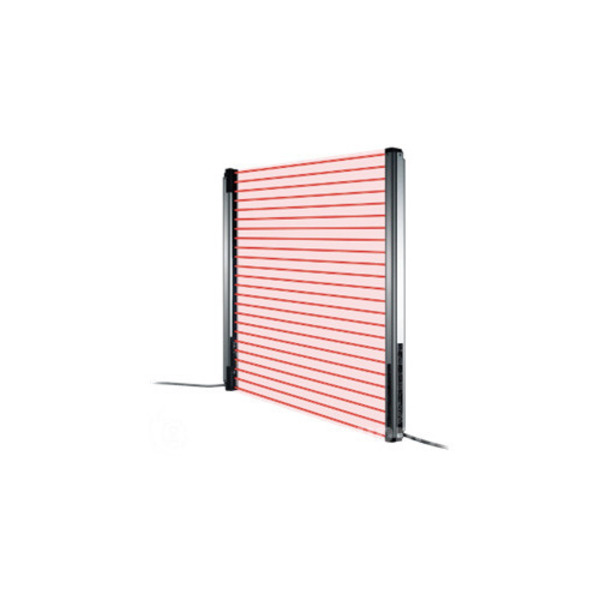

PANASONIC SF2B-H80-P TYPE 2 LIGHT CURTAIN - HAND PROTECTION

MSRP: $2,915.00
Starting At: $2,842.13

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: SF2B-H80-P
IMS Product Code: 1972209
Packaging: Sold Individually

Description:

Panasonic SF2B-H80-P Type 2 Light Curtain - Hand Protection, 20mm Beam Pitch, 1432mm Height, 0.2-13 M Range, SF2B Series Safety Light Curtain, Type 2 Safety Solution 20mm Beam Pitch, PNP Output 80 Light Channels, 1592mm of Protective Height, 0.2 to 13 Meter Distance, Requires SF2B Hookup Cables (not included)

Specifications:

  • Series: SF2B Ver.2
  • Light Curtain Type & Style: Type 2-Slim
  • Protection Type: Hand
  • Number of Beams: 80 beam channels
  • Beam Pitch: 20mm
  • Minimum Detectable Object: Ø 27mm
  • Protection Height: 1432mm
  • Operation Range: 2 to 13 meters
  • Features: Slim body 28W x 24D, 2 sub-units can be connected in series
  • Light Source: Infrared LED
  • Effective Aperture: ±5° or less
  • Safety Rated Control Outputs: PNP x 2
  • Safety Control Output Response Time: OFF response: 15 ms or less, ON response: 40 to 60 ms
  • Voltage Details: 24VDC ±15% Ripple P-P 10% or less
  • Temperature: –10 to +55 °C
  • Protection: IP65 (IP67 IEC)
  • Construction: Aluminum enclosure, zinc die-cast edges, Polycarbonate-polyester resin inner case, PBT cap
  • Connection Type: QD or Cabled
  • Connection Type Detail: Select SF2B Bottom Cap Style
  • Item Weight: 4.63 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
