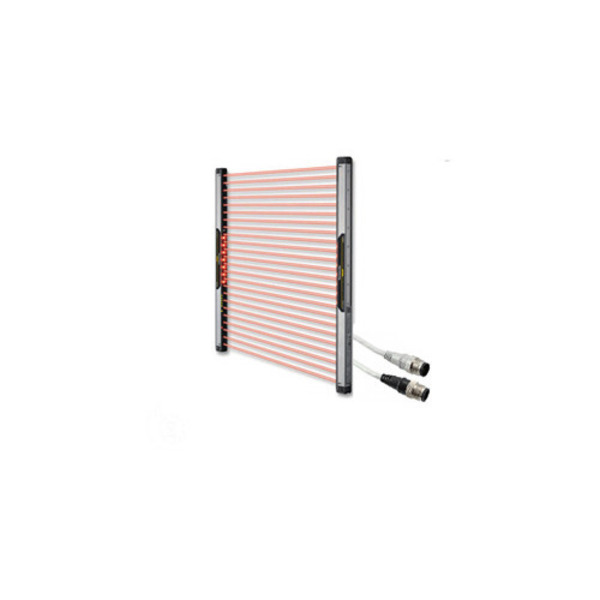

PANASONIC SF4B-A32CA-J05 TYPE 4 LIGHT CURTAIN ARM TYPE 1303MM QD

MSRP: $2,438.00
Starting At: $2,377.05

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: SF4B-A32CA-J05
IMS Product Code: 1972302
Packaging: Sold Individually

Description:

Panasonic SF4B-A32CA-J05 Type 4 Light Curtain Arm Type 1303MM QD, Class 4 Compact Light Curtain 1,303.4mm Protection Height Arm/foot Type, Compact Plastic Body With Metal Inner Frame For Durability And Stability, Large Multipurpose Indicator, 45% Lighter For Easy Installation And Mounting, Pigtail Connector Version With Muting Function (order Cable Separately SFB-CC), Brackets Sold Separately

Specifications:

  • Series: SF4B-C
  • Light Curtain Type & Style: Type 4-Compact, Light Weight
  • Protection Type: Arm/Foot
  • Number of Beams: 32 beam channels
  • Beam Pitch: 40mm
  • Minimum Detectable Object: Ø 45mm
  • Protection Height: 1303.4mm
  • Operation Range: 0.3 to 7 meters
  • Features: Slim body 20W x 27D, large orange multi-purpose LED indicator for a variety of indication applications
  • Light Source: Infrared LED
  • Effective Aperture: ±2.5° or less
  • Safety Rated Control Outputs: NPN/PNP x 2
  • Safety Control Output Response Time: OFF response: 14 ms or less, ON response 80 to 90 ms
  • Voltage Details: 24VDC ±10% Ripple P-P 10% or less
  • Temperature: –10 to +55 °C
  • Protection: IP65 IEC
  • Construction: Double structure of a “plastic body” with a “metal inner frame”
  • Connection Type: QD Pigtail
  • Connection Type Detail: Select SF4B-C Extension Cable
  • Item Weight: 4.50 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Panasonic. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
