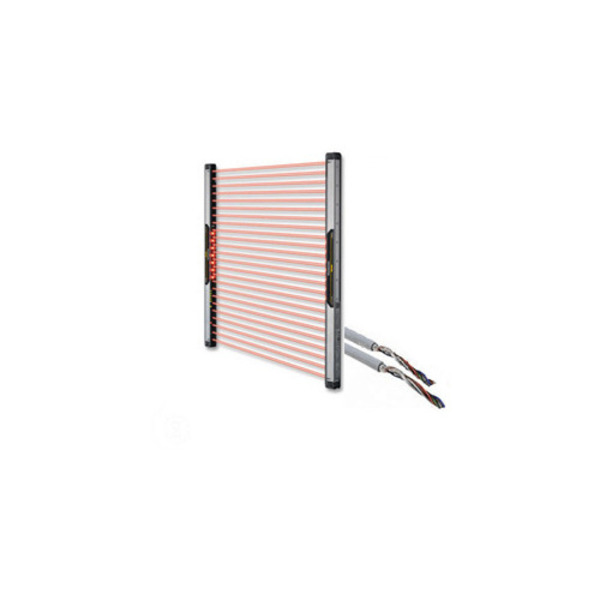

PANASONIC SF4B-A40C TYPE 4 LIGHT CURTAIN ARM TYPE 1623MM

MSRP: $2,883.00
Starting At: $2,810.93

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: SF4B-A40C
IMS Product Code: 1972309
Packaging: Sold Individually

Description:

Panasonic SF4B-A40C Type 4 Light Curtain Arm Type 1623MM, Class 4 Compact Light Curtain 1,623.4mm Protection Height Arm/foot Type, Compact Plastic Body With Metal Inner Frame For Durability And Stability, Large Multipurpose Indicator, 45% Lighter For Easy Installation And Mounting, 5 Meter Prewired Cable Version With Flying Leads, Brackets Sold Separately

Specifications:

  • Series: SF4B-C
  • Light Curtain Type & Style: Type 4-Compact, Light Weight
  • Protection Type: Arm/Foot
  • Number of Beams: 40 beam channels
  • Beam Pitch: 40mm
  • Minimum Detectable Object: Ø 45mm
  • Protection Height: 1623.4mm
  • Operation Range: 0.3 to 7 meters
  • Features: Slim body 20W x 27D, large orange multi-purpose LED indicator for a variety of indication applications
  • Light Source: Infrared LED
  • Effective Aperture: ±2.5° or less
  • Safety Rated Control Outputs: NPN/PNP x 2
  • Safety Control Output Response Time: OFF response: 14 ms or less, ON response 80 to 90 ms
  • Voltage Details: 24VDC ±10% Ripple P-P 10% or less
  • Temperature: –10 to +55 °C
  • Protection: IP65 IEC
  • Construction: Double structure of a “plastic body” with a “metal inner frame”
  • Connection Type: Cabled
  • Connection Type Detail: Integral Cable 5 meter
  • Item Weight: 2.40 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
