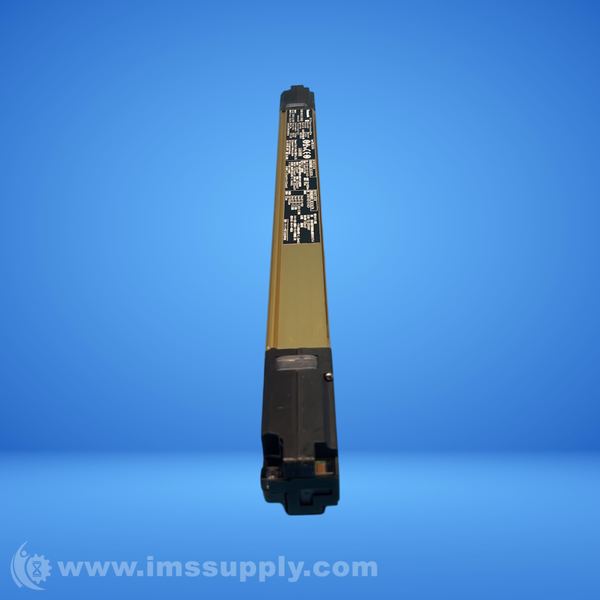

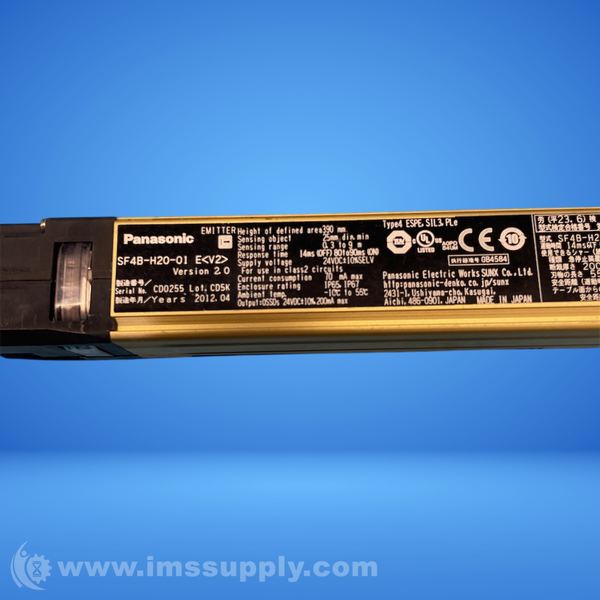

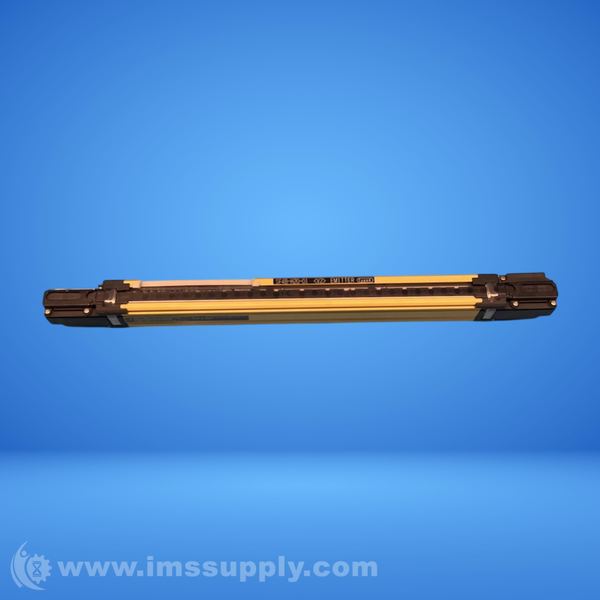

PANASONIC SF4B-H20-01 AREA SENSOR
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF4B-H20-01 E
IMS Product Code: 2131401
Packaging: Sold Individually
Description:
Panasonic SF4B-H20-01 Area Sensor
Area Sensor
Specifications
- Detection Distance: 0.1 to 7 m
- Detection Capability: ø30 mm
- Operating Voltage: 24 VDC
- Output Type: PNP/NPN transistor output
- Connection: M12 connector
- Supply Voltage: 24VDC+10%SELV
- Current Consumption: 70 mA max
- Sensing Object: 25mm, dia. min
- Sensing Range: 0.3 to 9 m
- Response Time: 14ms (OFF) 80 to 90ms (ON)
- Output: OSSD
- Enclosure Rating: IP65, IP67
- Ambient Temperature: -10 deg C to 55 deg C
- Height of Defined Area: 390 mm
- Type: ESPE SIL3 PLe
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
