PANASONIC SF4B-H80G-01 SAFETY LIGHT CURTAIN
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF4B-H80G-01
IMS Product Code: 2126489
Packaging: Sold Individually
Description:

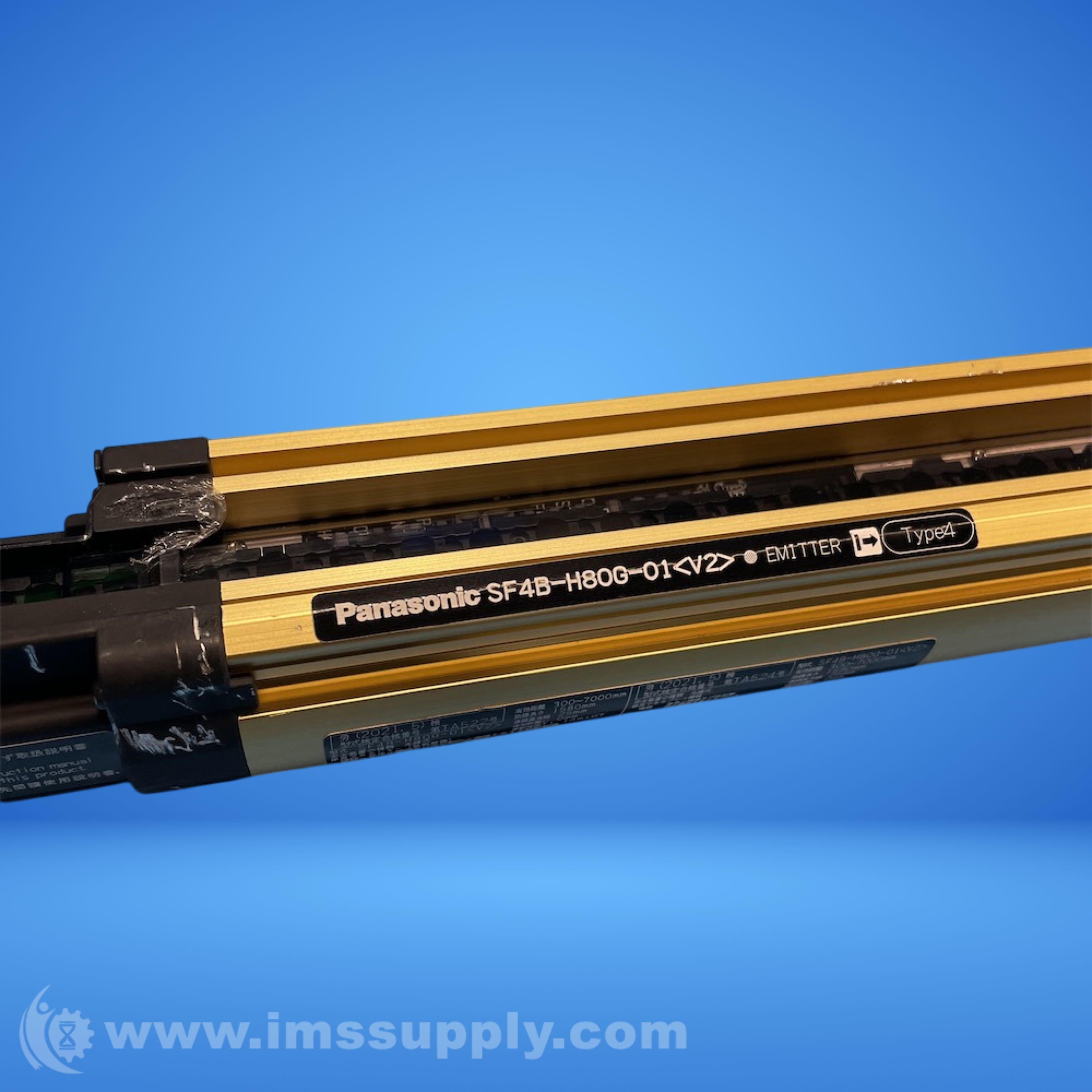

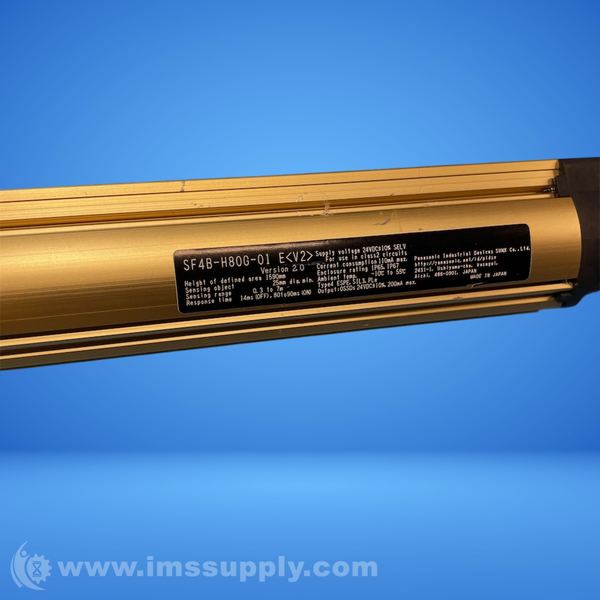

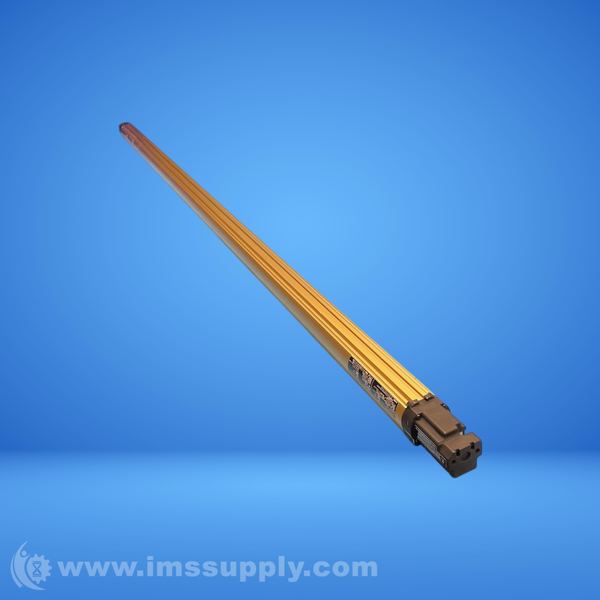

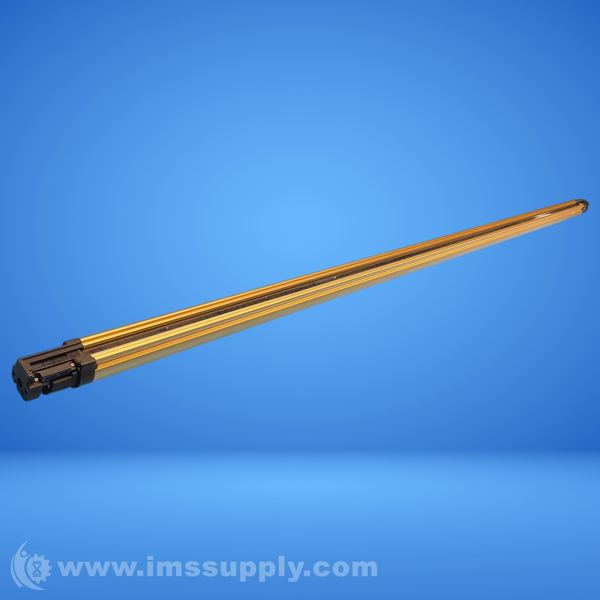

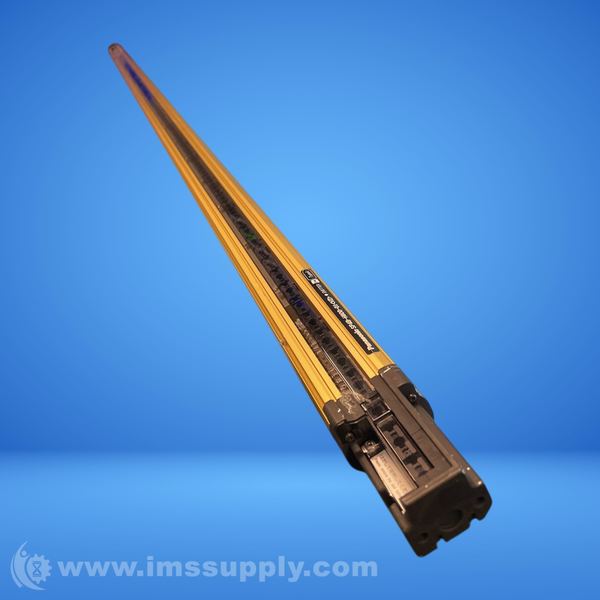

Panasonic SF4B-H80G-01 Safety Light Curtain
Safety Light Curtain for Hand Protection, 80 Beam Channels, 1580 mm Protective Height
Specifications
- Series: SF4B
- Type: Hand Protection
- Number of Beam Channels: 80
- Beam Pitch: 20 mm
- Protective Height: 1580 mm
- Current Rating: 110 mA (Emitter), 180 mA (Receiver)
- Output Type: NPN, PNP
- Operating Range: 0.3 to 7 m
- Supply Voltage: 24 V dc
- Response Time: 14 ms (OFF), 80 to 90 ms (ON)
- IP Rating: IP65, IP67
- Operating Temperature Range: -10 to 55 degrees C
- Relative Humidity: 30 to 85 %
- Terminal Type: Cable
- Mounting Style: Bracket Mount
- Cable Length: 50 m
- Connecting Method: Connector
- Material: Aluminium (Enclosure), Iron (Upper and Lower Edges), Polycarbonate and Polyester Resin (Sensing Surface), PBT (Cap)
- Dimensions: 1694 x 57 x 55.5 mm
- Standards Met: CE, TUV, UL, OSHA/ANSI, S-Mark
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
