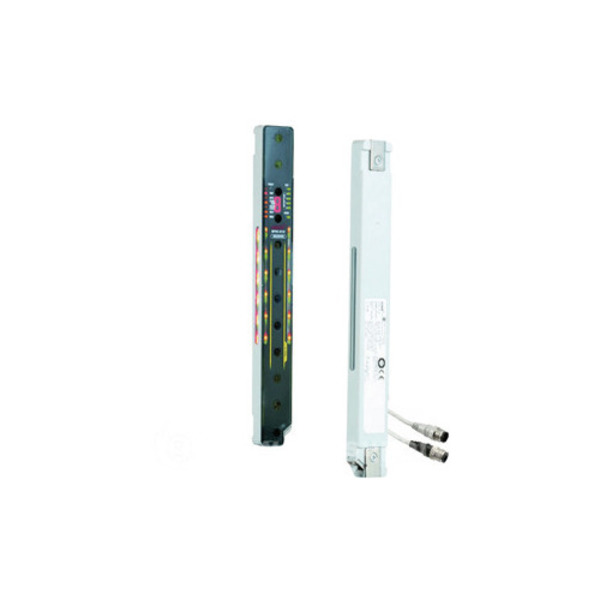

PANASONIC SF4C-H28-J05 SF4C SERIES ULTRA-SLIM LIGHT CURTAIN
Starting At: $1,359.15
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF4C-H28-J05
IMS Product Code: 1973549
Packaging: Sold Individually
Description:
Panasonic SF4C-H28-J05 SF4C Series Ultra-Slim Light Curtain, Category 4 Protection 20mm Beam Spacing, Switch Selectable NPN/PNP Output, 28 Beam Channels Provide 560mm Protection Height, 0.1 To 3m Sensing Distance, Quick Disconnect Connection
Specifications:
- Series: SF4C
- Light Curtain Type & Style: Type 4-Ultra-Slim
- Protection Type: Hand
- Number of Beams: 28 beam channels
- Beam Pitch: 20mm
- Minimum Detectable Object: Ø 25mm
- Protection Height: 560mm
- Operation Range: 0.1 to 3 meters
- Features: Solid choice for light-duty assembly machines. Only 13.2mm Thick! Large bright multi-purpose LED indicators
- Light Source: Infrared LED
- Effective Aperture: ±2.5° or less
- Safety Rated Control Outputs: NPN/PNP x 2
- Safety Control Output Response Time: OFF response 7 ms or less, ON response 90 ms or less
- Voltage Details: 24VDC +10%/-15% Ripple P-P 10% or less
- Temperature: –10 to +55 °C
- Protection: IP67, IP65 (IEC)
- Construction: Polycarbonate alloy enclosure and sensing surface
- Connection Type: QD Pigtail
- Connection Type Detail: Select SF4C Extension Cable
- Item Weight: 1.27 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
