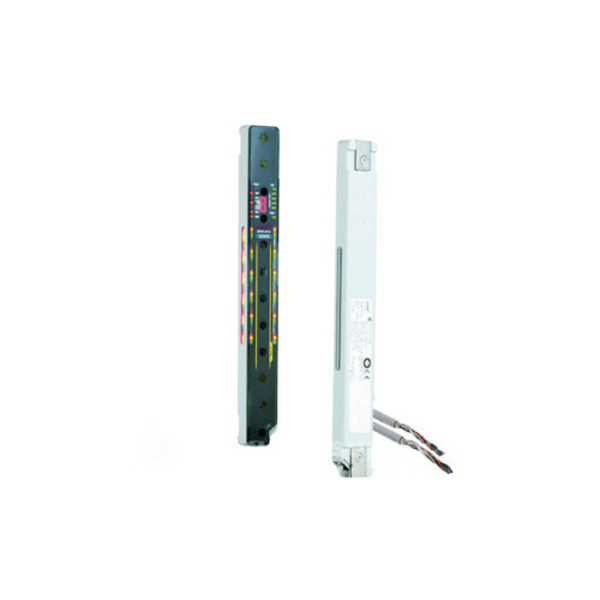

PANASONIC SF4C-H32 SF4C SERIES ULTRA-SLIM LIGHT CURTAIN

MSRP: $1,535.00
Starting At: $1,496.63

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: SF4C-H32
IMS Product Code: 1973551
Packaging: Sold Individually

Description:

Panasonic SF4C-H32 SF4C Series Ultra-Slim Light Curtain, Category 4 Protection 20mm Beam Spacing, Switch Selectable NPN/PNP Output, 32 Beam Channels Provide 640mm Protection Height, 0.1 To 3m Sensing Distance, 5 Meter Cable For Connection

Specifications:

  • Series: SF4C
  • Light Curtain Type & Style: Type 4-Ultra-Slim
  • Protection Type: Hand
  • Number of Beams: 32 beam channels
  • Beam Pitch: 20mm
  • Minimum Detectable Object: Ø 25mm
  • Protection Height: 640mm
  • Operation Range: 0.1 to 3 meters
  • Features: Solid choice for light-duty assembly machines. Only 13.2mm Thick! Large bright multi-purpose LED indicators
  • Light Source: Infrared LED
  • Effective Aperture: ±2.5° or less
  • Safety Rated Control Outputs: NPN/PNP x 2
  • Safety Control Output Response Time: OFF response 7 ms or less, ON response 90 ms or less
  • Voltage Details: 24VDC +10%/-15% Ripple P-P 10% or less
  • Temperature: –10 to +55 °C
  • Protection: IP67, IP65 (IEC)
  • Construction: Polycarbonate alloy enclosure and sensing surface
  • Connection Type: Cabled
  • Connection Type Detail: Integral Cable 5 meter
  • Item Weight: 1.68 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
