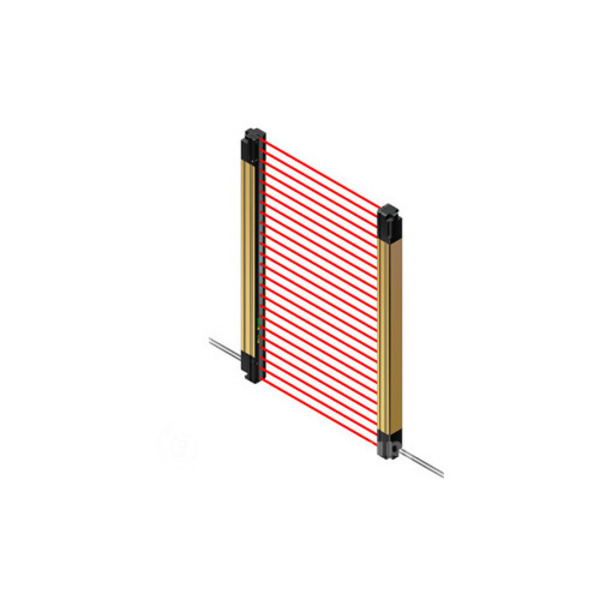

PANASONIC SF4D-A44-01 SF4D SERIES ROBUST SAFETY LIGHT CURTAIN

MSRP: $3,232.00
Starting At: $3,151.20

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: SF4D-A44-01
IMS Product Code: 1973635
Packaging: Sold Individually

Description:

Panasonic SF4D-A44-01 SF4D Series Robust Safety Light Curtain, 40mm Pitch 1,750mm IP67, Type 4 – 40mm Beam Spacing For Arm/Foot Protection Type, 44 Beam Channels Provide 1750mm Protection Height, 15 Meter Sensing Distance When Set In Long Mode, Not Compatible with SF4D-TM1 Communication Module or Configurator Software, Enviromental: IP67/IP65 (IEC) & NEMA Type 13 (NEMA 250)

Specifications:

  • Series: SF4D
  • Light Curtain Type & Style: Type 4-Compact & Robust
  • Protection Type: Arm/Foot
  • Number of Beams: 44 beam channels
  • Beam Pitch: 40mm
  • Minimum Detectable Object: Ø 45mm
  • Protection Height: 1750mm
  • Operation Range: 0.2 to 9 meter (short mode) 0.8 to 15 meter (long mode)
  • Features: Slim and robust construction resists twisting, warping and impact. Series connection of up to 5 units
  • Light Source: Infrared LED
  • Effective Aperture: ±2.5° or less
  • Safety Rated Control Outputs: NPN/PNP x 2
  • Safety Control Output Response Time: OFF response: <10 ms (Not connected in series/parallel), <18 ms (Connected in series / parallel). ON response: <50 ms
  • Voltage Details: 24VDC, +20% / -30% Ripple P-P 10 % or less
  • Temperature: –10 to +55 °C
  • Protection: IP67, (IP65 IEC), NEMA Type 13
  • Construction: Enclosure: Aluminum, Detection surface: Polycarbonate resin and stainless steel, Upper/lower cap: nylon
  • Connection Type: QD or Cabled
  • Connection Type Detail: Select SF4D Bottom Cap Style
  • Item Weight: 9.99 lbs per EA
