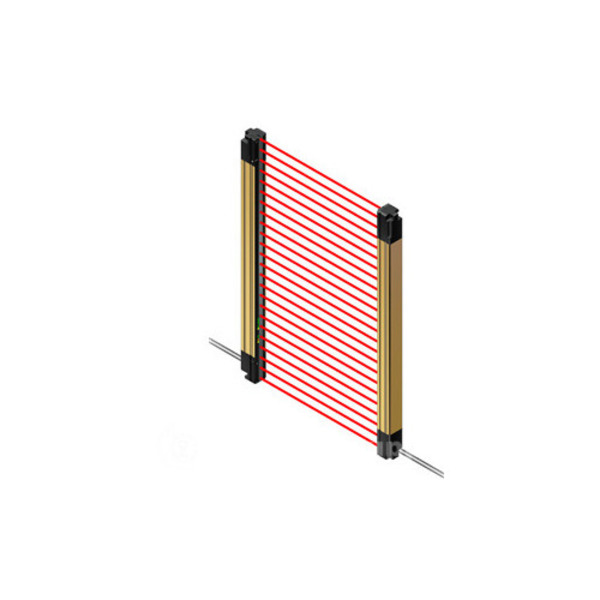

PANASONIC SF4D-H40 SF4D SERIES ROBUST SAFETY LIGHT CURTAIN
Starting At: $1,880.78
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF4D-H40
IMS Product Code: 1973793
Packaging: Sold Individually
Description:
Panasonic SF4D-H40 SF4D Series Robust Safety Light Curtain, Type 4 Light Curtain, Hand Protection, 20mm Beam Pitch, 790mm Height, 0.8-15 M Range, Compatible with SF4D-TM1 Communication Module & Configurator Software, Enviromental: IP67/IP65 (IEC) & NEMA Type 13 (NEMA 250)
Specifications:
- Series: SF4D
- Light Curtain Type & Style: Type 4-Compact & Robust
- Protection Type: Hand
- Number of Beams: 40 beam channels
- Beam Pitch: 20mm
- Minimum Detectable Object: Ø 25mm
- Protection Height: 790mm
- Operation Range: 0.2 to 9 meter (short mode) 0.8 to 15 meter (long mode)
- Features: Slim and robust construction resists twisting, warping and impact. Series connection of up to 5 units
- Light Source: Infrared LED
- Effective Aperture: ±2.5° or less
- Safety Rated Control Outputs: NPN/PNP x 2
- Safety Control Output Response Time: OFF response: <10 ms (Not connected in series/parallel), <18 ms (Connected in series / parallel). ON response: <50 ms
- Voltage Details: 24VDC, +20% / -30% Ripple P-P 10 % or less
- Temperature: –10 to +55 °C
- Protection: IP67, (IP65 IEC), NEMA Type 13
- Construction: Enclosure: Aluminum, Detection surface: Polycarbonate resin and stainless steel, Upper/lower cap: nylon
- Connection Type: QD or Cabled
- Connection Type Detail: Select SF4D Bottom Cap Style
- Item Weight: 4.31 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
