PANASONIC SF4D-H80 SAFETY LIGHT CURTAIN
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF4D-H80
IMS Product Code: 1973823
Packaging: Sold Individually
Description:

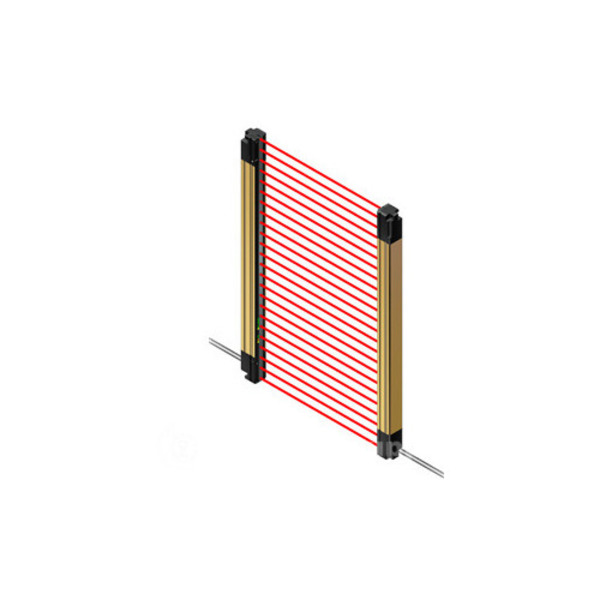

Panasonic SF4D-H80 Safety Light Curtain
Type 4 Hand Protection safety light curtain with 80 beam channels, 1590mm protective height, and 0.2-15m operating range. Features slim and robust construction, IP67/IP65 rating, and various safety functions including muting and interlocking.
Specifications
- Series: SF4D
- Number of Beams: 80
- Beam Pitch: 20mm
- Protective Height: 1590mm
- Operating Range: 0.2 to 9m (Short Mode), 0.8 to 15m (Long Mode)
- Min. Sensing Object: ø25mm
- Power Voltage: 24V DC +20-30%
- Control Outputs (OSSD 1, OSSD 2): PNP/NPN open-collector transistor
- Auxiliary Output (AUX): PNP/NPN open-collector transistor
- Environmental Resistance: IP67, IP65
- Ambient Temperature: -10 to +55°C
- Ambient Humidity: 30 to 85% RH
- Material: Aluminum (Enclosure), Polycarbonate Resin and Stainless Steel (Detection Surface), Nylon (Upper/Lower Cap)
