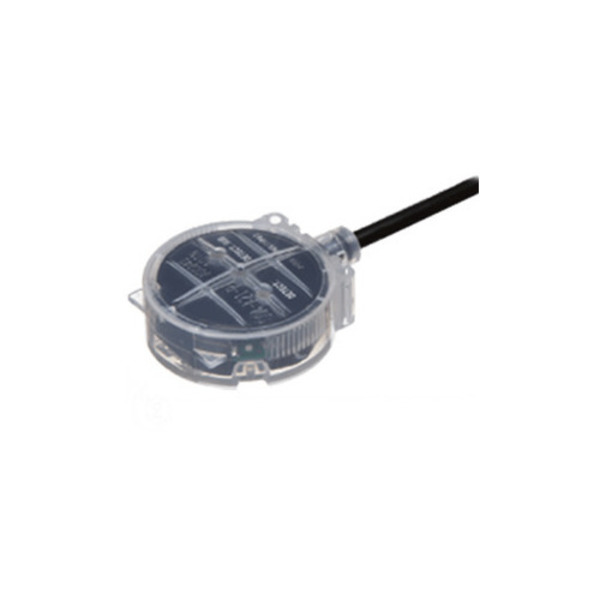

PANASONIC SQ4-A22-P SAFETY CHEMICAL LIQUID LEAK SENSOR - PNP
Starting At: $254.48
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SQ4-A22-P
IMS Product Code: 1976260
Packaging: Sold Individually
Description:
Panasonic SQ4-A22-P Safety Chemical Liquid Leak Sensor - PNP, SQ4 Series, Meets Category 1, PLc, SIL1 When Used Without A Controller, Meets Category 4, PLe, SIL3 When Used With SQ4-C11 Safety Controller, PFA Enclosure Insures Reliable Leak Detection of Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid, Ammonia, Fluorinert, etc., Requires 12 to 24 VDC, With Dual Channel Two-Stage PNP Output, Output Signals for Both Incipient and Abnormal Liquid Leak Volumes, 2m PFA Connection Cable, Does Not Include MS-SQ4 Mounting Bracket (Order Separately), Does Not Include Connectors for Use With SQ4-C11 Controller
Specifications:
- Series: SQ4
- Sensing Type: Liquid leak detection sensors - chemical resistant
- Features: For leak detection of chemical liquids such as sufuric/hydrochloric/phosphoric etc. Two-stage detection addresses both incipient liquid leaks and abnormal liquid leaks using separate outputs
- Sensing Source: Infrared LED
- Supply Voltage: DC
- Supply Voltage Details: 12 to 24VDC
- Control Output: PNP x 2
- Control Output Mode: Out 1: On when no liquid present, OFF when leakage detected or wrong installation. Out 2: ON when normal condition, OFF when initial detection or accidental leakage
- Response Time: Out 1: 10ms, Out 2: 50ms
- Operating Temperature: -10 to +55° C
- IP Rating: IP67, IP65
- Enclosure Details: PFA enclosure
- P) Connection Details: PFA cabtyre 2 meter
- Item Weight: 0.25 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 84 to 98 Days
