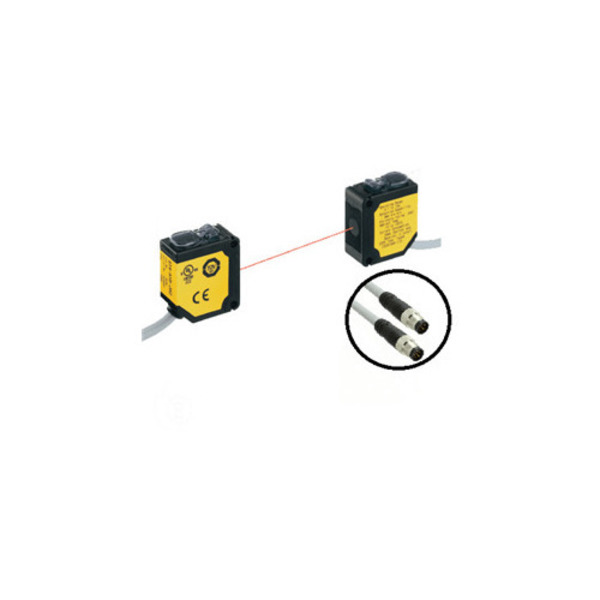

PANASONIC ST4-A1-J1 SINGLE BEAM THRUBEAM SAFETY SENSOR 1 METER

MSRP: $289.00
Starting At: $281.78

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: ST4-A1-J1
IMS Product Code: 1976271
Packaging: Sold Individually

Description:

Panasonic ST4-A1-J1 Single Beam Thrubeam Safety Sensor 1 Meter, Quick Disconnect, ST4 Series Thrubeam Sensor Set, Includes Emitter and Detector, 1M QD Cable Connection, 0.1 to 15M Range

Specifications:

  • Series: ST4
  • Light Curtain Type & Style: Type 4-Compact Single Beam
  • Protection Type: Single Beam
  • Number of Beams: 1 beam channel
  • Beam Pitch: Single Beam
  • Minimum Detectable Object: Ø 9mm
  • Protection Height: Single Beam
  • Operation Range: 0.1 to 15 meters
  • Features: Up to 6 sensors in series per controller. Three patterns of muting control function.
  • Light Source: Infrared LED
  • Effective Aperture: ±2.5° or less
  • Safety Rated Control Outputs: NPN/PNP x 2
  • Safety Control Output Response Time: OFF response: <25 ms, ON response: <90 ms (auto reset) / <140 ms (manual reset)
  • Temperature: –10 to +55 °C
  • Protection: IP67
  • Construction: PBT enclosure, acrylic Lens/Indicator cover
  • Connection Type: QD Pigtail
  • Connection Type Detail: Select ST4 Extension Cable
  • Item Weight: 1.68 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
