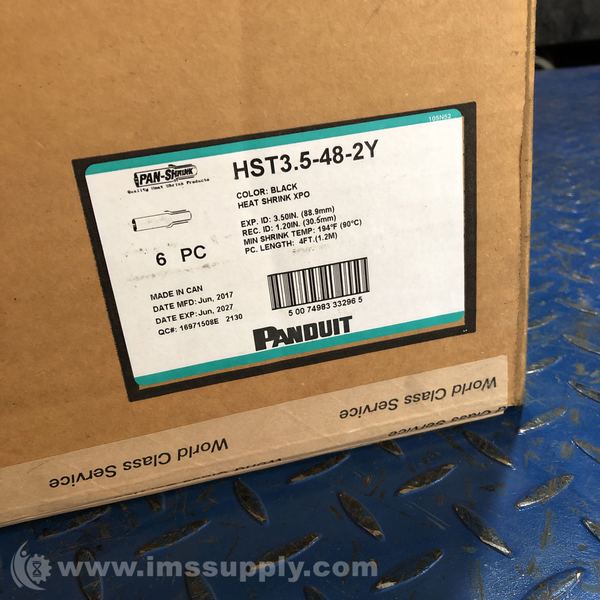

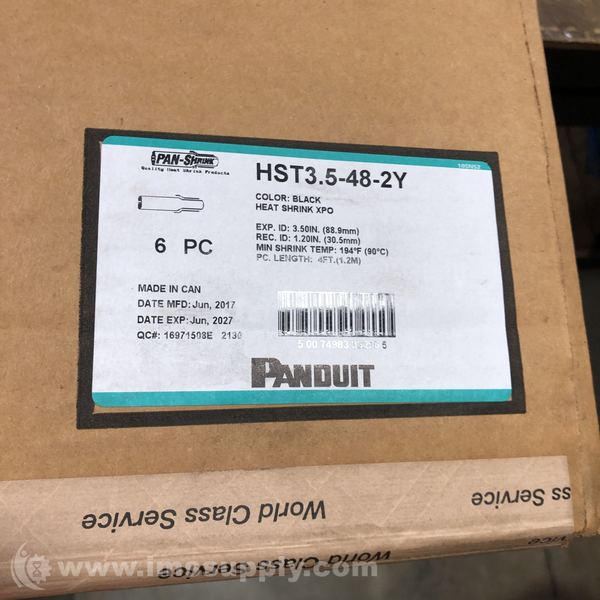

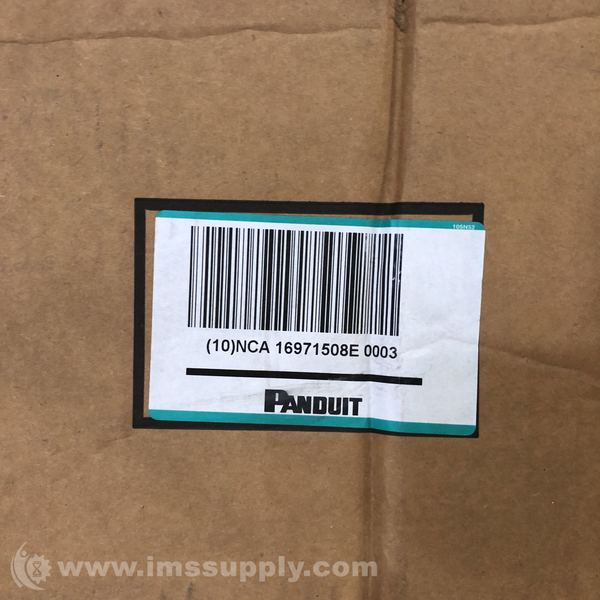

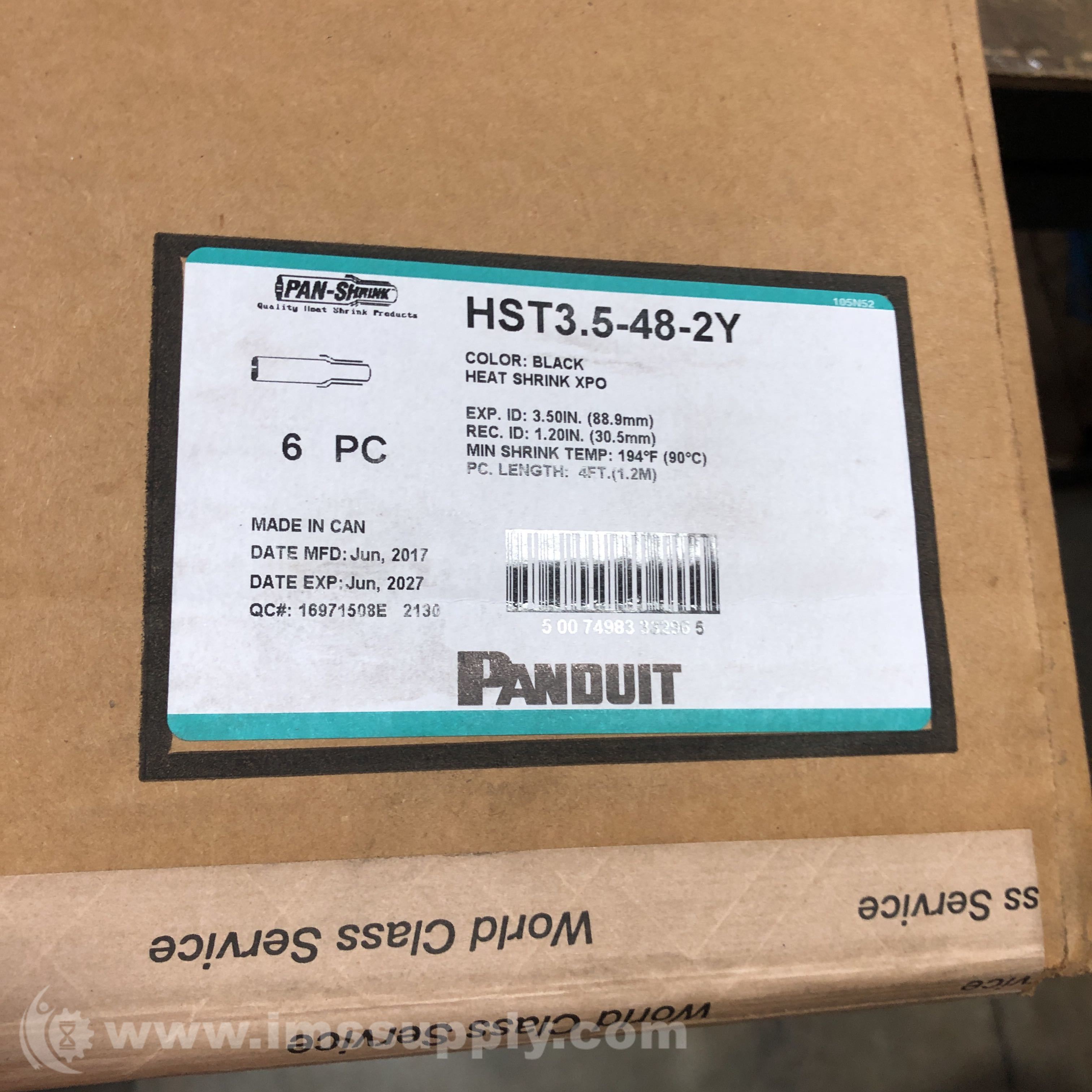

PANDUIT HST3.5-48-2Y THICK WALL HEAT SHRINK TUBING
Quick Overview
Manufactured By: PANDUIT
Manufacturer Part Number: HST3.5-48-2Y
IMS Product Code: 1986969
Packaging: Box of 6
Pack of 2
Box of 6
Pack of 6
Description:
Panduit HST3.5-48-2Y Thick Wall Heat Shrink Tubing
Thick wall adhesive lined heat shrink tubing made of irradiated cross-linked polyolefin with a 3:1 shrink ratio, black color, and continuous operating temperature range from -55�C to 110�C.
Specifications
- Shrink Ratio: 3:1
- Material: Irradiated cross-linked polyolefin outer wall with an inner wall of hot melt adhesive
- Color: Black
- Expanded Diameter: 88.9 mm, 3.5 in
- Recovered Inner Diameter: 30.48 mm, 1.2 in
- Length: 1219.2 mm, 48 in, 4 ft
- Shrink Temperature: 120�C, 248�F
- Continuous Operating Temperature: -55�C to 110�C, -67�F to 230�F
- Voltage Rating: 600V
- Dielectric Strength: 7.9 kV/mm minimum per ASTM D2671
- Flammability: Flame retardant meets UL 224 VW-1
