PANDUIT LCA4-56-L COPPER COMPRESSION LUG
Quick Overview
Manufactured By: PANDUIT
Manufacturer Part Number: LCA4-56-L
IMS Product Code: 2152826

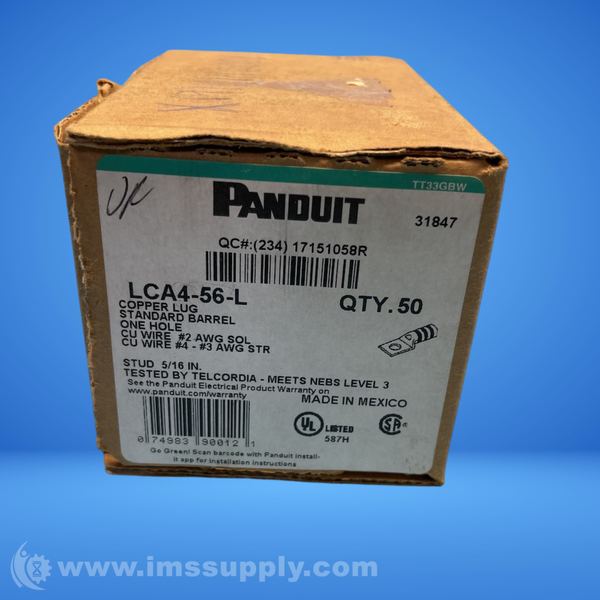

Packaging: Box of 50
Description:

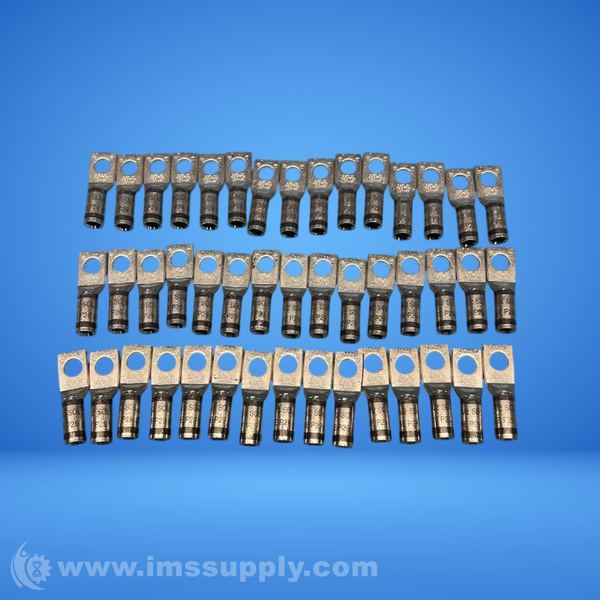

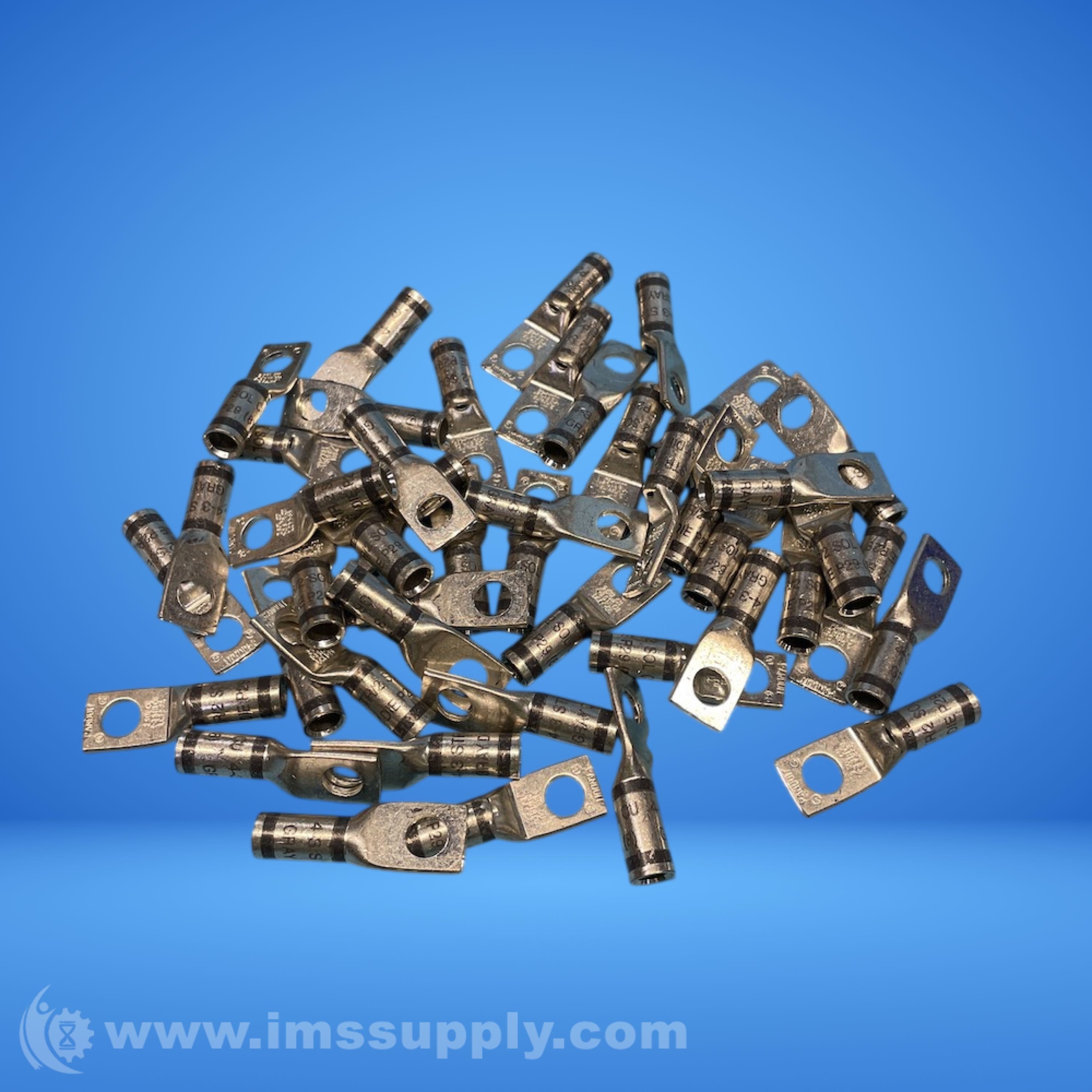

Panduit LCA4-56-L Copper Compression Lug
One-hole, standard barrel copper compression lug with inspection window. For 4 to 3 AWG stranded and 2 AWG solid copper wire. Tin-plated to inhibit corrosion. UL Listed and CSA Certified to 35 KV.
Specifications
- Material: Copper
- Finish: Tin-Plated
- Conductor Size: 4 to 3 AWG (Stranded), 2 AWG (Solid)
- Stud Size: 5/16 Inch
- Barrel Type: Standard
- Holes: 1 Hole
- Inspection Window: Yes
- Length: 1.75 Inch
- Barrel Length: 0.81 Inch
- Outer Diameter: 0.38 Inch
- Approval: UL, CSA
- Voltage Rating: 35 Kilovolt
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
