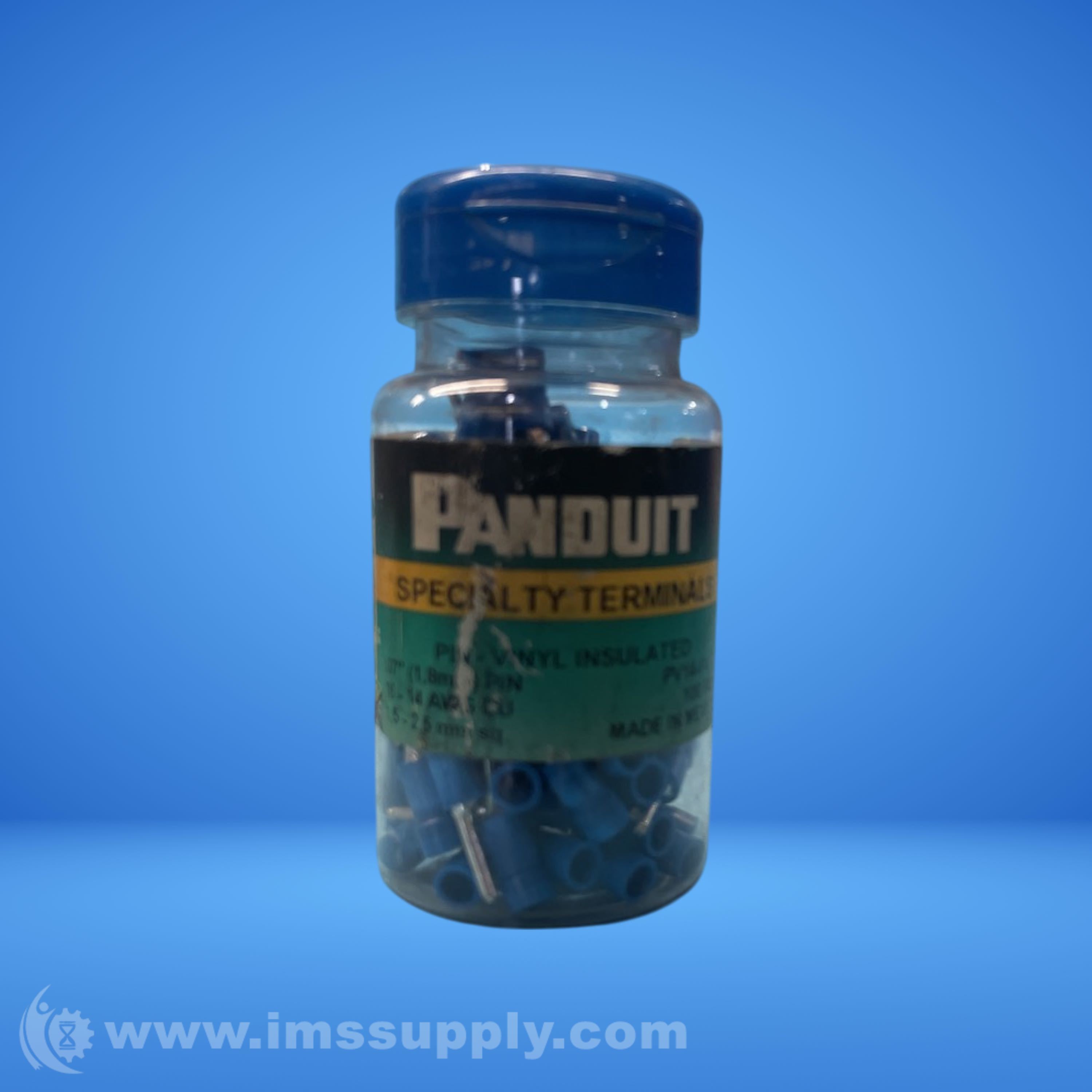

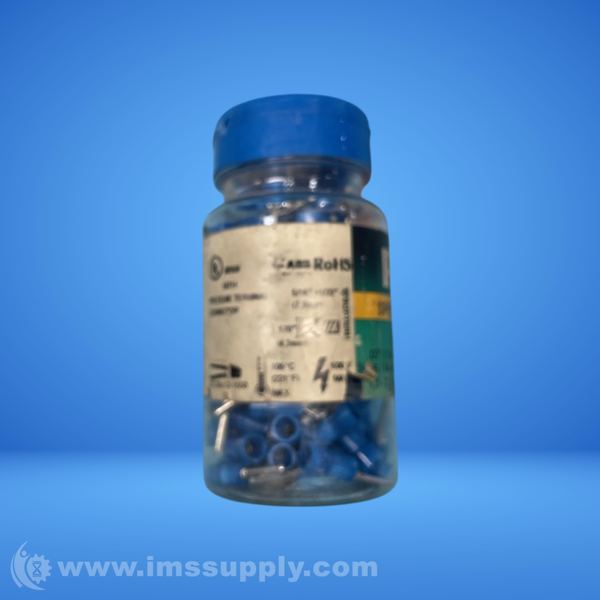

PANDUIT PV14-P47-C PIN TERMINAL
Quick Overview
Manufactured By: PANDUIT
Manufacturer Part Number: PV14-P47-C
IMS Product Code: 2127063
Packaging: Pack of 100
Description:
Panduit PV14-P47-C Pin Terminal
Vinyl insulated pin terminal for 16-14 AWG wire, blue color, tin-plated copper, 12.4mm pin length, 600V rated voltage.
Specifications
- AWG Range: 16 - 14 AWG
- Color: Blue
- Conductor Size: 16 to 14 AWG
- Finish: Tin-Plated
- Insulation Material: Vinyl
- Insulation Type: Vinyl Insulated
- Length: 0.97 in.
- Material: Copper
- Overall Length: 24.63mm
- Pin Diameter: 4.3mm
- Pin Length: 12.4mm
- Rated Voltage: 600V
- Standard: UL486A/B
- Temperature Rating: 221 Deg F
- Termination: Crimp
