PARKER 1.50CJ4MAU14AC08.00 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER CYLINDER DIVISION
Manufacturer Part Number: 1.50CJ4MAU14AC 08.00
IMS Product Code: 2150536
Packaging: Sold Individually
Description:

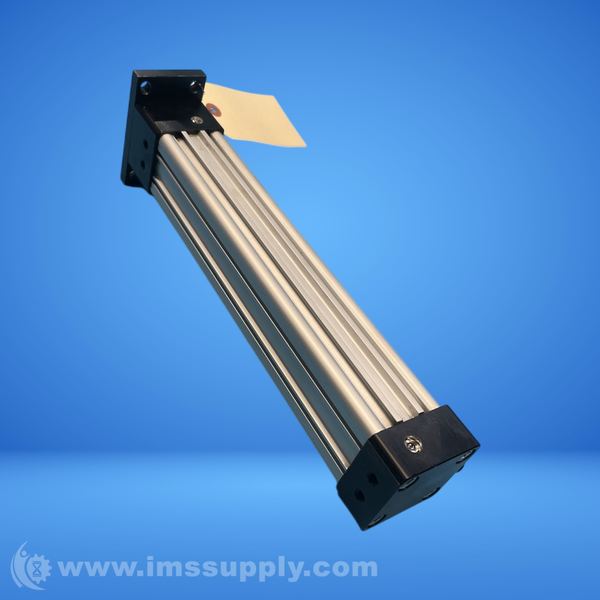

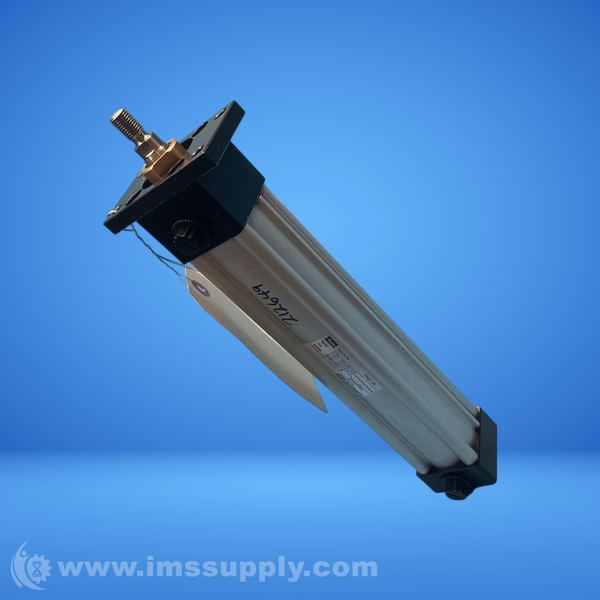

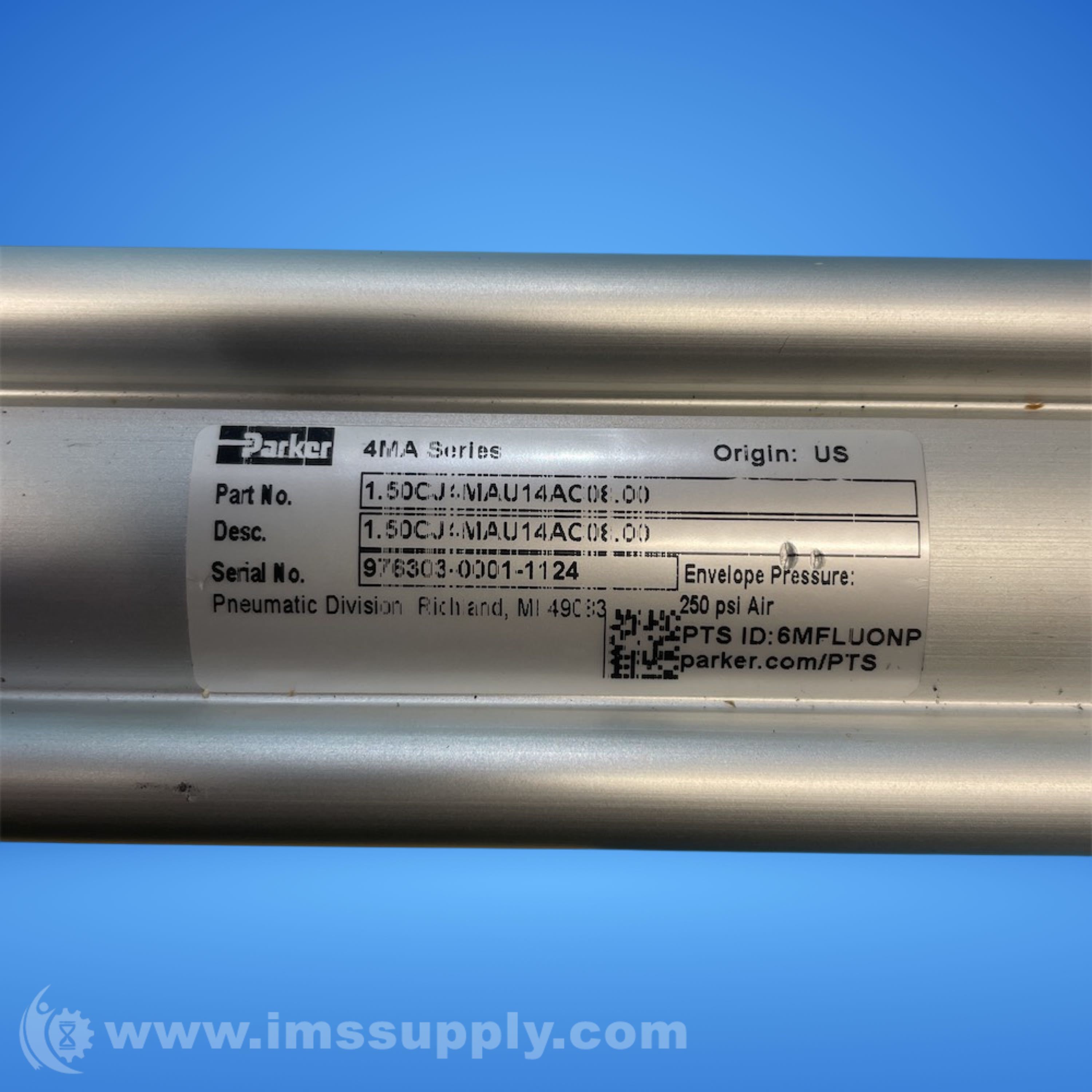

Parker 1.50CJ4MAU14AC08.00 Pneumatic Cylinder
Pneumatic cylinder with 1.5 inch bore, 8 inch stroke, and tie-rod construction
Specifications
- Bore Size: 1 1/2 Inch
- Cushions: Cushioned, Both Ends
- End Type: Single Rod
- Material: Clear Anodized Aluminum Alloy
- Max. Pressure: 250 psig
- Max. Temperature Range: 165 degrees F
- Min. Temperature Range: -10 degrees F
- Mounting Style Code: J
- Port Size: 3/8 Inch
- Port Type: NPTF
- Rod Diameter: 5/8 Inch
- Rod End Style: Male, Small
- Rod End Thread: 7/16-20
- Rod Material: Case Hardened, Chrome-Plated Carbon Steel
- Seal Material: Nitrile
- Seal Type: Lipseal
- Series: 4MA
- Stroke Length: 8 Inch
- Style: Tie Rod, NFPA
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
