PARKER 3.25CJ4MA3U14AC02.25 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER CYLINDER DIVISION
Manufacturer Part Number: 3.25CJ4MA3U14AC02.25
IMS Product Code: 2135250
Packaging: Sold Individually
Description:

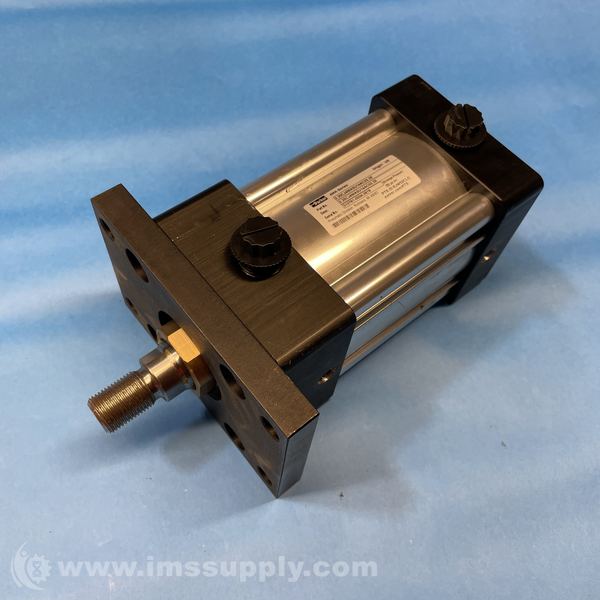

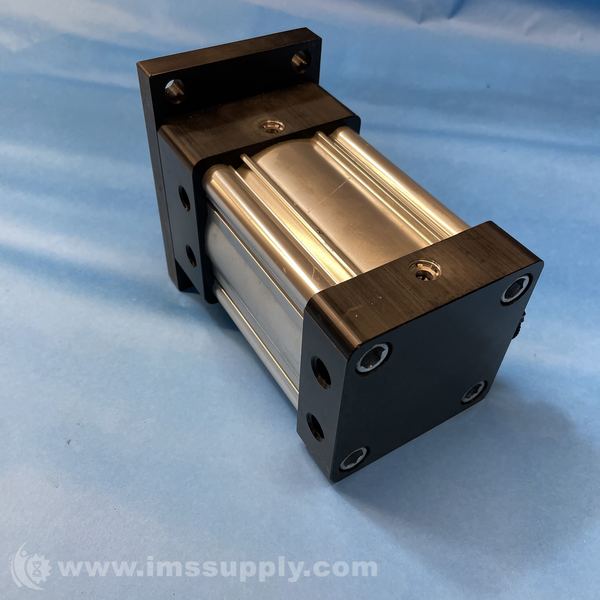

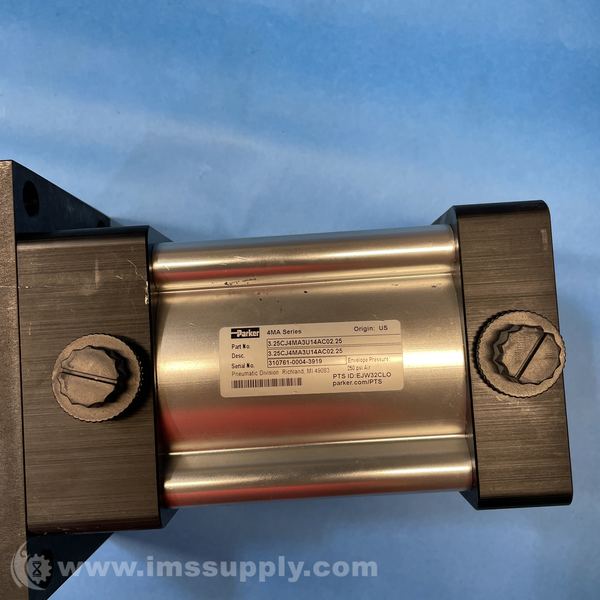

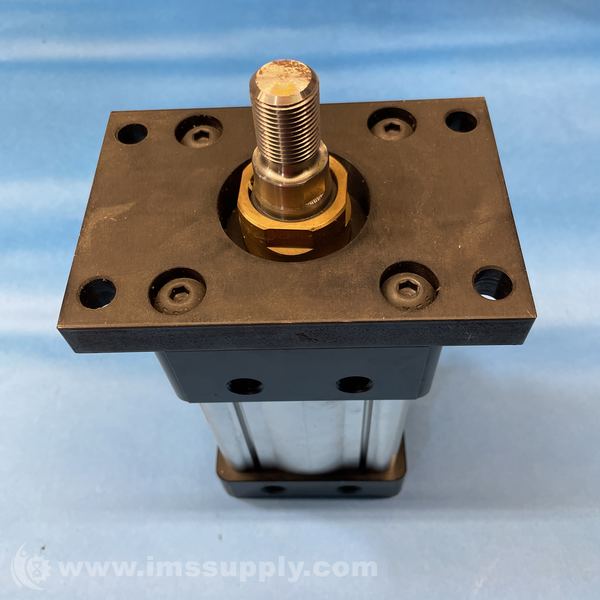

Parker 3.25CJ4MA3U14AC02.25 Pneumatic Cylinder
Pneumatic cylinder with 3 1/4 inch bore size and 2 1/4 inch stroke length.
Specifications
- Bore Size: 3 1/4 Inch
- Cushions: Cushioned, Both Ends
- End Type: Single Rod
- Material: Clear Anodized Aluminum Alloy
- Max. Pressure: 250 psig
- Max. Temperature Range: 165 degrees F
- Min. Temperature Range: -10 degrees F
- Mounting Style Code: J
- Piston Material: Aluminum
- Port Size: 1/2 Inch
- Port Type: NPTF
- Rod Diameter: 1 Inch
- Rod End Style: Male, Small
- Rod Material: Case Hardened, Chrome-Plated Carbon Steel
- Seal Material: Nitrile
- Series: 4MA
- Stroke Length: 2 1/4 Inch
- Style: Tie Rod, NFPA
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 44 minutes.
