PARKER D3W020BNJW DIRECTIONAL CONTROL VALVE
Quick Overview
Manufactured By: PARKER CYLINDER DIVISION
Manufacturer Part Number: D3W020BNJW
IMS Product Code: 2162655
Packaging: Sold Individually
Description:

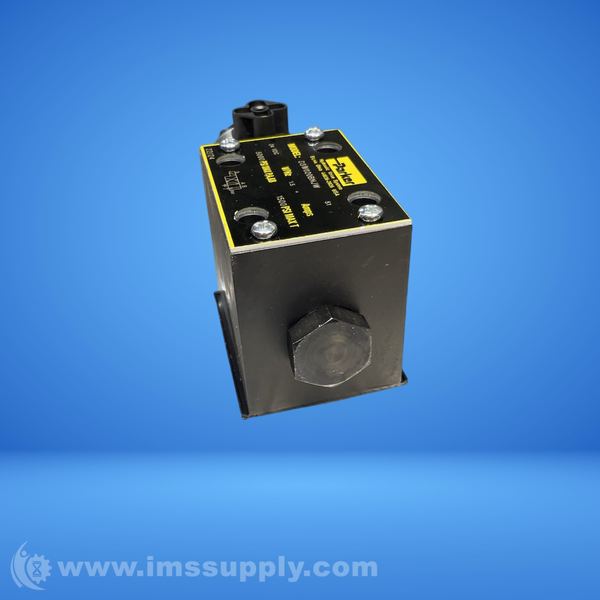

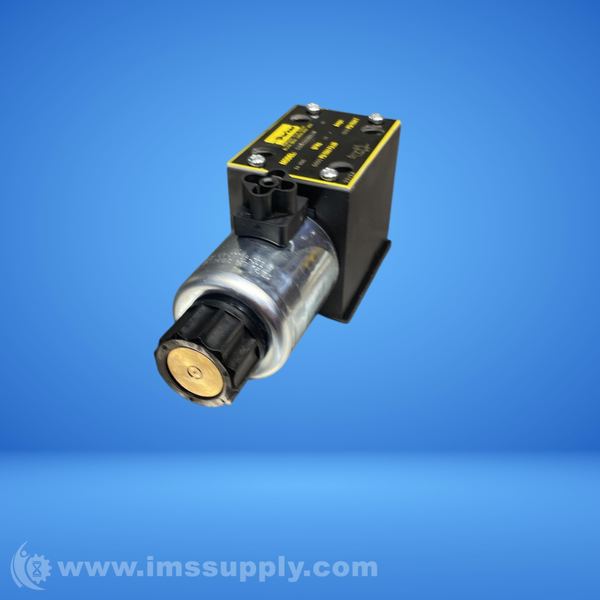

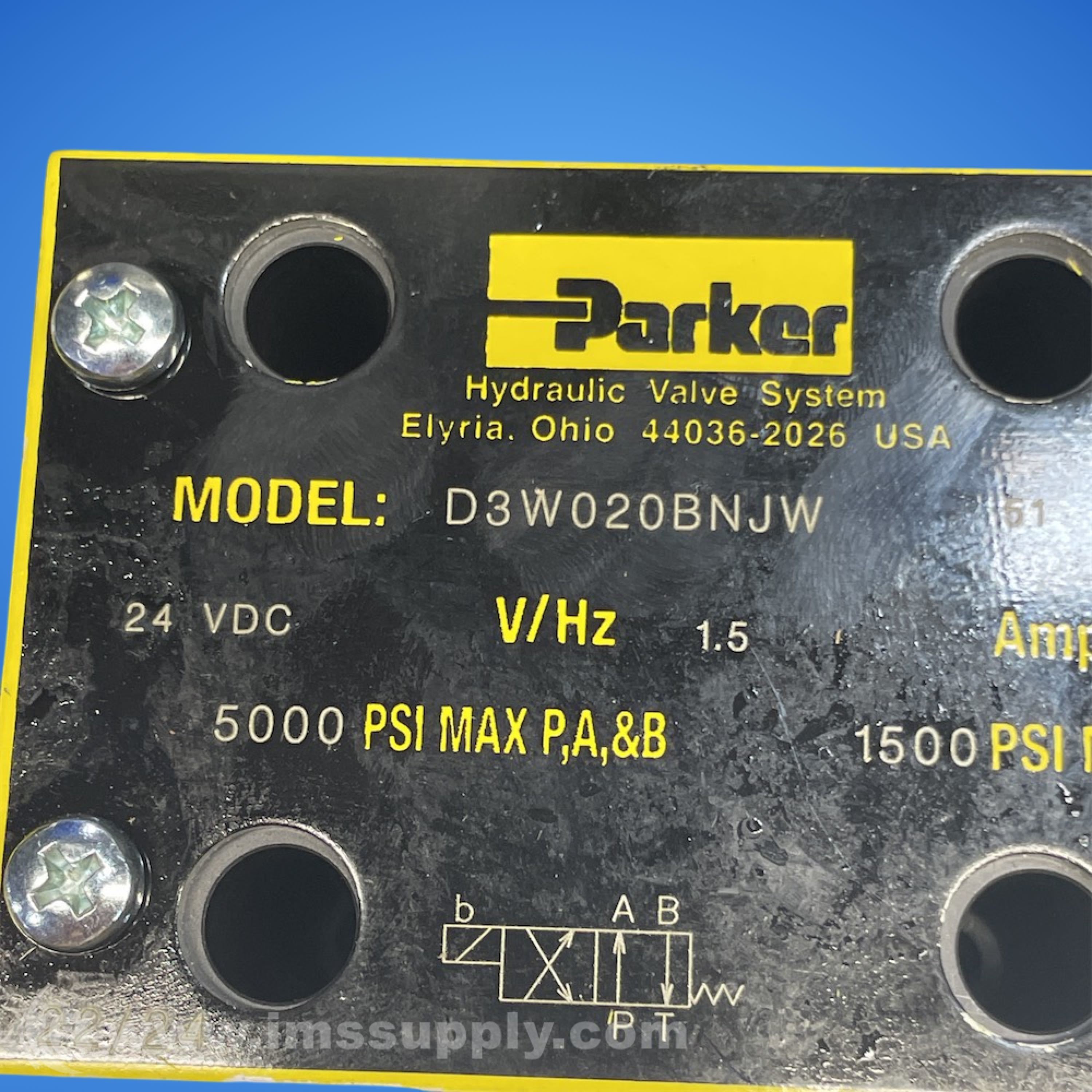

Parker D3W020BNJW Directional Control Valve
Parker's direct operated directional control valve series D3W in NG10 (CETOP 05/NFPA D05) features low energy losses due to optimized flow passages for economical operation. It offers high functional limits up to 150 l/min and a maximum pressure of 350 bar.
Specifications
- Input Voltage: 24 VDC
- Parker Division: Hydraulic Valve
- Parker Group: Hydraulic
- Seal Material: NBR
- Solenoid Option: With Manual Override
- Spool Code: 20
- Spool Position: 2 Positions, Spring Offset In Position B, Operated In Position A
- Weight: 4.54 kgs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
