PARKER 149F-6-8 BRASS 45° FLARE FITTING
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 149F-6-8
IMS Product Code: 1843896
Packaging: Sold Individually
Description:

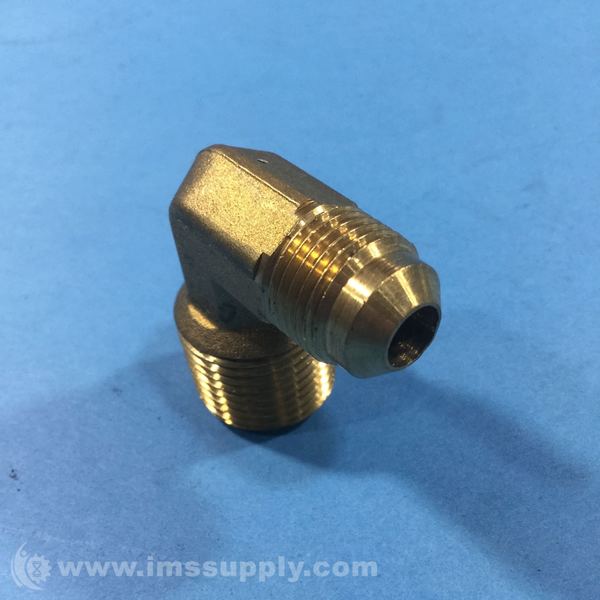

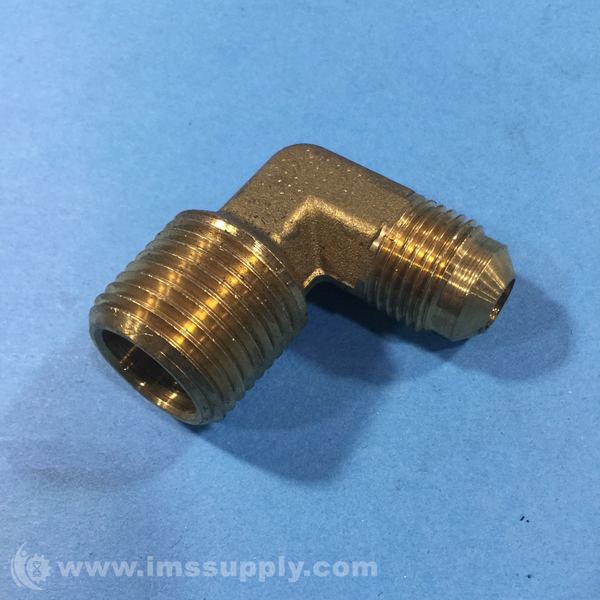

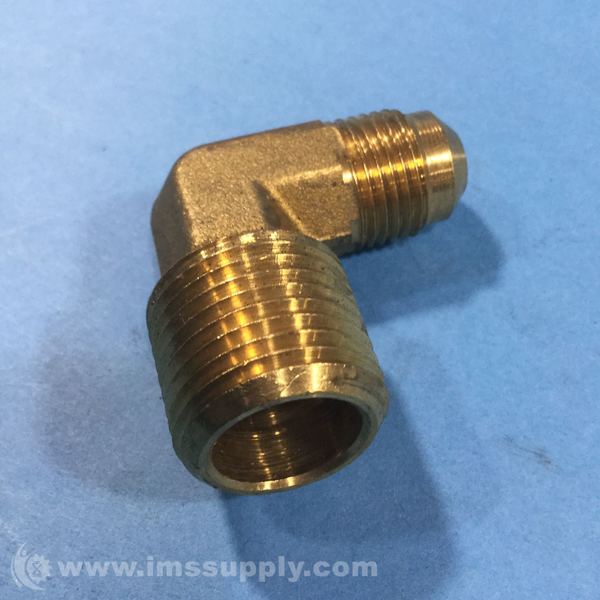

Parker 149F-6-8 Brass 45° Flare Fitting
Brass 45° flare fitting for metal-to-metal seal, designed for high pressure service with exceptional resistance to mechanical pullout. Meets SAE J512 and J513 standards.
Specifications
- Body Material: Brass
- Nut Material: Brass
- O-Ring Material: Fluorocarbon
- Maximum Operating Temperature: 121 degrees C
- Minimum Operating Temperature: -53 degrees C
- Maximum Operating Pressure: 68.9 bar
- Connection 1 Type: Flare
- Connection 1 Tube Outside Diameter: 3/8 inch
- Connection 2 Type: Male Pipe
- Connection 2 Thread Size: 1/2 inch
- Shape: 90° Forged Elbow
- Product Style: Flare to Pipe
- Tube Material: Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
- Media: Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
- Application: Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
