PARKER 16-6BP COUPLER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 16-6BP
IMS Product Code: 1827363
Packaging: Sold Individually
Description:

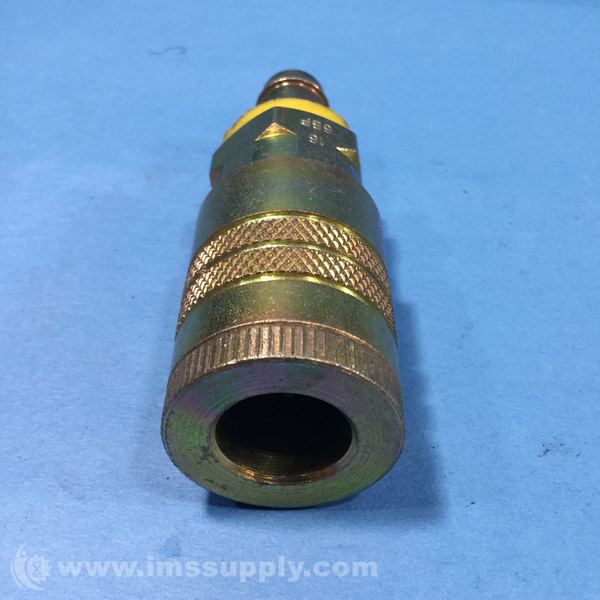

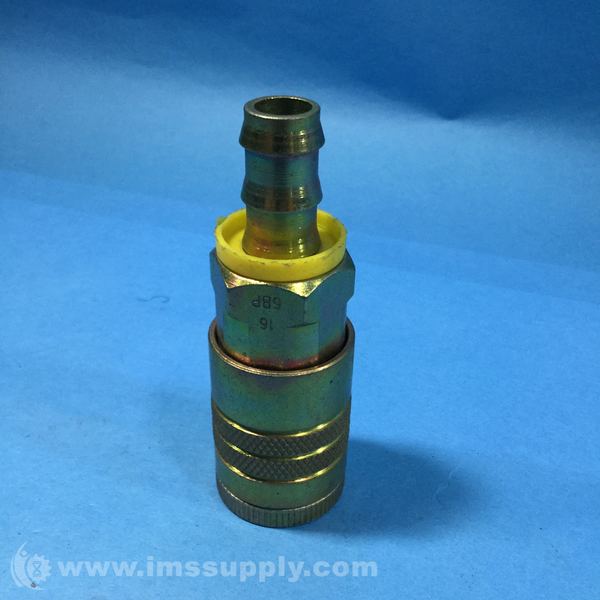

Parker 16-6BP Coupler
Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Specifications
- Body Size: 1/2 Inch
- Hose I.D.: 1/2
- Material: Steel
- Max Pressure Range: 300 PSI
- Configuration Type: Push-lok Hose Barb
- Application: Pneumatic
- Series: 20 Series
- Minimum Operating Temperature: -40 °F
- Seal Material: Nitrile
- Maximum Operating Pressure: 300 psi
- Maximum Operating Temperature: 250 °F
- Plating Type: Zinc with clear trivalent chromate
- Valve Type: Tubular
- Lock Type: Locking balls
- Sleeve Type: Manual
- Media: Low pressure fluids and compressed air
- Body Material: Steel
- Connection Type: Push-Lok hose barb
- Connection Hose I.D. (inch): 1/2
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
