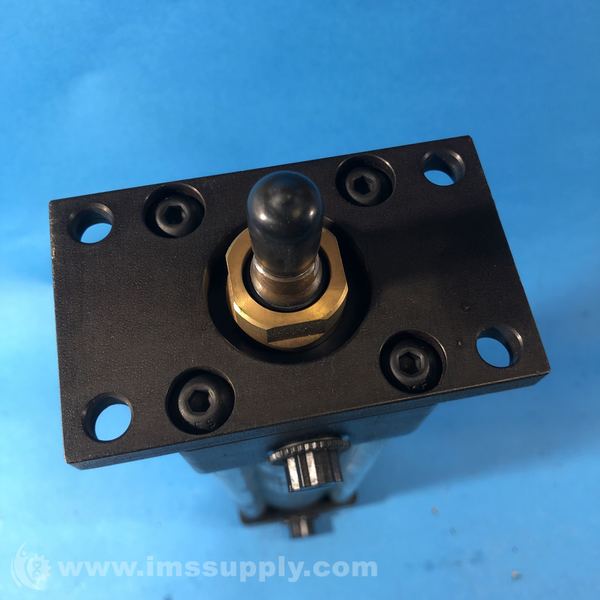

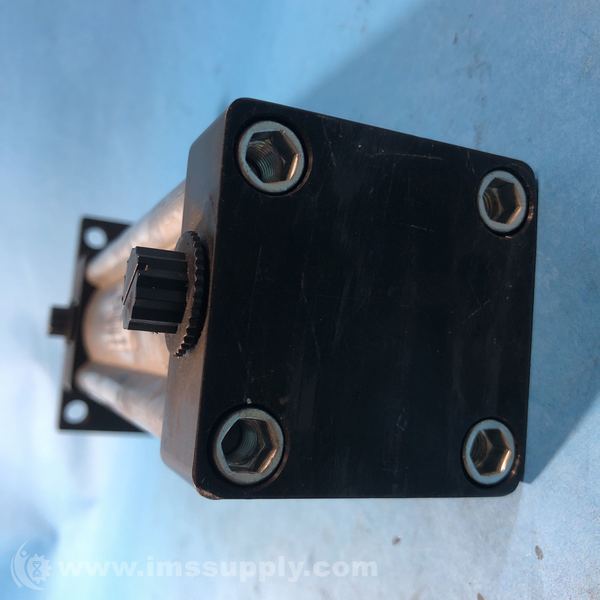

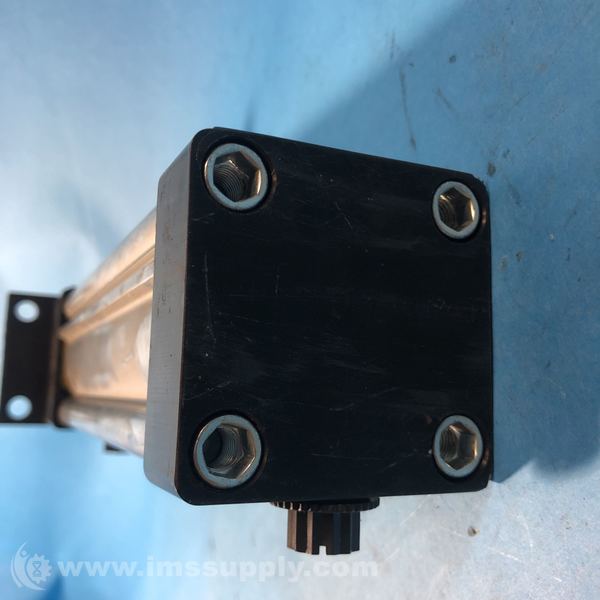

PARKER 2.00J4MADU14A06.00 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 2.00J4MADU14A06.00
IMS Product Code: 1927905
Packaging: Sold Individually
Description:
Parker 2.00J4MADU14A06.00 Pneumatic Cylinder
Pneumatic cylinder with 2-inch bore size and 6-inch stroke length.
Specifications
- Bore Size: 2 Inch
- Bumper Thickness: 1/4 Inch
- Bumpers: w/Bumpers, Both Ends
- Corrosion Resistant: Yes
- Cushions: Non Cushioned
- End Type: Single Rod
- Filter Media: Filtered Air
- Filtration Required: 40 micron
- Lube Specification: Non Lube Design
- Magnetic Ring: Yes
- Material: Clear Anodized Aluminum Alloy
- Max. Pressure: 250 psig
- Max. Temperature Range: 165 F
- Min. Temperature Range: -10 F
- Mounting Style Code: J
- Mounting Style: MF1
- Piston No.: 1
- Port Size: 3/8 Inch
- Port Type: NPTF
- Rod Diameter: 5/8 Inch
- Rod End Style: Male, Small
- Rod End Thread: 7/16-20
- Rod Material: Case Hardened, Chrome-Plated Carbon Steel
- Rod Thread Type: UNF
- Seal Material: Nitrile
- Seal Type: Lipseal
- Series: 4MA
- Stroke Length: 6 Inch
- Style: Tie Rod, NFPA
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 53 minutes.
