PARKER 2.00TEF4MA3U14A06.00 TIE ROD PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 2.00TEF4MA3U14A06.00
IMS Product Code: 2153033
Packaging: Sold Individually
Description:

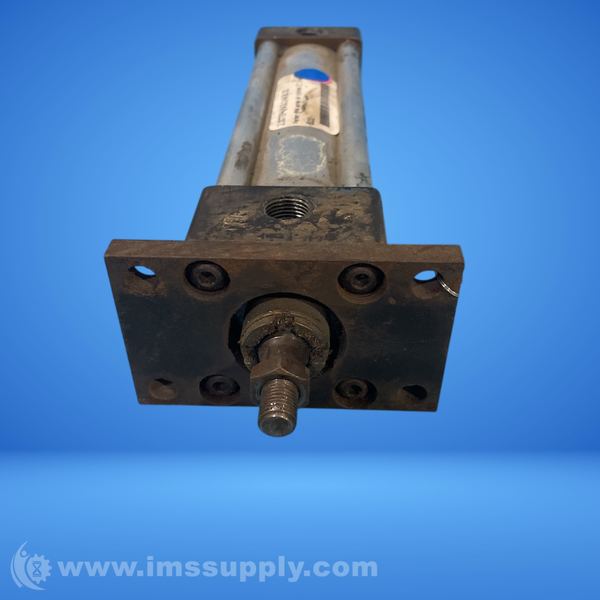

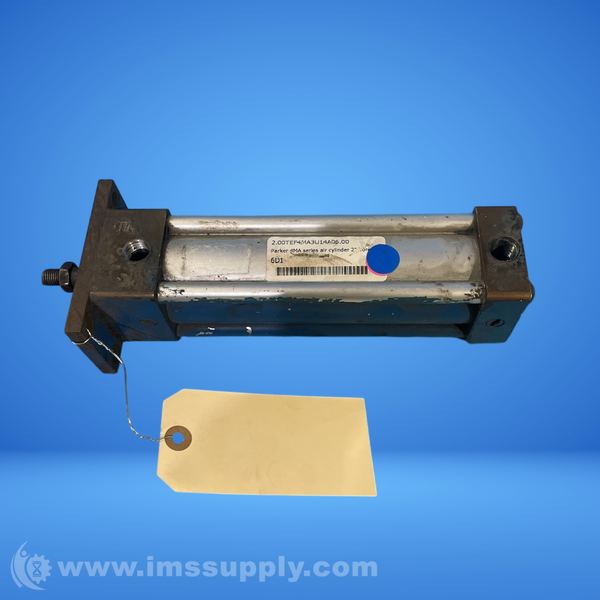

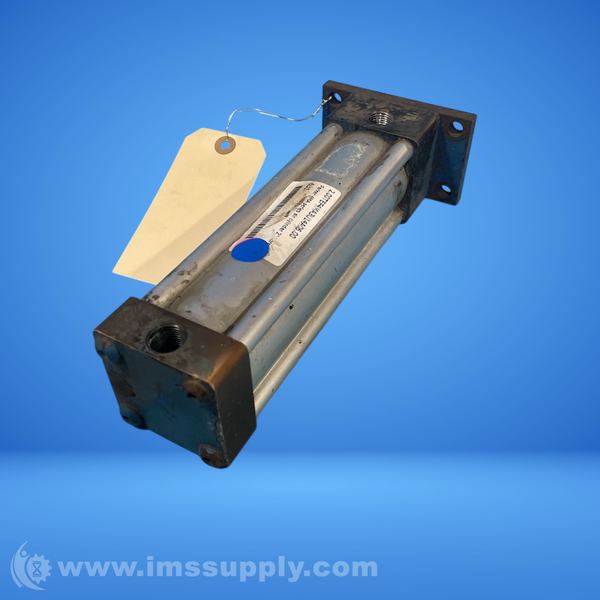

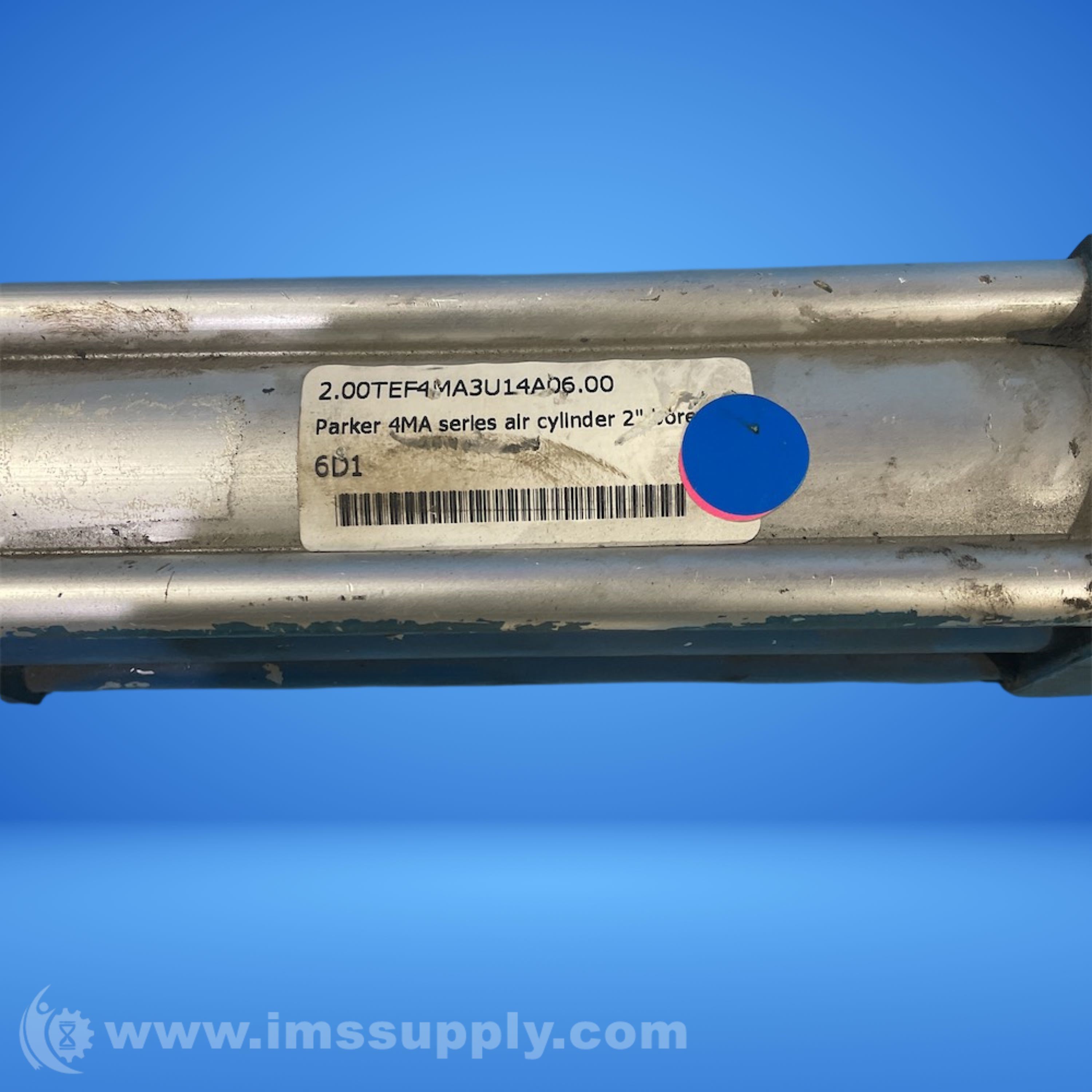

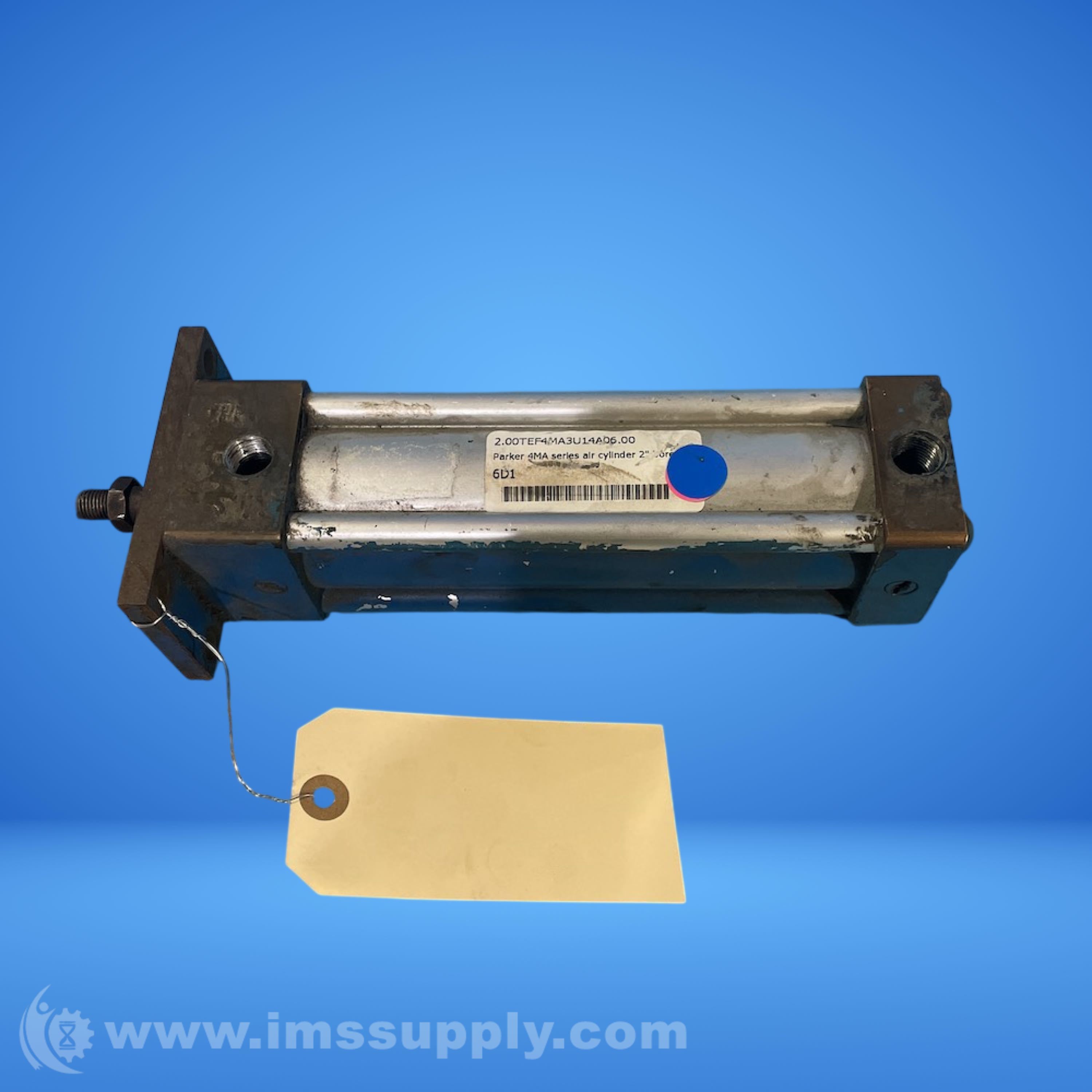

Parker 2.00TEF4MA3U14A06.00 Tie Rod Pneumatic Cylinder
Pneumatic cylinder with 2 inch bore and 6 inch stroke, tie rod design, non-cushioned, with sleeve nut and side tap mounting.
Specifications
- Bore Size: 2 in
- Stroke Length: 6 Inch
- Port Size: 3/8 Inch
- Rod Diameter: 5/8 Inch
- Rod End Thread: 7/16-20
- Pressure [Max]: 250 psig
- Temperature Range [Min]: -10 °F
- Temperature Range [Max]: 165 °F
- Seal Material: Nitrile
- Seal Type: Lipseal
- Piston Material: Aluminum
- Rod Material: Case Hardened Chrome-Plated Carbon Steel
- Cylinder Material: Clear Anodized Aluminum Alloy
- Mounting Style Code: TEF
- Mounting Style: MS4 - MX5
- Cylinder Style: Tie Rod, NFPA
- End Type: Single Rod
- Rod End Style: Male, Small
- Rod Thread Type: UNF
- Filtration Requirement: 40 micron
- Filter Media: Filtered Air
- Lube Specification: Non Lube Design
- Magnetic Ring: Yes
- Corrosion Resistant: Yes
- Cushions: Noncushioned
- Bumpers: w/o Bumpers
- Port Type: NPTF
- Series: 4MA
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
