PARKER 2.50CBC4MA3U14AC08.00 NFPA ALUMINUM AIR CYLINDER
Quick Overview
Manufactured By: PARKER

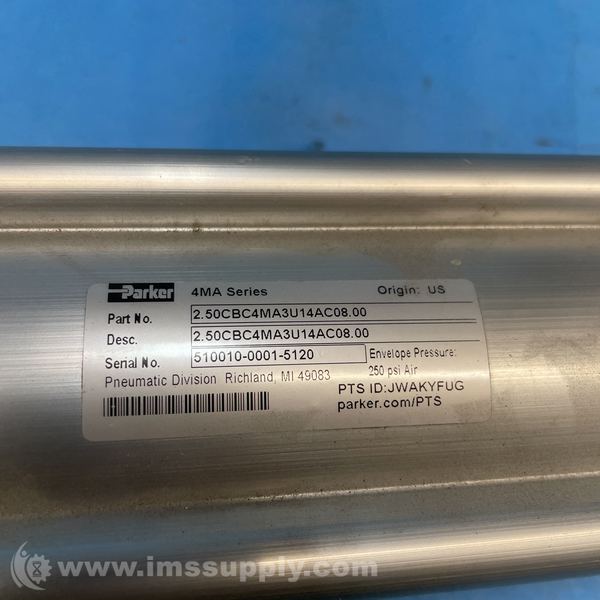

Manufacturer Part Number: 2.50CBC4MA3U14AC08.00
IMS Product Code: 2137101
Packaging: Sold Individually
Description:

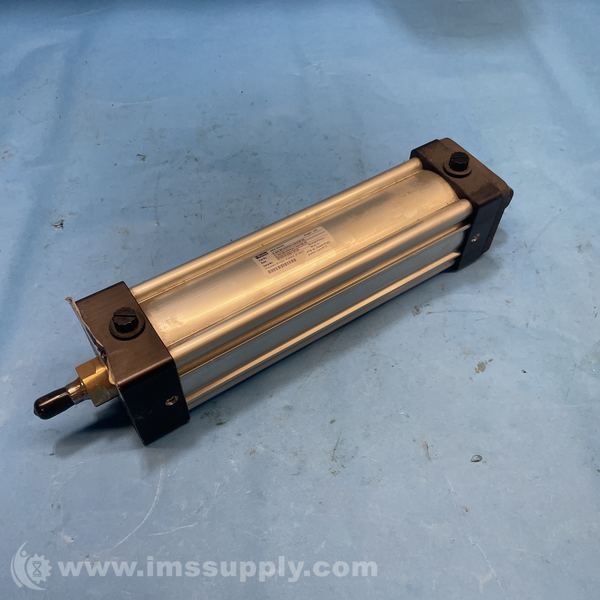

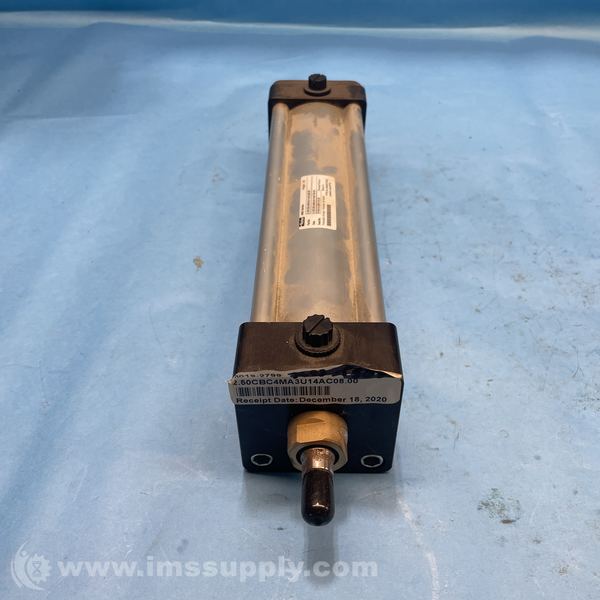

Parker 2.50CBC4MA3U14AC08.00 NFPA Aluminum Air Cylinder
Pneumatic cylinder with 2-1/2" bore, 8" stroke, and cap detachable clevis mounting.
Specifications
- Bore: 2-1/2"
- Series: 4MA
- Rod Diameter: 5/8"
- Stroke: 8"
- Cylinder Material: Aluminum

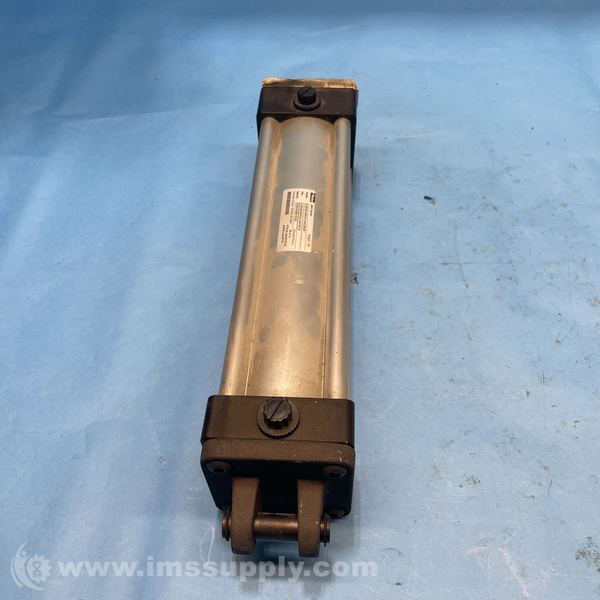

- Mounting Style: Cap Detachable Clevis
- Cushioning: Cushion Head and Cap
- Seals: Lipseals and Magnetic Ring
- Piston Rod Thread: Small Male Piston Rod Thread
- Port Type: NPT
- Operating Pressure: 250 PSIG (17bar)
- Temperature Range: -10°F to 165°F (-23°C to 74°C)
- Filtration Requirements: 40 micron
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 24 minutes.
