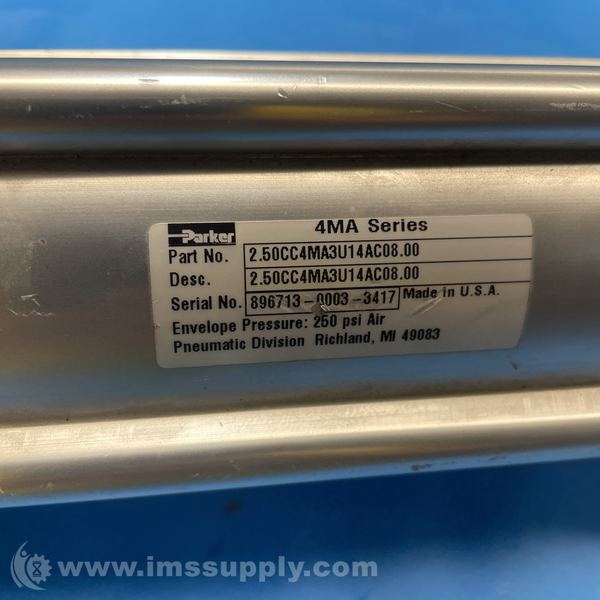

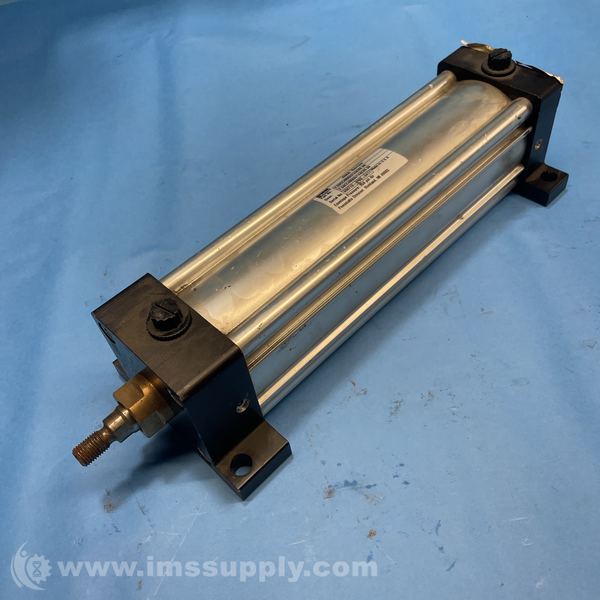

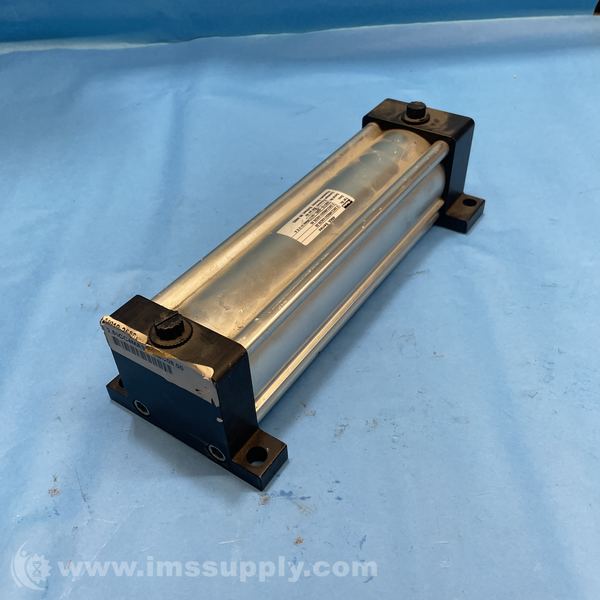

PARKER 2.50CC4MA3U14AC08.00 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 2.50CC4MA3U14AC08.00
IMS Product Code: 2137202
Packaging: Sold Individually
Description:
Parker 2.50CC4MA3U14AC08.00 Pneumatic Cylinder
Pneumatic cylinder with 2 1/2 inch bore size and 8 inch stroke length.
Specifications
- Bore Size: 2 1/2 Inch
- Cushions: Cushioned, Both Ends
- End Type: Single Rod
- Material: Clear Anodized Aluminum Alloy
- Max. Pressure: 250 psig
- Max. Temperature Range: 165 °F
- Min. Temperature Range: -10 °F
- Mounting Style Code: C
- Piston Material: Aluminum
- Port Size: 3/8 Inch
- Port Type: NPTF
- Rod Diameter: 5/8 Inch
- Rod End Style: Male, Small
- Rod Material: Case Hardened, Chrome-Plated Carbon Steel
- Seal Material: Nitrile
- Seal Type: Lipseal
- Series: 4MA
- Stroke Length: 8 Inch
- Style: Tie Rod, NFPA
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, October 20, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
