PARKER 3.25CH4MA3U14AC11.00 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 3.25CH4MA3U14AC11.00
IMS Product Code: 2161369
Packaging: Sold Individually
Description:

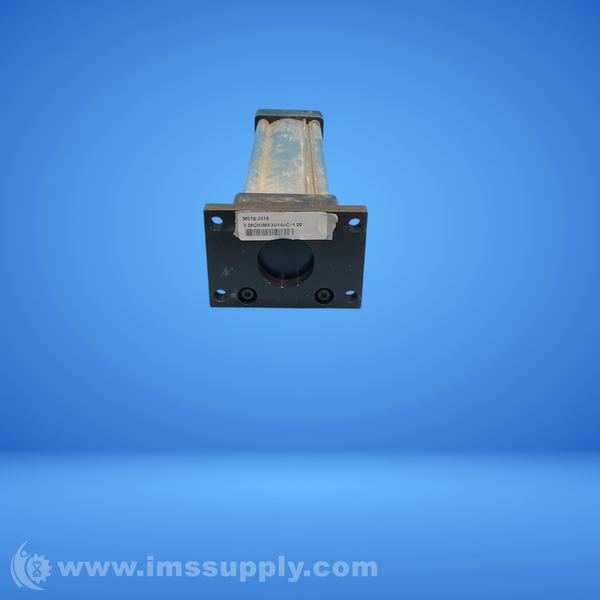

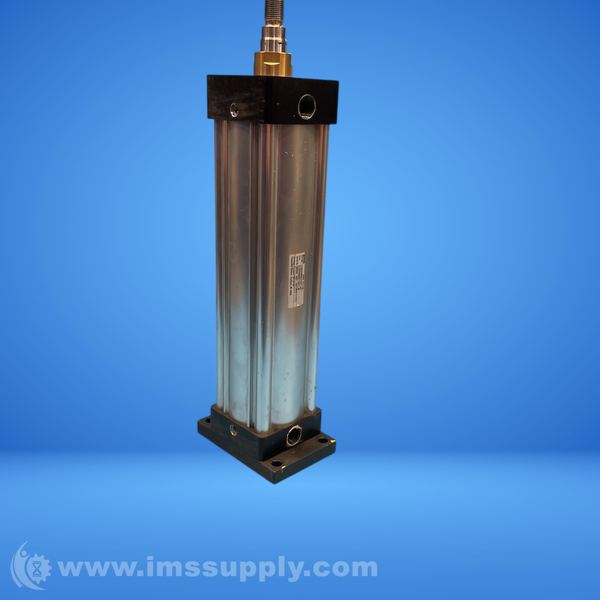

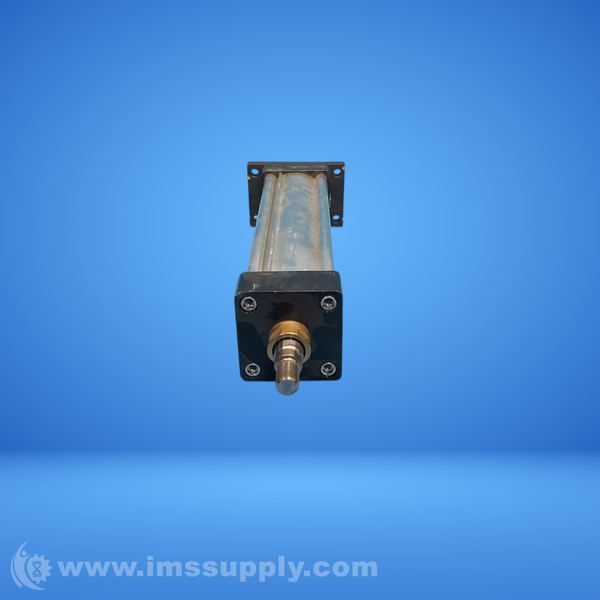

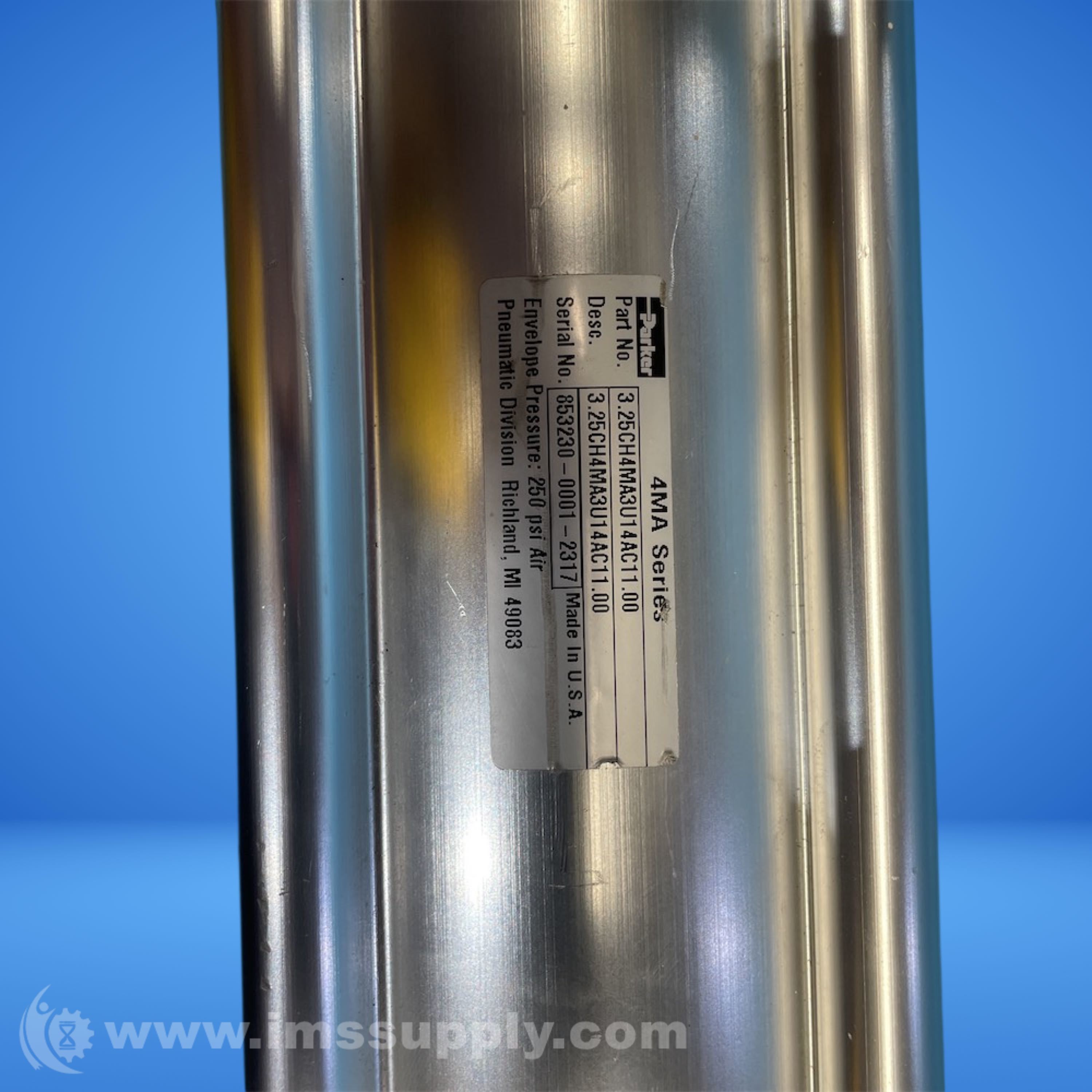

Parker 3.25CH4MA3U14AC11.00 Pneumatic Cylinder
Pneumatic cylinder with 3 1/4 inch bore size and 11 inch stroke length.
Specifications
- Bore Size: 3 1/4 Inch
- Cushions: Cushioned, Both Ends
- End Type: Single Rod
- Material: Clear Anodized Aluminum Alloy
- Max. Pressure: 250 psig
- Max. Temperature Range: 165 F
- Min. Temperature Range: -10 F
- Mounting Style: MF2
- Piston Material: Aluminum
- Port Size: 1/2 Inch
- Port Type: NPTF
- Rod Diameter: 1 Inch
- Rod End Style: Male, Small
- Rod Material: Case Hardened, Chrome-Plated Carbon Steel
- Seal Material: Nitrile
- Seal Type: Lipseal
- Series: 4MA
- Stroke Length: 11 Inch
- Style: Tie Rod, NFPA
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
