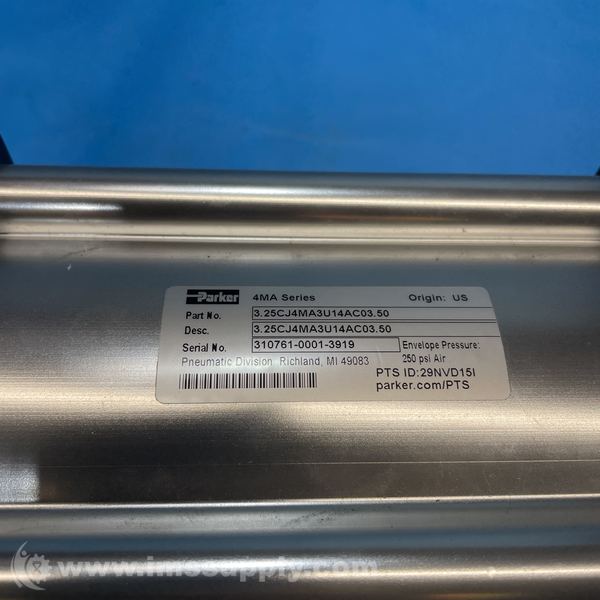

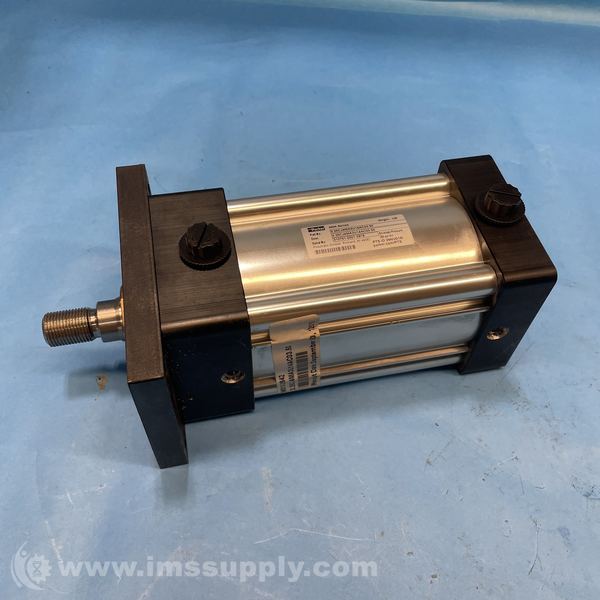

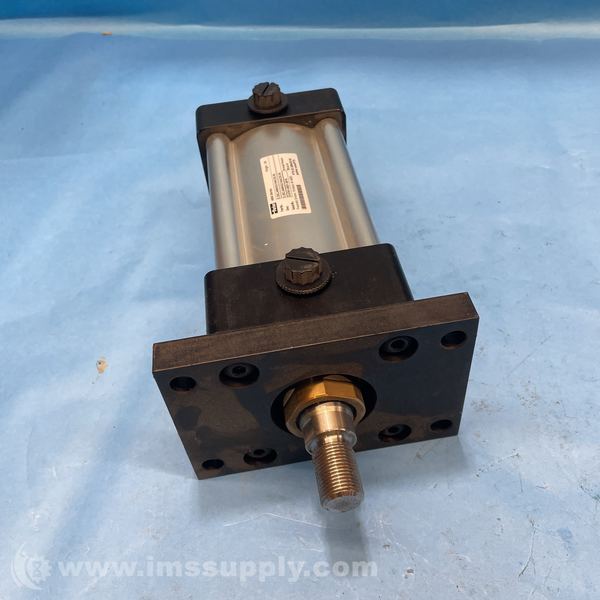

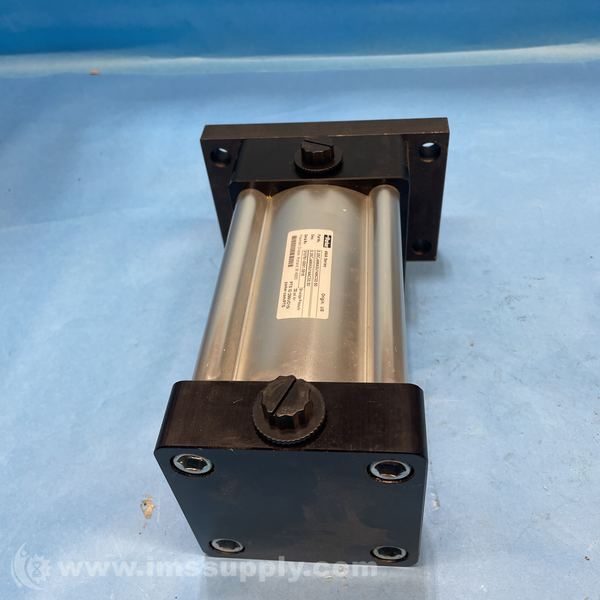

PARKER 3.25CJ4MA3U14AC03.50 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 3.25CJ4MA3U14AC03.50
IMS Product Code: 2137023
Packaging: Sold Individually
Description:
Parker 3.25CJ4MA3U14AC03.50 Pneumatic Cylinder
Pneumatic cylinder with 3 1/4 inch bore size and 3 1/2 inch stroke length.
Specifications
- Bore Size: 3 1/4 Inch
- Cushions: Cushioned, Both Ends
- End Type: Single Rod
- Material: Clear Anodized Aluminum Alloy
- Max. Pressure: 250 psig
- Max. Temperature Range: 165 degrees F
- Min. Temperature Range: -10 degrees F
- Mounting Style Code: J
- Piston Material: Aluminum
- Port Size: 1/2 Inch
- Port Type: NPTF
- Rod Diameter: 1 Inch
- Rod End Style: Male, Small
- Rod Material: Case Hardened, Chrome-Plated Carbon Steel
- Seal Material: Nitrile
- Seal Type: Lipseal
- Series: 4MA
- Stroke Length: 3 1/2 Inch
- Style: Tie Rod, NFPA
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
