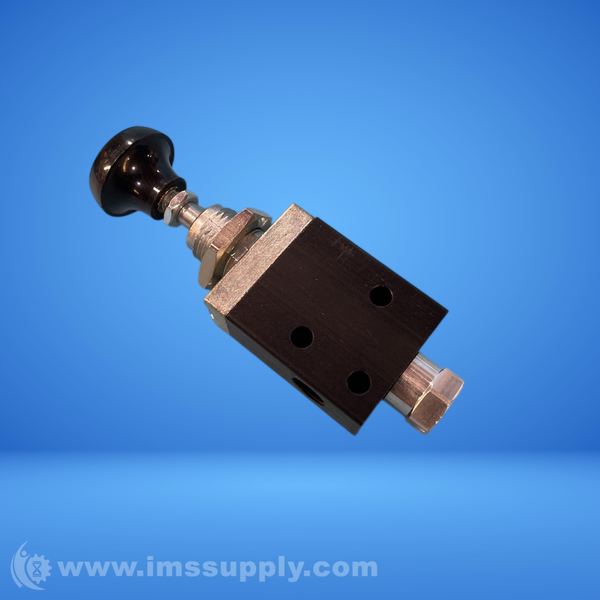

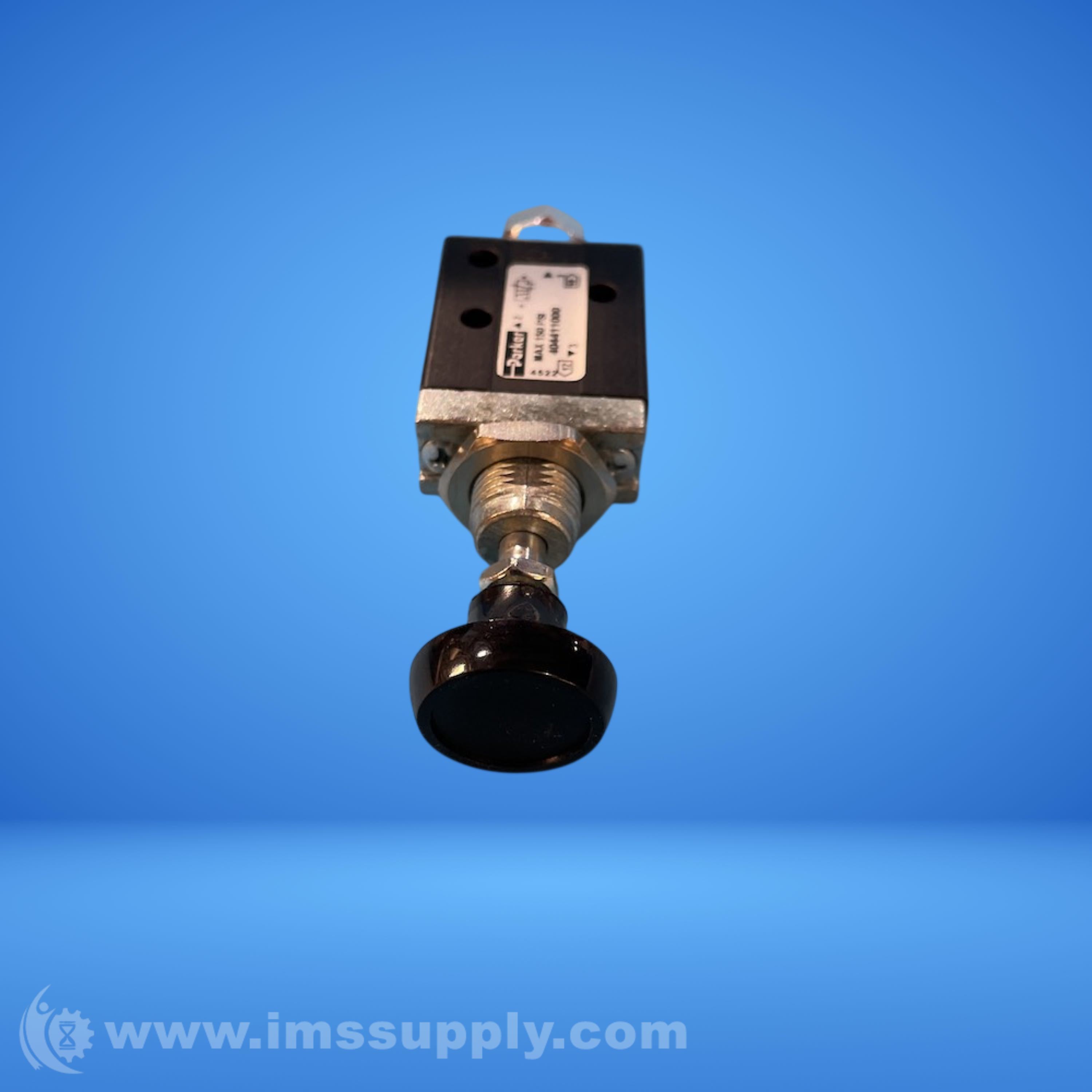

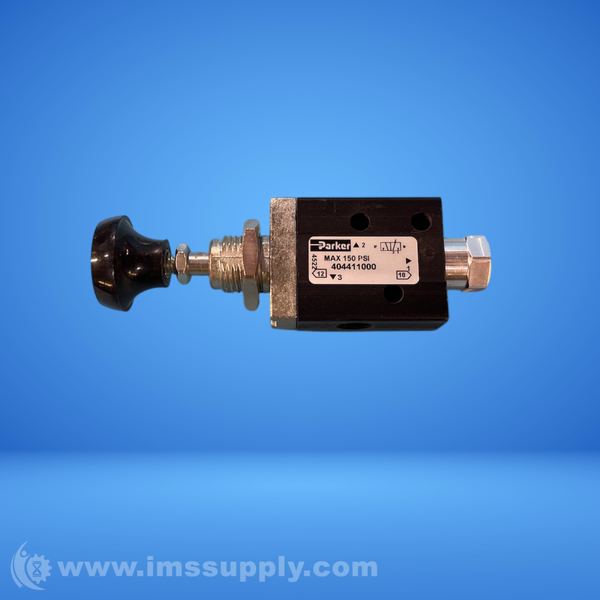

PARKER 404411000 MANUAL AIR CONTROL VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 404411000
IMS Product Code: 2161951
Packaging: Sold Individually
Description:
Parker 404411000 Manual Air Control Valve
Three-Way, Two-Position Manual Air Control Valve with Button Actuator, 1/8 in Female NPT Connection
Specifications
- Series: DirectAir 2
- Product Type: Manual Air Control Valve
- Actuator Type: Button
- Body Material: Aluminum
- Coefficient of Volume (Cv): 0.17
- Center Position: Closed
- Valve Action: Normally Closed
- Return Action: Spring Return
- Valve Type: Poppet
- Number of Positions: Two-Position
- Number of Ways: Three-Way
- Overall Height: 1-5/16 in
- Overall Width: 5/8 in
- Overall Length: 4-1/8 in
- Seal Material: Fluorocarbon/Nitrile
- Lubrication: Lubrication Not Required
- For Media: Air
- Valve Port Connection Gender: Female
- Valve Port Connection Size: 1/8 in
- Valve Port Connection Type: NPT
- Operating Pressure - Minimum: 0 psi
- Operating Pressure - Maximum: 150 psi
- Operating Temperature - Minimum: 32 degrees F
- Operating Temperature - Maximum: 175 degrees F
- Vacuum Rating: Vacuum Operable
- Body Style: Inline
- Poppet Material: Nylon
- Standards: CE Certified; RoHS Compliant
- Exhaust Port Connection Type: Threaded
- Exhaust Port Connection Gender: Female
- Exhaust Port Connection Size: 1/8 in
- Number of Ports: 3
