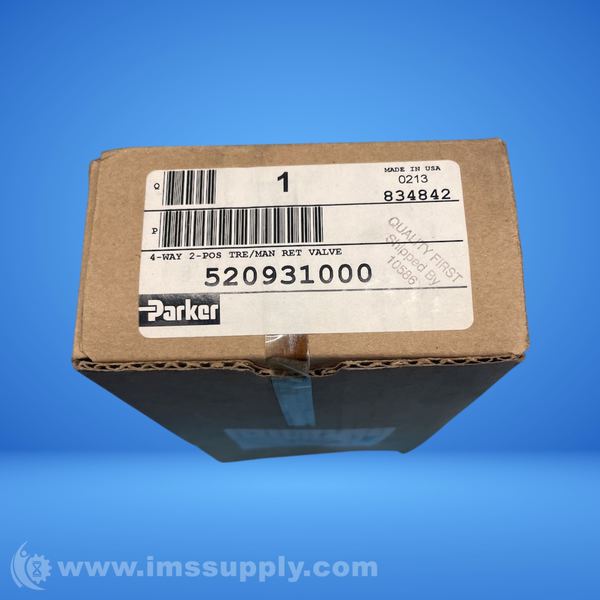

PARKER 520931000 4-WAY 2-POSITION MANUAL AIR CONTROL VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 520931000
IMS Product Code: 2131292
Packaging: Sold Individually
Description:
Parker 520931000 4-Way 2-Position Manual Air Control Valve
Parker DirectAir 4 series manual air control valves are manually actuated for accurate air or gas flow control in pneumatic systems. They are suitable for packaging, conveyance, and assembly applications in automotive, general industrial, and factory automation. Each valve is manufactured in aluminum with a stainless steel spool, and actuation options include roller, lever, foot pedal, treadle, or palm button.
Specifications
- Series: DirectAir 4
- Product Type: Manual Air Control Valve
- Actuator Type: Foot Pedal/Treadle-Manual Return
- Body Material: Aluminum
- Coefficient of Volume (Cv): 0.83
- Return Action: Manual Return
- Valve Type: Spool
- Number of Positions: 2
- Number of Ways: 4-Way
- Overall Height: 2-3/8 in
- Overall Width: 3-1/2 in
- Overall Length: 7-7/16 in
- Seal Material: Buna-N
- Lubrication: Lubrication Not Required
- For Media: Air
- Valve Port Connection Gender: Female
- Valve Port Connection Size: 1/4 in
- Valve Port Connection Type: NPT
- Operating Pressure - Minimum: 0 psi
- Operating Pressure - Maximum: 150 psi
- Operating Temperature - Minimum: 32 degrees F
- Operating Temperature - Maximum: 175 degrees F
- Vacuum Rating: Vacuum Operable
- Body Style: Inline
- Poppet Material: Nylon
- Spacer Material: Zinc
- Bushing Material: Brass
- Standards: CE Certified; RoHS Compliant
- Exhaust Port Connection Type: Threaded
- Exhaust Port Connection Gender: Female
- Exhaust Port Connection Size: 1/4 in
- Number of Ports: 5

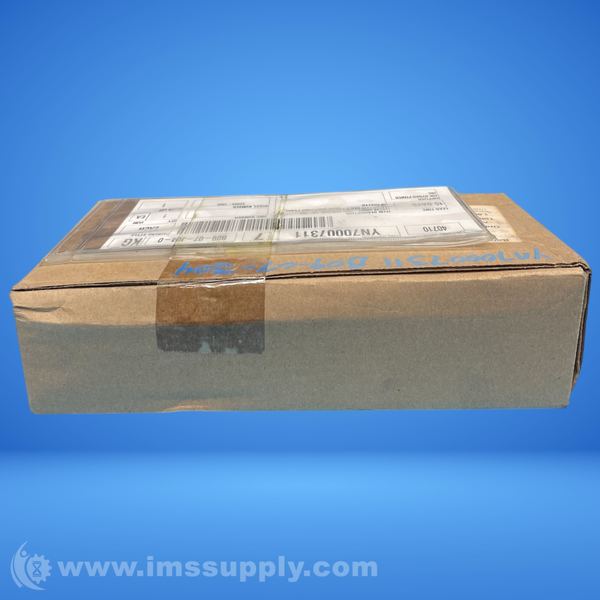

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
