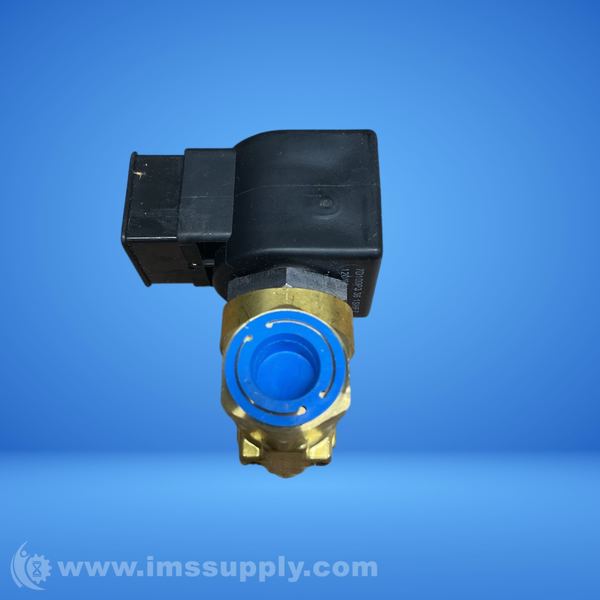

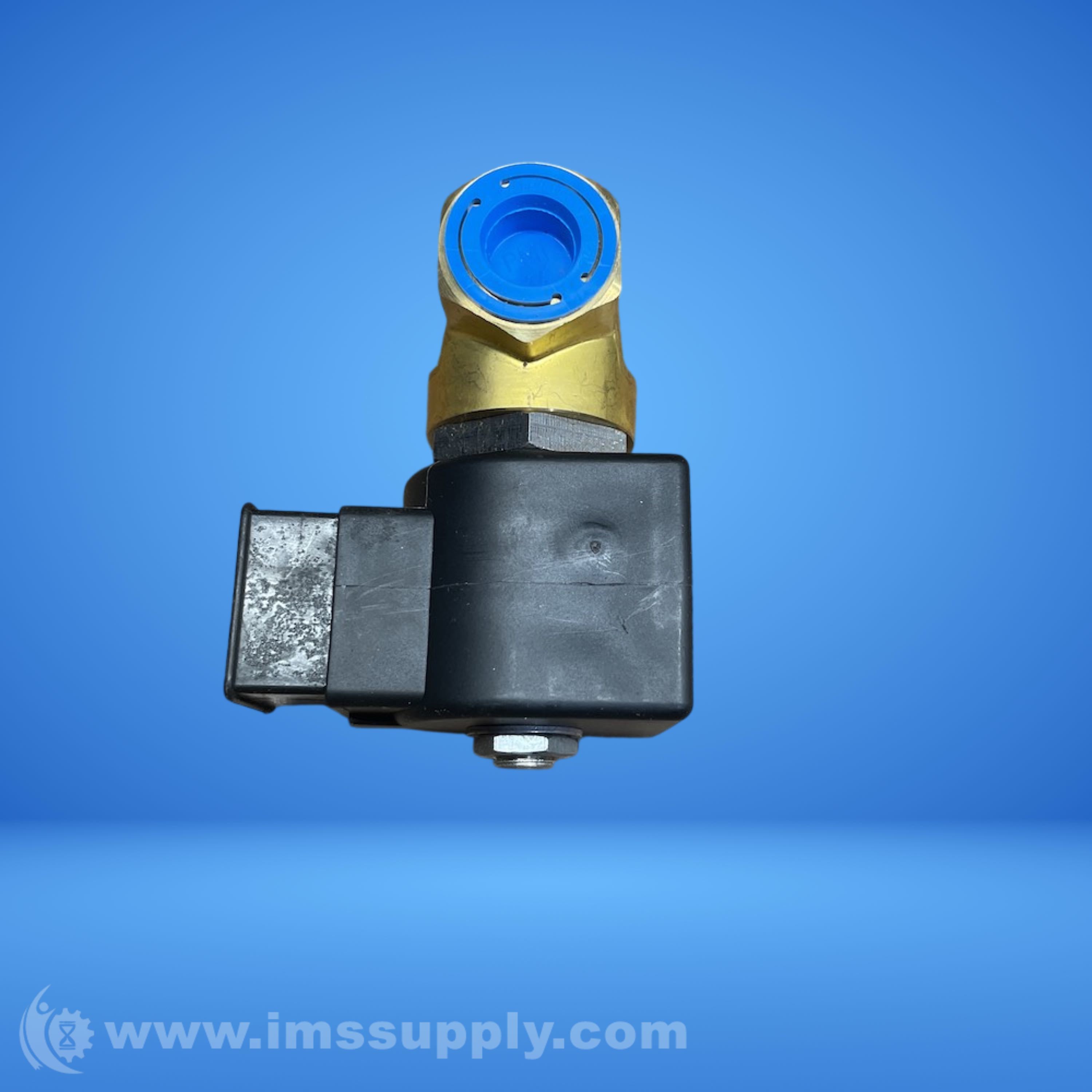

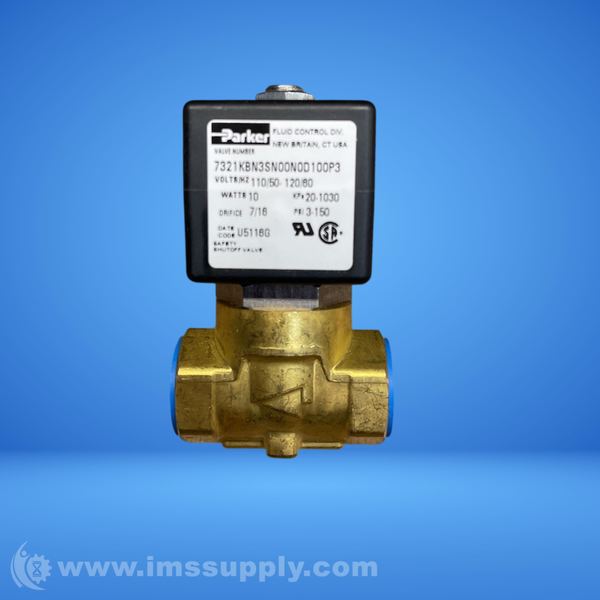

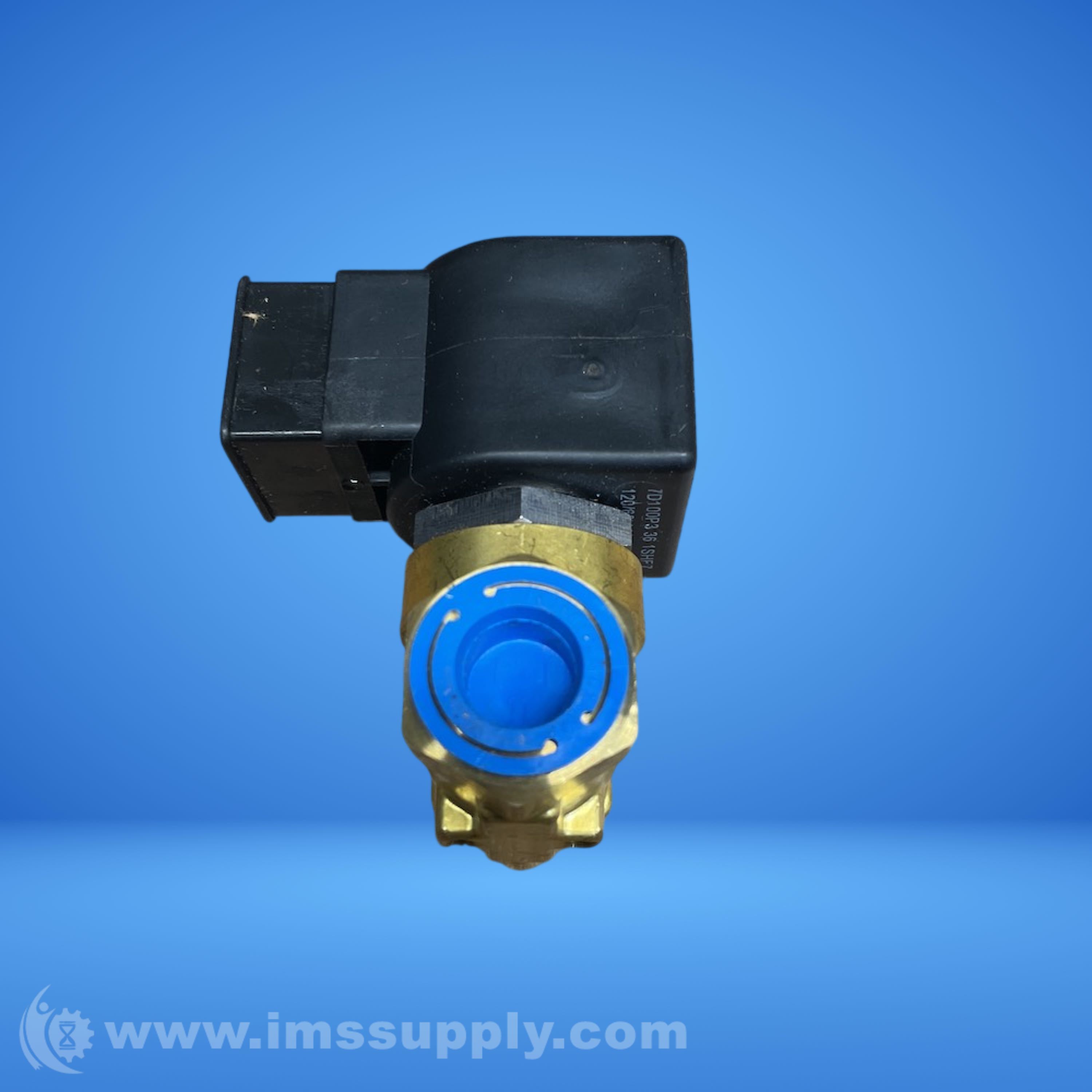

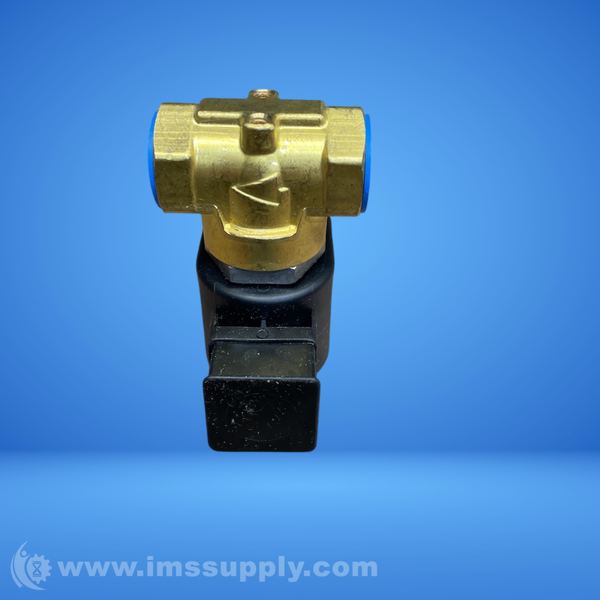

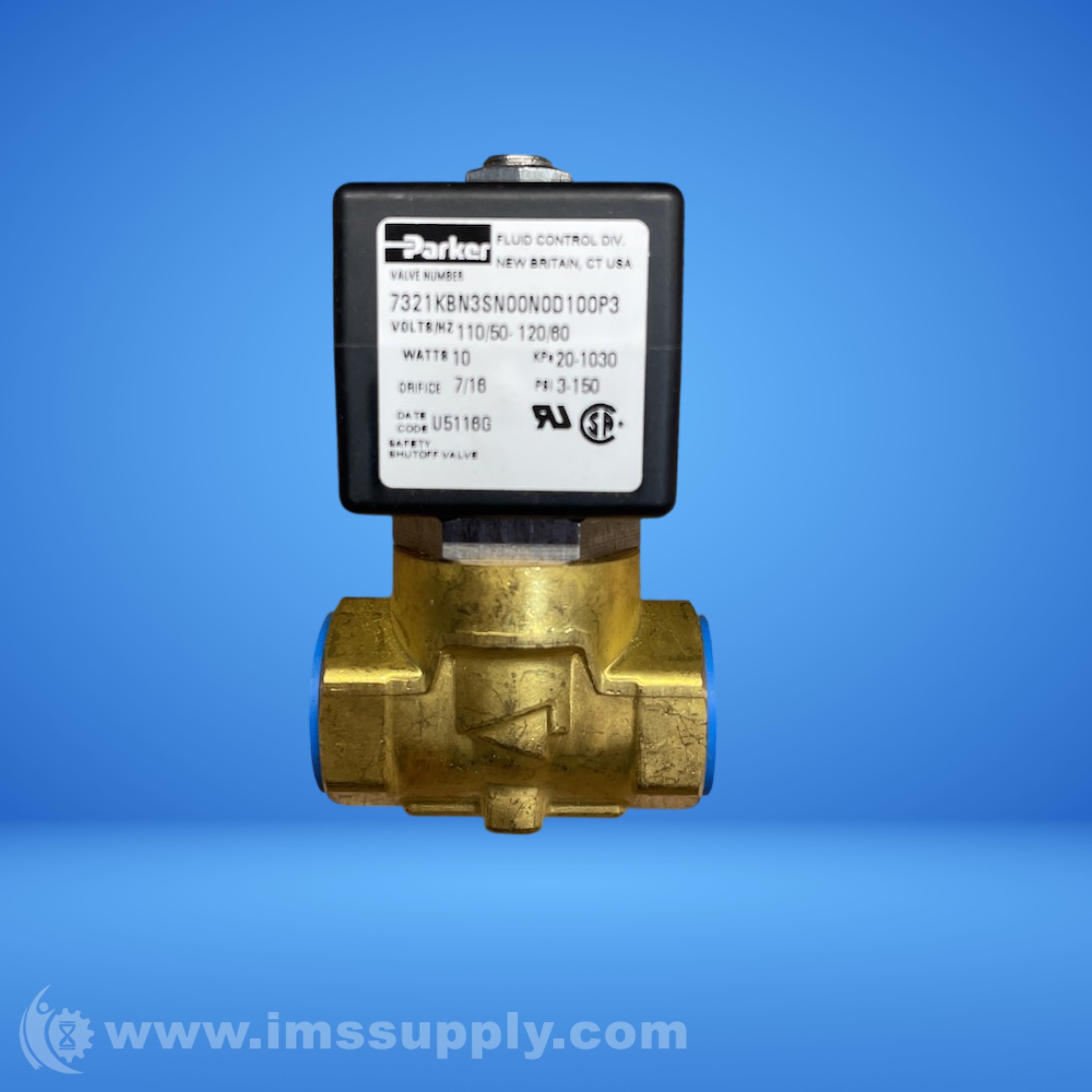

PARKER 7321KBN3SN00N0D100P3 2-WAY BRASS SOLENOID VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 7321KBN3SN00N0D100P3
IMS Product Code: 2166491
Packaging: Sold Individually
Description:
Parker 7321KBN3SN00N0D100P3 2-Way Brass Solenoid Valve
2-Way Normally Closed brass solenoid valve with NPT ports, DIN coil, and manual actuation. Suitable for general purpose air flow control applications.
Specifications
- Orifice Size: 7/16 inch
- Port Size: 3/8 inch
- Number of Ports: 2
- Valve Type: 2-Way
- Power Consumption: 10 W (AC)
- Body Material: Brass
- Actuation Type: Manual
- Function: Normally Closed (NC)
- Coil Type: DIN Form A, Class F
- Product Series: 7000 Series
- Seal Material: NBR
- Port Type: NPT
- Media: General Purpose for Air
- Maximum Fluid Temperature: 185 F
- Minimum Pressure Differential: 0 psi
- Maximum Pressure Differential: 150 psi (AC)
- Minimum Fluid Temperature: 0 F
- Input Voltage: 110/50-120/60
- Flow Coefficient: 2.5 Cv
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 10 minutes.
