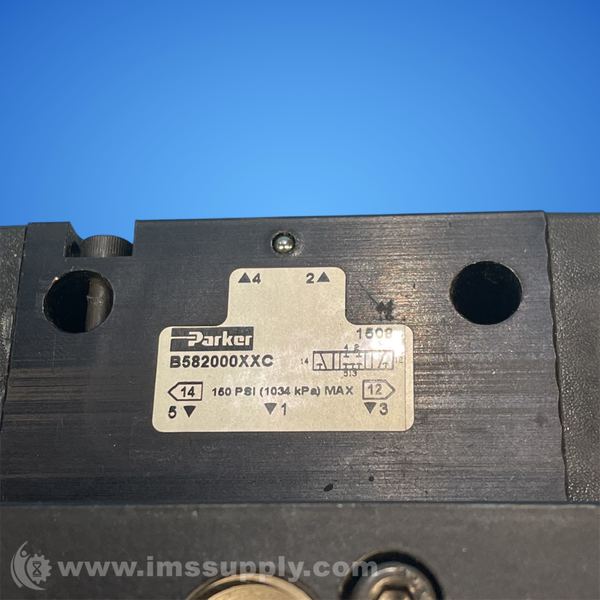

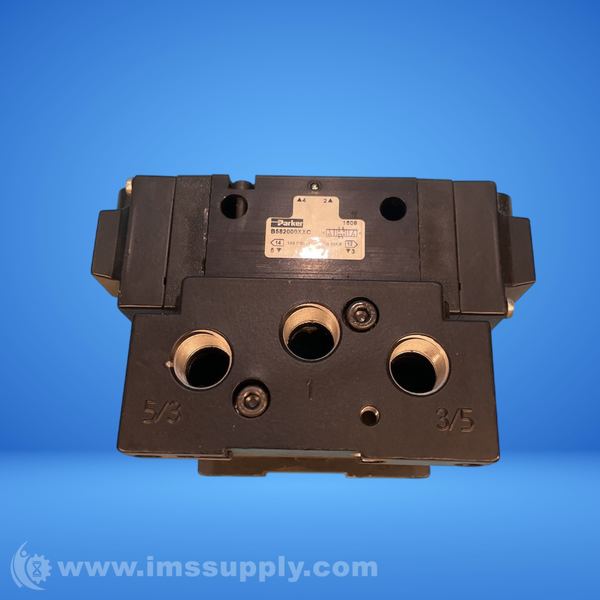

PARKER B582000XXC 4-WAY 3-POSITION VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: B582000XXC
IMS Product Code: 2159349
Packaging: Sold Individually
Description:
Parker B582000XXC 4-Way 3-Position Valve
Pneumatic inline valve with double air piloted operation and spring return. 3/8 NPT ports, all ports blocked center condition.
Specifications
- Port: 3/8 NPT
- CV Factor: 1.1
- Operator Type: Air Piloted
- Offset Return Type: Spring Return
- Center Condition: All Ports Blocked
- Series: B
- Pneumatic Valve Type: Inline Valve
- Valve Passages: 4-way
- Valve Positions: 3-position
- Supply Pressure Range: Vacuum to 145 PSIG (Vacuum to 10 bar)
- Operating Temperature: -15°C to 49°C (5°F to 120°F)
- Weight: 2.00 LBS
