PARKER H3-63 HYDRAULIC QUICK COUPLER
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: H3-63
IMS Product Code: 991191
Packaging: Sold Individually
Description:

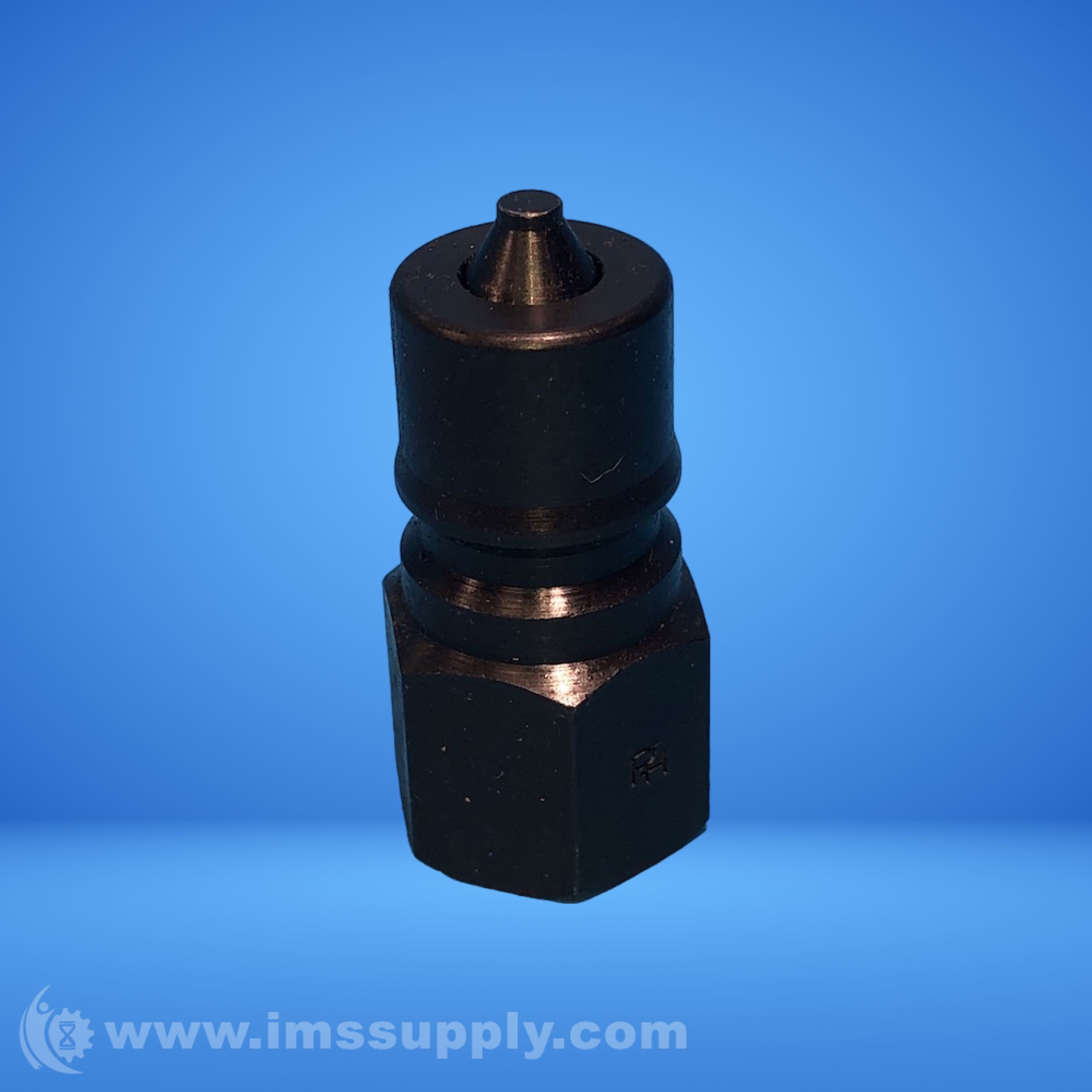

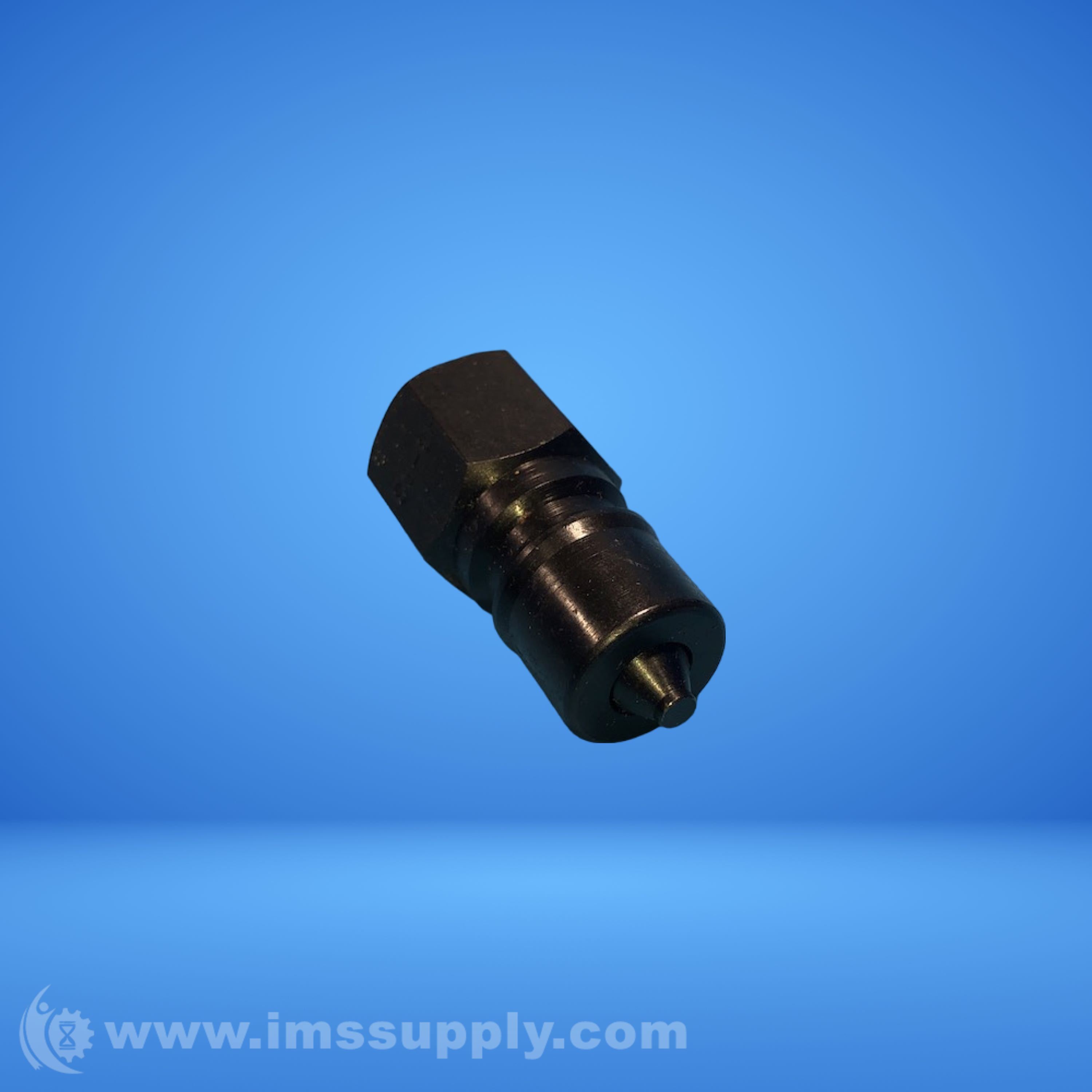

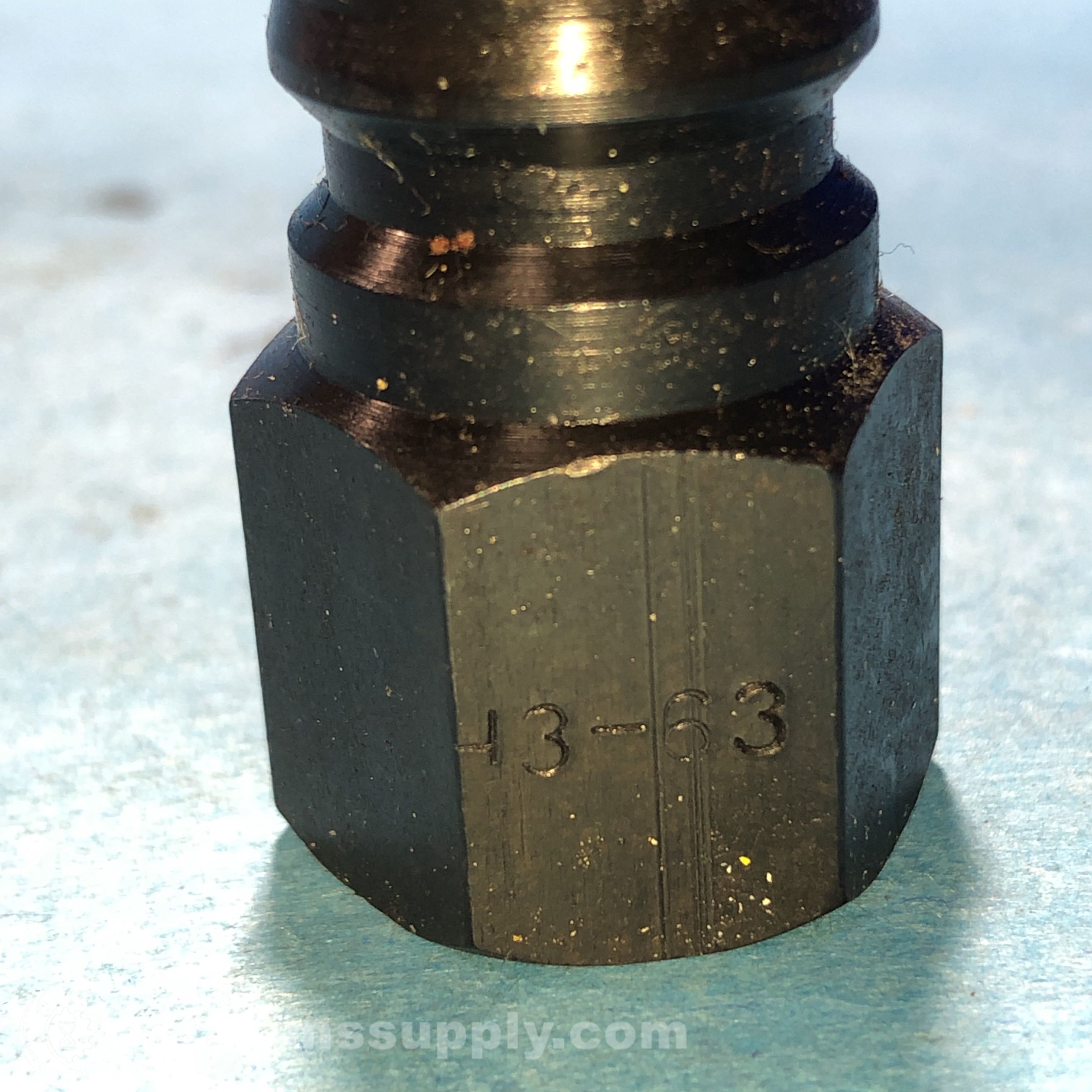

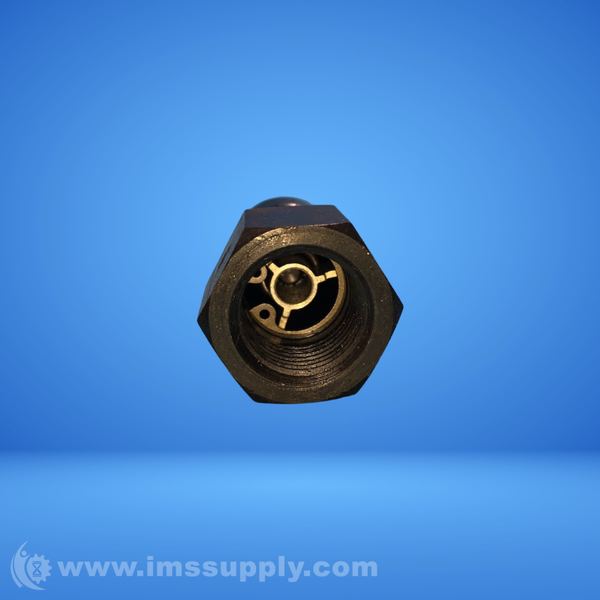

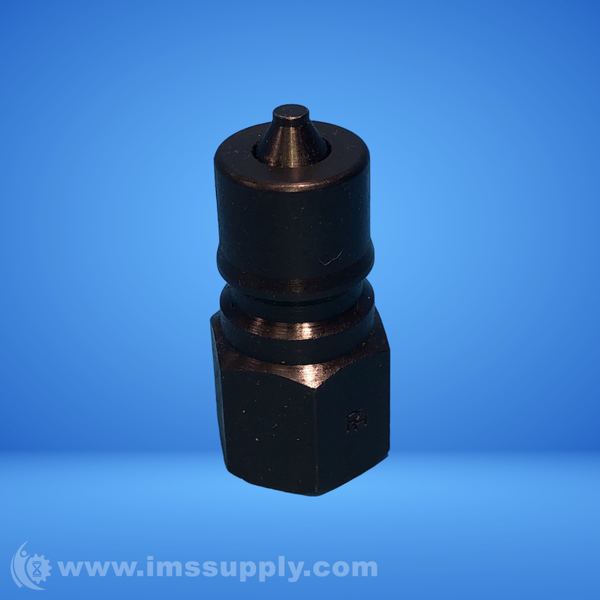

Parker H3-63 Hydraulic Quick Coupler
Manual connect hydraulic quick coupler with poppet valve, steel body, and nitrile seal. 3/8 NPT female connection.
Specifications
- Minimum Operating Temperature: -40 degrees C
- Maximum Operating Temperature: 121 degrees C
- Maximum Operating Pressure: 4000 PSI
- Flow Rate: 23 L/min
- Vacuum Pressure Rating: 27.4 Inch-Hg
- Body Material: Steel
- Valve Material: Steel
- Seal Material: Nitrile
- Connection Type: Female NPTF
- Coupling Half: Male Nipple
- Hex Size: 0.88 inch
- Body Size: 3/8 inch
- Connection Thread Size: 3/8 - 18
- Plating Type: Zinc with clear trivalent chromate
- Specifications Met: ISO 7241-1 Series B
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
