Quick Overview

Manufactured By: PARKER
Manufacturer Part Number: H6-62
IMS Product Code: 991199
Packaging: Sold Individually

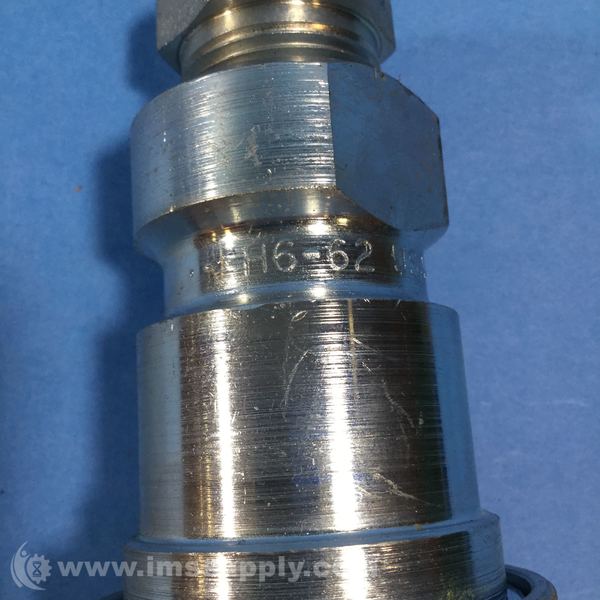

Parker H6-62 Coupler Body, 3/4-14, 3/4 In. Body, Steel


  • Standards: ISO 7241-1 Series B
  • Coupler Interchange Type: ISO 7241-1 Series B
  • Coupler Body Material: Steel
  • Coupler Body Size: 3/4"
  • Includes: Sleeve-Lock, Valve Actuator
  • Steam    Sleeve Material: Steel
  • Bearing Material: Stainless Steel
  • Valve Design: Poppet
  • Coupler Flow Rate: 28.0 gpm
  • Locking Mechanism: Ball
  • Coupler Thread Size: 3/4"-14    I
  • tem: Hydraulic Coupler Body
  • Connection Type: FNPT
  • Max. Pressure: 2500 psi
  • Coupler Connection Type: FNPT
  • For Use With: ISO 7241-1 Series B Nipple
  • Quick Coupler Type: Hydraulic Coupler Body
  • Parker Interchange: H6-62
  • Coupler Finish: Zinc Plated
  • Series: Parker 60 Series
  • Seal Material: Buna
  • Shut Off: double
  • Operating Temp. Range: -40 Degrees to 250 Degrees F

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Parker. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
