PARKER H6-63 STEEL NIPPLE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: H6-63
IMS Product Code: 1769849
Packaging: Sold Individually
Description:

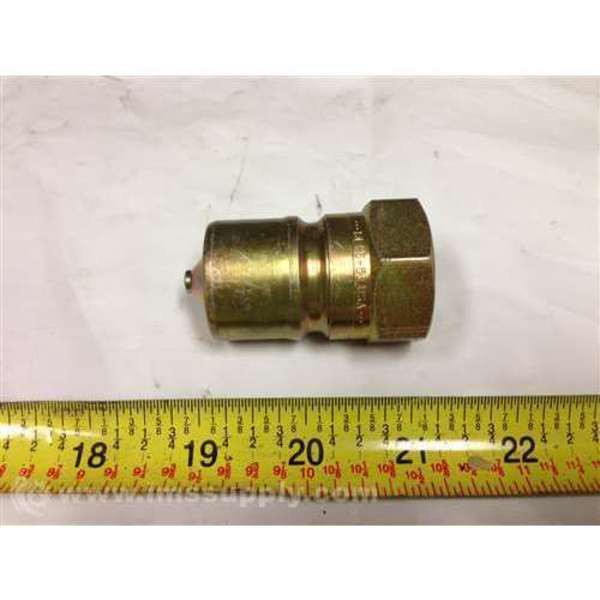

Parker H6-63 Steel Nipple
Parker's 60 Series Quick Couplers are high-performance, general-purpose hydraulic connectors engineered for demanding applications involving hydraulic fluids, steam, gases, and other industrial media. Rated for pressures up to 5000 PSI, these couplings are designed to maximize reliability and efficiency across a wide range of operating conditions.
Specifications
- Body Material: Steel
- Body Size: 3/4 Inch
- Connection Thread Size: 3/4 - 14
- Connection Type: NPTF
- Coupling Component: Plug
- Coupling Locking Type: Ball
- Coupling Size: 3/4 in
- Flow Rate: 106 L/min
- Hose Fitting Gender: Female
- Max Pressure Range: 2500 PSI
- Max. Flow Rate: 106 lpm
- Max. Working Pressure @ 70 F: 2,500 psi
- Maximum Operating Pressure: 2500
- Maximum Operating Temperature: 250 degrees F
- Maximum Working Pressure: 2500 psi
- Minimum Operating Temperature: -40 degrees F
- Nipple/Coupler: Nipple
- Overall Length: 2-7/16 in
- Plating Type: Zinc with clear trivalent chromate
- Seal Material: Nitrile
- Series: 60
- Specifications Met: ISO 7241-1 Series B
- Thread Size: 3/4-14 NPTF
- Vacuum Pressure Rating: 27.4 Inch-Hg
- Valve Material: Steel
- Valve Type: Poppet
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 8 hours and 4 minutes.
